Roger Technology SET BIONIK4/F Set with BIONIK4 with 4 m arm

2273,00 EUR including 23.00% VAT
Product code: #33351
Manufacturer: Roger Technology

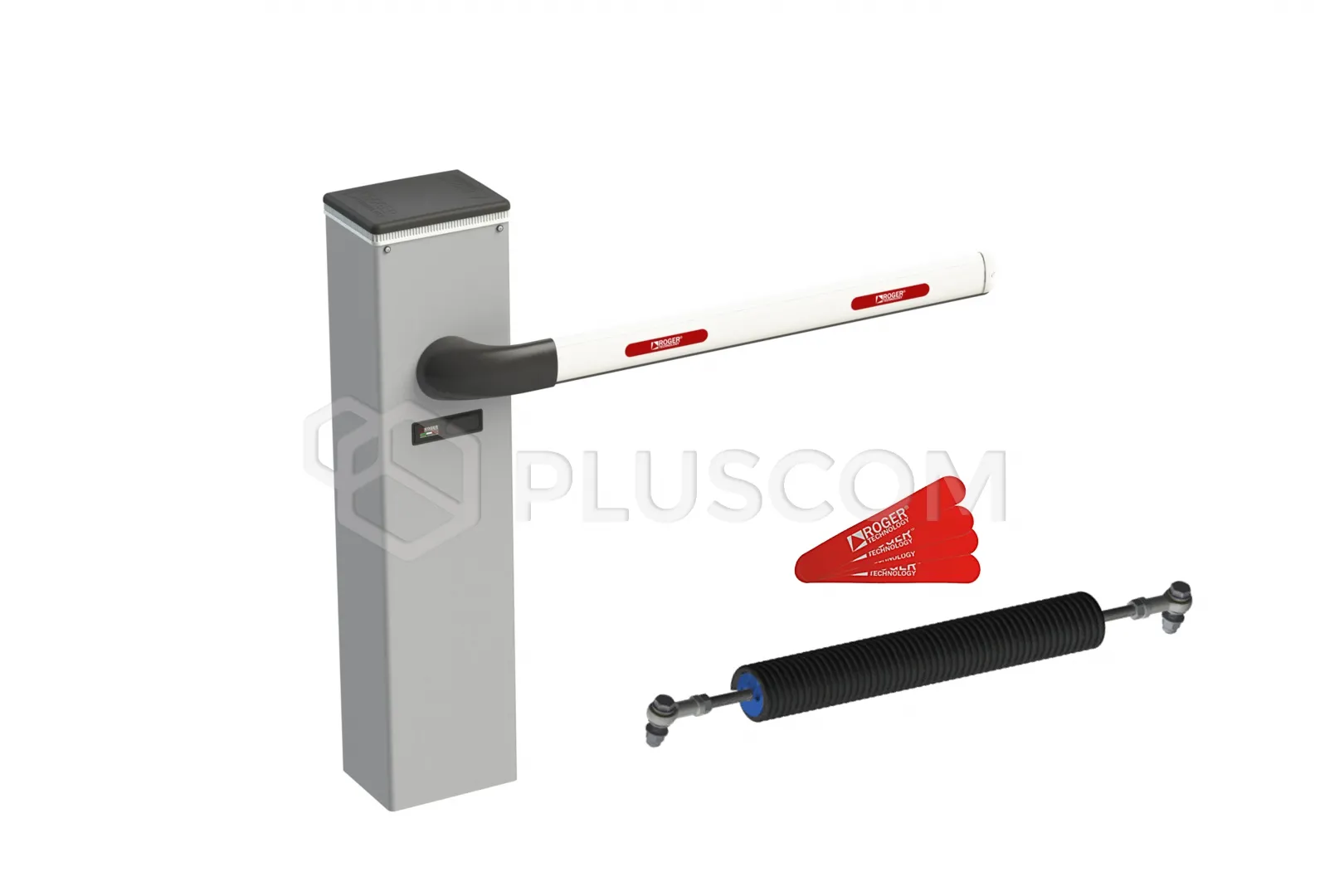

  • THE KIT:
  • BI/004 - Electromechanical barrier column
  • SP/61/01 - Blue spring with a diameter of 61 mm
  • BA/68/4 - Elliptical aluminum arm 4m
  • R99/BASB20 - Reflective stickers (20 pcs.)
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
52,62 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology BARK/02 Painted aluminum ladder, 2m Roger Technology BAMS/01 Movable arm support Roger Technology BAFS/05 Fixed support with height adjustment and electromagnet Roger Technology BAFS/04 Fixed support with height adjustment and adaptation to a gate valve Roger Technology BAFS/02 Fixed support with height adjustment Roger Technology Two-chamber LED 24V semaphore Roger Technology BAFS/01 Fixed support Roger Technology G90/F4ES Complete set of photocells for BIONIK barriers Roger Technology ALED/4C LED lighting for the 4 m arm Roger Technology G90/F2ES Complete set of photocells for BIONIK barriers

Roger Technology SET BIONIK4F automatic barrier set with motor brushless 36V and 4m arm


SET INCLUDES
Roger Technology SET BIONIK4F Set with BIONIK4 with 4 m arm

Roger Technology SET BIONIK4F Set with BIONIK4 with 4 m arm
The barrier guarantees intensive work cycles and a frame can be installed on it up to 4m. It is equipped with a CTRL control unit, native encoder, and lighting LED columns, mounting base with anchoring elements and flanges for arm mounting.

BRUSHLESS 36V digital motor with constant magnetic field and digital encoder SENSORED, allows you to use the barrier without any limits extremely low energy consumption.
An innovative and precise encoder mounted on the reducer shaft makes it possible managing arm movement with accuracy down to the tenth of a degree angle. It also allows the barrier to operate without being restarted after power return or manual release.

To ensure the durability of the entire barrier and high stability during maneuvers, steel and bronze were used, which are of the highest quality. Windproof aluminum frame with elliptical and internal cross-section ribs additionally increase stability. Housing made of carbon steel protected against corrosion and painted.

SPECIAL FEATURES:
  • 36V brushless motor
  • Super intensive use
  • Continuous use 5000 cycles per day
  • Avg. failure-free operation time 5,000,000 cycles (MCBF)
  • Metal alloy gear, no plastic, no Teflon, no nylon
  • Low energy consumption
  • Very quiet operation
  • LED lighting of the column and arm
  • Strong construction
  • Aluminum arm
The barrier is equipped with an aluminum elliptical frame BA/68/4 4m long, with LED lighting profile and protective rubber
It is made of aluminum, which guarantees resistance to mechanical damage and wear, smooth operation and has a protective rubber.
We can equip them with additional accessories such as warning stickers, ladders and supports.

The SET BIONIK4F set includes a blue SP/61/01 balancing spring with a diameter of 61 mm dedicated to the 4m arm.

TECHNICAL PARAMETERS OF THE BARRIER
  • Power supply: 230 Vac - 50 Hz, +/-10%
  • Motor power supply: 36V
  • Motor current consumption: 0A - 15A
  • Power: 220W
  • Force: 200 Nm
  • 90° opening speed: 6 seconds
  • Control system: encoder
  • Frequency of use: continuous
  • Number of cycles per day: 5000
  • Control panel: CTRL
  • Arm: max. 4 m
  • Declutch system: key
  • Protection rating: IP54
  • Operating temperature: - 20°C/+ 55°C
  • Dimensions: 310x287x1203mm
TECHNICAL PARAMETERS OF THE CTRL CONTROL UNIT
  • Power supply: 230V AC, 60 Hz
  • Motor power supply: 36 Vac
  • Accessory power supply: 24 V
  • Warning lamp: 24V, 5W
  • Electric lock: 15V, 5-10W
  • Operating temperature: - 20°C/+ 55°C
  • Dimensions of the control panel: 166x150x48mm
