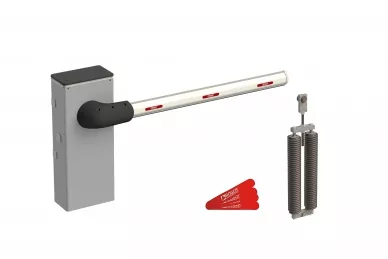

Roger Technology SET BIONIK8F Set with BIONIK8 with 8m arm

Roger Technology SET BIONIK8F Set BIONIK8 automatic barrier with a 36V brushless motor and an arm 8m

SET INCLUDES Roger Technology BI/008 Electromechanical brushless barrier column 36V Roger Technology SP/85/AS/02 Set of two gray springs with a diameter of 85 mm x 2 pcs Roger Technology BA/128/4 Elliptical aluminum arm, 4 m long x 2 pcs Roger Technology JNT/BA/128 Aluminum connector for arms x 2 pcs Roger Technology R99/BASB20 Reflective stickers (20 pcs.) - 2 sets

Roger Technology SET BIONIK8F Set with BIONIK8 with 8m arm

The barrier guarantees intensive work cycles and can be installed on it ramoin up to 8m. It is equipped with a CTRL control unit, a digital encoder, LED lighting of the column, mounting base with anchoring elements and incl double conical arm holder, made of cast aluminum.

BRUSHLESS 36V digital motor with constant magnetic field and digital encoder SENSORED, allows you to use the barrier without any limits extremely low energy consumption.
An innovative and precise encoder mounted on the reducer shaft makes it possible managing arm movement with accuracy down to the tenth of a degree angle. It also allows the barrier to operate without being restarted after power return or manual release.

To ensure the durability of the entire barrier and high stability during maneuvers, steel and bronze were used, which are of the highest quality. Windproof aluminum frame with elliptical and internal cross-section ribs additionally increase stability.
Cast aluminum double conical handle, holds perfectly and secures the arm. it is directly connected to the reducer via system 3 internal flanges, which allows for safe and reliable movement of the arm.

SPECIAL FEATURES:

• 36V brushless motor
• Super intensive use
• Continuous use 2500 cycles per day
• Avg. failure-free operation time 10,000,000 cycles (MCBF)
• Metal alloy gear, no plastic, no Teflon, no nylon
• Low energy consumption
• Very quiet operation
• LED lighting of the column and arm
• Strong construction
• Aluminum arm

The barrier is equipped with two aluminum elliptical arms BA/128/4 o 4 m long, with LED lighting profile and protective rubber (2 pcs) and in JNT/BA/128 arm connector (2 pcs).
The arm is made of aluminum, which guarantees mechanical resistance damage and wear, as well as smooth operation and has a protective rubber.
We can equip them with additional accessories such as warning stickers, ladders and supports.

SET BIONIK8F is equipped with a set of two gray springs SP/85/AS/02 with 85mm diameter dedicated to 8m arm.

---
