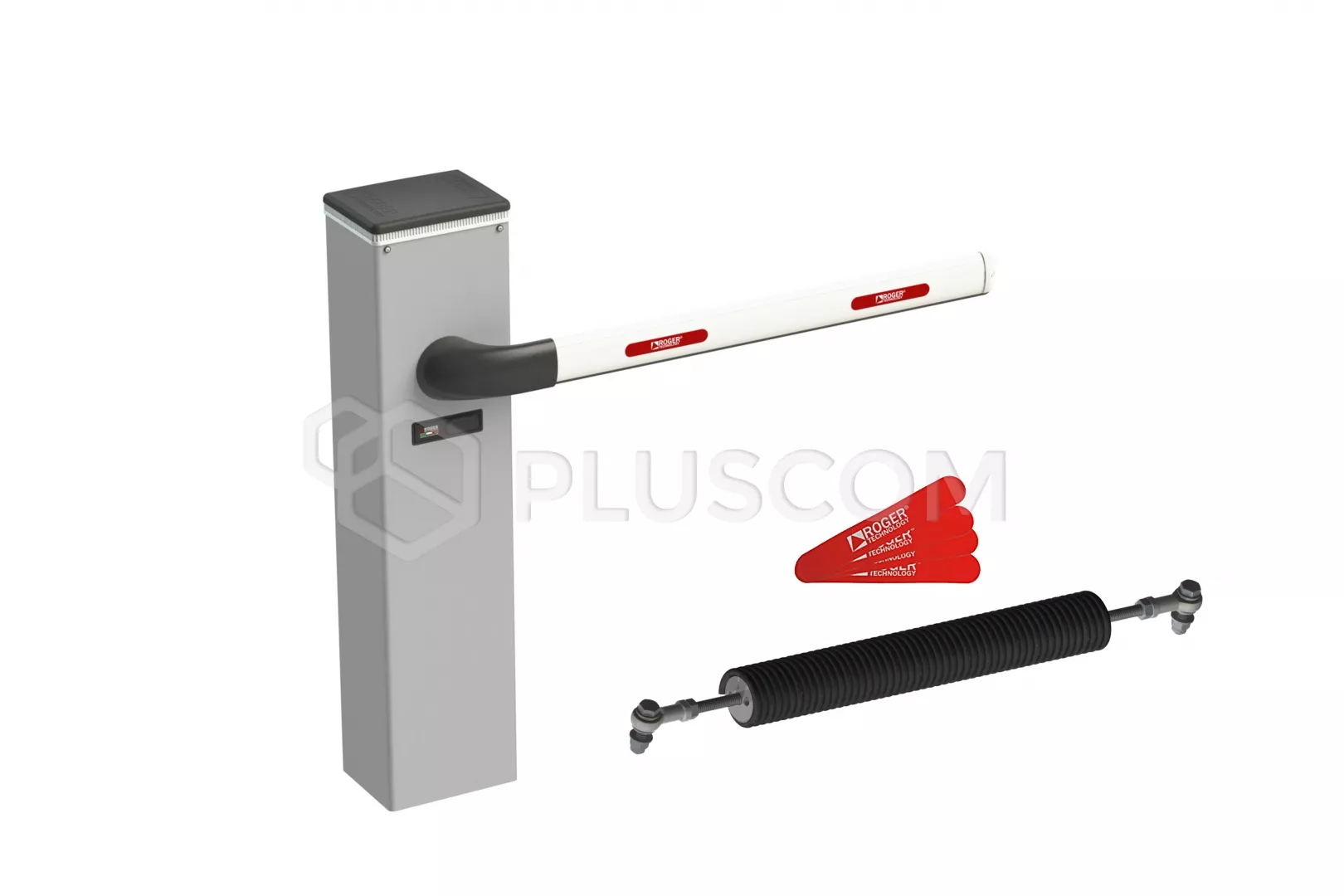

Roger Technology SET BIONIK6F/7B Set with BIONIK6 with 7m arm

Roger Technology SET BIONIK6F/7B BIONIK6 automatic barrier set with motor brushless 36V and 7m arm

SET INCLUDES Roger Technology BI/006 Electromechanical brushless barrier column 36V Roger Technology SP/85/01 Gray spring with a diameter of 85 mm Roger Technology BA/91/3 Elliptical aluminum arm, 3 m long Roger Technology BA/91/4 Elliptical aluminum arm, 4 m long Roger Technology JNT/BA/91 Aluminum connector for arms Roger Technology R99/BASB20 Reflective stickers (20 pcs.)

Roger Technology SET BIONIK6F/7B Set with BIONIK6 with 7m arm

The barrier guarantees intensive work cycles and a frame can be installed on it up to 7m. It is equipped with a CTRL control unit, native encoder, and lighting LED columns, mounting base with anchoring elements and flanges for arm mounting.

BRUSHLESS 36V digital motor with constant magnetic field and digital encoder SENSORED, allows you to use the barrier without any limits extremely low energy consumption.
An innovative and precise encoder mounted on the reducer shaft makes it possible managing arm movement with accuracy down to the tenth of a degree angle. It also allows the barrier to operate without being restarted after power return or manual release.

To ensure the durability of the entire barrier and high stability during maneuvers, steel and bronze were used, which are of the highest quality. Windproof aluminum frame with elliptical and internal cross-section ribs additionally increase stability. Housing made of carbon steel protected against corrosion and painted.

SPECIAL FEATURES:

• 36V brushless motor
• Super intensive use
• Continuous use 5000 cycles per day
• Avg. failure-free operation time 5,000,000 cycles (MCBF)
• Metal alloy gear, no plastic, no Teflon, no nylon
• Low energy consumption
• Very quiet operation
• LED lighting of the column and arm
• Strong construction
• Aluminum arm

The barrier is equipped with long aluminum elliptical arms BA/91/3 3m and BA/91/4, 4m long, with LED lighting profile and protective rubber, and in JNT/BA/91 arm connector.
The arms are made of aluminum, which guarantees mechanical resistance damage and wear, as well as smooth operation and has a protective rubber.
We can equip them with additional accessories such as warning stickers, ladders and supports.

The SET BIONIK6F kit includes a yellow balancing spring SP/85/01 with a diameter of 85 mm dedicated to the 7m arm.

---
