Roger Technology SET BIONIK4F/3B Set with BIONIK4 with 3 m arm

Roger Technology SET BIONIK4F/3B BIONIK4 automatic barrier set with motor brushless 36V and 3m arm

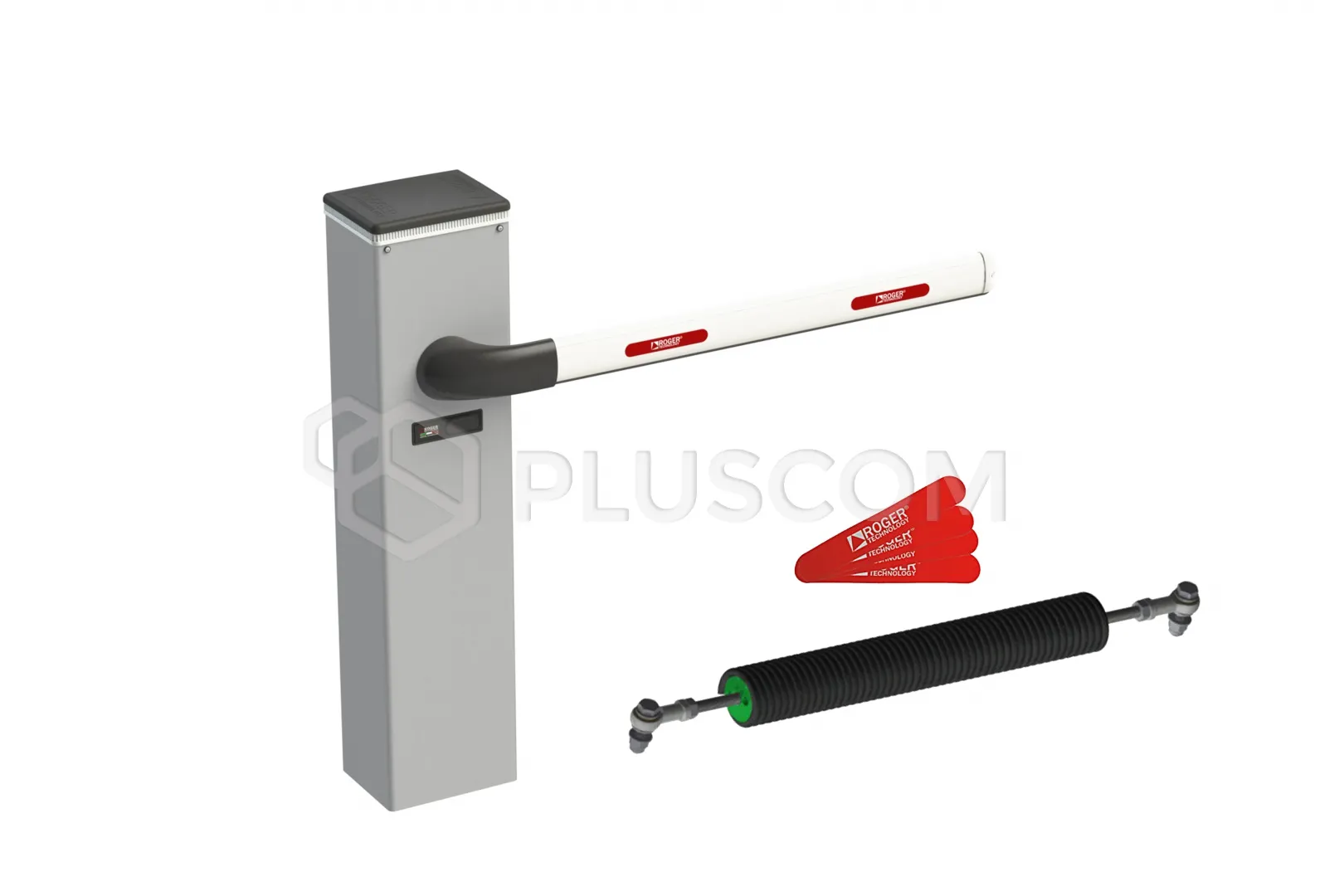

SET INCLUDES Roger Technology BI/004 Electromechanical brushless barrier column 36V Roger Technology SP/48/01 Green spring with a diameter of 48 mm Roger Technology BA/68/3 Elliptical aluminum arm 3 m Roger Technology R99/BASB20 Reflective stickers (20 pcs.)

Roger Technology SET BIONIK4F/3B Set with BIONIK4 with 3 m arm

The barrier guarantees intensive work cycles and can be installed on it 3m arm. It is equipped with a CTRL control unit, a native encoder, LED lighting of the column, mounting base with anchoring elements and incl flanges for attaching the arm.

BRUSHLESS 36V digital motor with constant magnetic field and digital encoder SENSORED, allows you to use the barrier without any limits extremely low energy consumption.
An innovative and precise encoder mounted on the reducer shaft makes it possible managing arm movement with accuracy down to the tenth of a degree angle. It also allows the barrier to operate without being restarted after power return or manual release.

To ensure the durability of the entire barrier and high stability during maneuvers, steel and bronze were used, which are of the highest quality. Windproof aluminum frame with elliptical and internal cross-section ribs additionally increase stability. Housing made of carbon steel protected against corrosion and painted.

SPECIAL FEATURES:

• 36V brushless motor
• Super intensive use
• Continuous use 5000 cycles per day
• Avg. failure-free operation time 5,000,000 cycles (MCBF)
• Metal alloy gear, no plastic, no Teflon, no nylon
• Low energy consumption
• Very quiet operation
• LED lighting of the column and arm
• Strong construction
• Aluminum arm

The barrier is equipped with an aluminum elliptical frame BA/68/3 3m long, with LED lighting profile and protective rubber
It is made of aluminum, which guarantees resistance to mechanical damage and wear, smooth operation and has a protective rubber.
We can equip them with additional accessories such as warning stickers, ladders and supports.

The SET BIONIK4F/3B set includes a blue SP/48/01 balancing spring with a diameter of 48 mm dedicated to the 3m arm.

---
