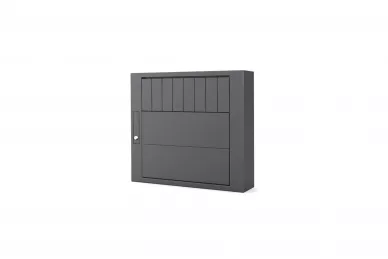

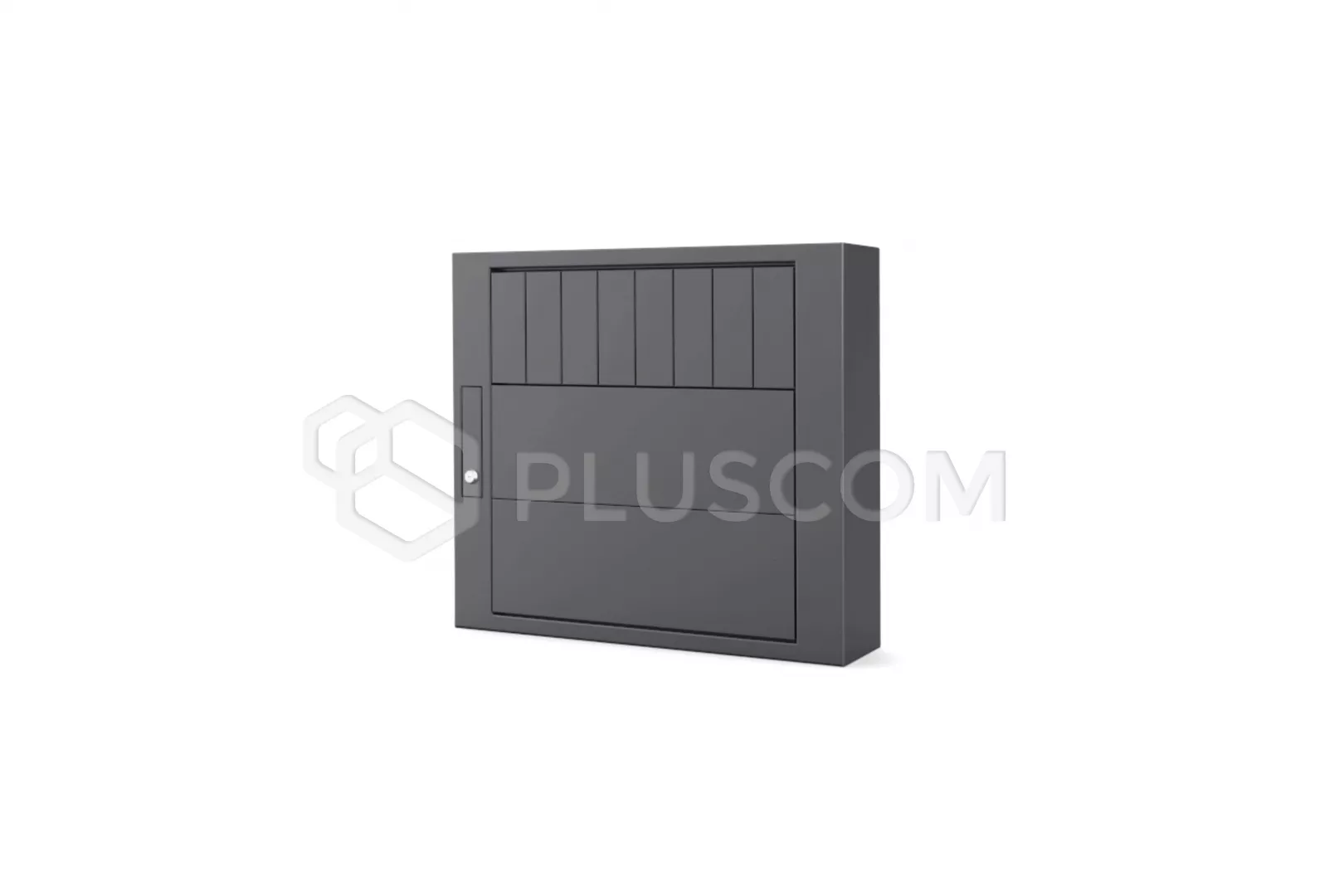

Roger RKD24CT-EXT-8 Key depository with independent locks lockers
The
RKD24CT-EXT-8 key depository is an electromechanical system distribution and
monitoring of key circulation.
Each key subject to monitoring is permanently connected to the key ring
containing a unique RFID proximity identifier. Combining the key with key fob
is made by the system user and is not required specialized equipment or
additional seals.
Version reduced to 8 slots.
Each key is stored in a separate box with a flap. Downloading the key is only
possible by authorized users and selected users time intervals. System users
are identified via proximity card and/or PIN code. Permissions determine which
keys and when can be downloaded by specific system users. Keys can be divided
on the so-called internal and external group. The key from the inner group may
be downloaded only if the user returns all previously downloaded keys from
outgroup. Keys can be reserved for a selected period. For everyone key, it is
possible to determine the maximum rental time as well as the time by when a
given key should be returned.
If necessary, the keys can be unlocked from the opening panel emergency lock,
access to which is blocked with a traditional mechanical key. The system
records events, including the time of key collection and return, as well as the
person who performed a given action.
RKD24CT-EXT-8 requires connection to the RKD24CT or RKD32 depositor.
Operation the depositor is performed using a touch-sensitive control panel with
a built-in control panel proximity reader. One control panel can support 6
depositors (RKD24CT main depositor and up to five extension depositors
RKD24CT-EXT or RKD32EXT). Users can be identified on control panel or external
reader with Wiegand or RS485 interface (Roger). In particular, it may be the
RFT1000 fingerprint reader (Roger), QR code reader (MCT84M-BK-QB) or reader
with mobile identification (MCT80M-BLE). Simple, graphic symbol-based panel
software control unit means that its use can be started after just a short time
instruction.
FEATURES:
- autonomous operation or as part of the RACS 5 access control system
- local management from the touch panel
- remote management from a web browser
- remote management via RACS access control system software 5 (VISO
application)
- 8 keys
- permanent connection of the key with the key ring without the use of
seals
- possibility of using seals connecting the key with the key ring
- mechanical key lock in pocket
- contactless identification and key presence control via MIFARE®
- proximity ID
- multi-level key access authorization system including time schedules
- limiting the number of keys downloaded by the user
- division of keys into internal and external zones
- option to download commissioned keys
- signaling that the key rental time has been exceeded
- option of quick key return without the need to identify the person who
returns it
- automatic indication of the key's location in the depository
- key reservation
- reporting user activities
- key circulation reporting
- emergency unlocking of all keys via signal external (e.g. from the fire
protection control panel)
- emergency unlocking of keys from the emergency panel
- detecting the opening of the depositor door
- detection of opening of the depositor housing (anti-sabotage)
- software integration in external systems (SDK package)
- built-in 230 VAC buffer power supply
- place for an 18 Ah battery
There is a 230V power supply and module inside the control panel housing
connection box for cabinets and space for a buffer battery (7-18 Ah). In
situation complete lack of power to the depositor, there is a possibility of
emergency release keys after connecting the power bank (with a minimum capacity
of 2A) to the USB port secured with a lockable flap located on the left side of
the housing, and then unlock the selected caches by pressing subsequent
buttons.
