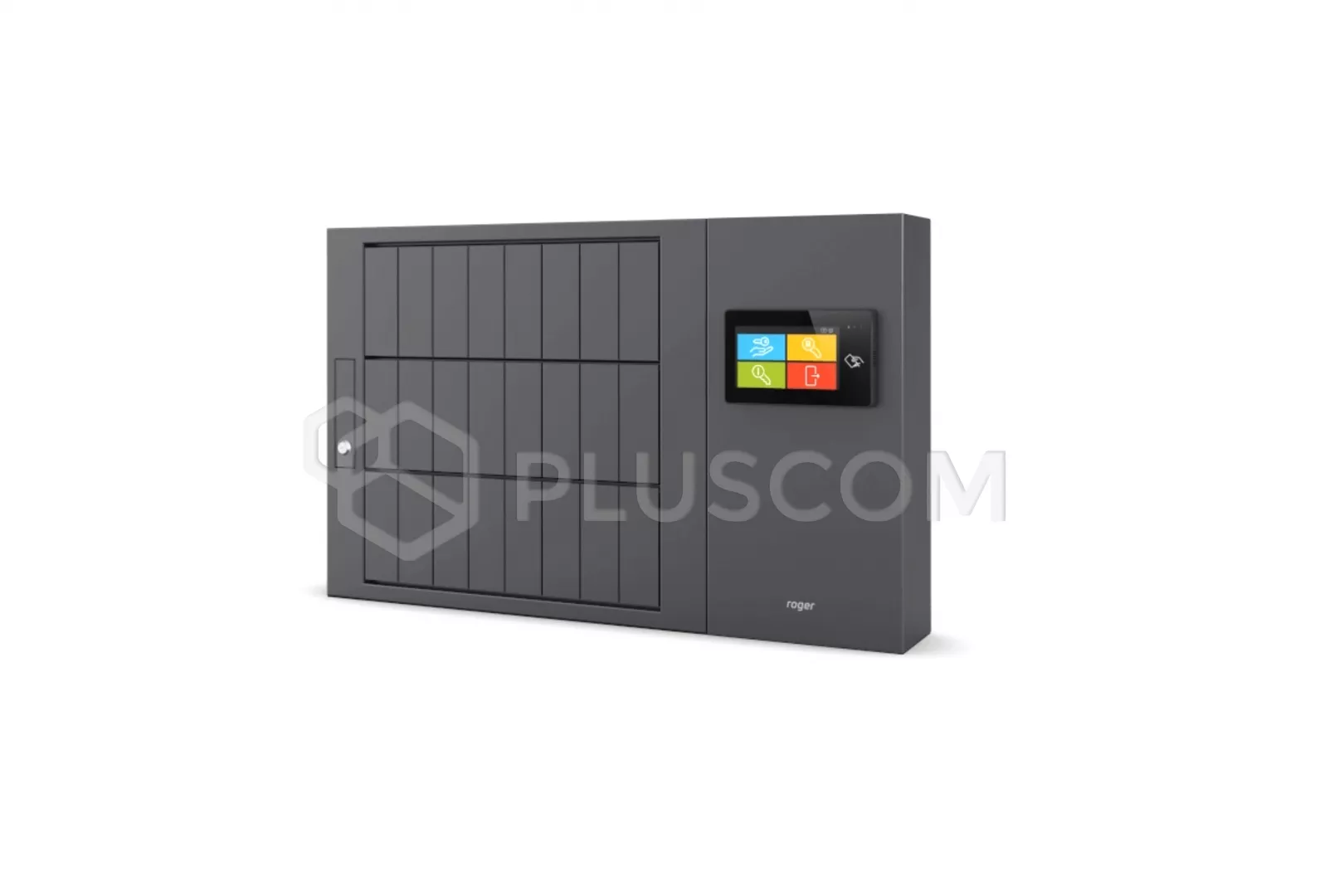

Roger RKD24CT Key deposit box with independent compartments and touchscreen
7" control panel
The RKD24CT key depository is electromechanical key
distribution and monitoring system.
Each key subject to monitoring is permanently connected to the key ring
containing a unique RFID proximity identifier. Combining the key with key fob
is made by the system user and is not required specialized equipment or
additional seals.
Each key is stored in a separate box with a flap. Downloading the key is only
possible by authorized users and selected users time intervals. System users
are identified via proximity card and/or PIN code. Permissions determine which
keys and when can be downloaded by specific system users. Keys can be divided
on the so-called internal and external group. The key from the inner group may
be downloaded only if the user returns all previously downloaded keys from
outgroup. Keys can be reserved for a selected period. For everyone key, it is
possible to determine the maximum rental time as well as the time by when a
given key should be returned.
If necessary, the keys can be unlocked from the opening panel emergency lock,
access to which is blocked with a traditional mechanical key. The system
records events, including the time of key collection and return, as well as the
person who performed a given action.
The depository is operated via a touchscreen control panel built-in proximity
reader. One control panel can support 6 depositors (main depositor RKD24CT and
up to five depositors extensions RKD24CT-EXT or RKD32EXT). User identification
can take place on the control panel or an external reader with a Wiegand
interface or RS485 (Roger). In particular, it may be a fingerprint reader
RFT1000 (Roger), QR code reader (MCT84M-BK-QB) or reader with identification
mobile (MCT80M-BLE). Simple software based on graphic symbols control panel
means that you can start using it in just a short time instruction.
FEATURES:
- autonomous operation or as part of the RACS 5 access control system
- local management from the touch panel
- remote management from a web browser
- remote management via RACS 5 access control system software (VISO
application)
- graphic touch panel with a 7" screen
- built-in 13.56 MHz MIFARE® and EM 125 kHz proximity reader
- support for MIFARE® card encrypted sectors
- possibility to connect an external reader with Wiegand interface
- possibility to connect an external reader with the RS485 Roger
interface
- touch keyboard
- 24 keys in the RKD24CT main depositor
- possibility to connect 5 expansion depositors RKD24CT-EXT or
RKD32EXT
- permanent connection of the key with the key ring without the use of
seals
- possibility of using seals connecting the key with the key ring
- mechanical key lock in pocket
- contactless identification and key presence control via MIFARE® proximity
identifier
- multi-level system of access authorizations to keys, taking into account
time schedules
- limiting the number of keys downloaded by the user
- division of keys into internal and external zones
- option to download commissioned keys
- signaling that the key rental time has been exceeded
- option of quick key return without the need to identify the person
returning it
- automatic indication of the key's location in the depository
- key reservation
- reporting user activities
- key circulation reporting
- emergency unlocking of all keys via an external signal (e.g. from the
fire protection control panel)
- emergency unlocking of keys from the emergency panel
- detecting the opening of the depositor door
- detection of opening of the depositor housing (anti-sabotage)
- software integration in external systems (SDK package)
- built-in 230 VAC buffer power supply
- place for an 18 Ah battery
Inside the control panel housing there is a 230V power supply, a cabinet
connection module and a place for a buffer battery (7-18 Ah). In the event of a
complete lack of power to the depository, it is possible to release the keys in
an emergency connecting the power bank (with a minimum capacity of 2A) to the
USB socket secured with a flap closed key located on the left side of the
housing, and then unlock the selected compartments by pressing the next ones
buttons.
