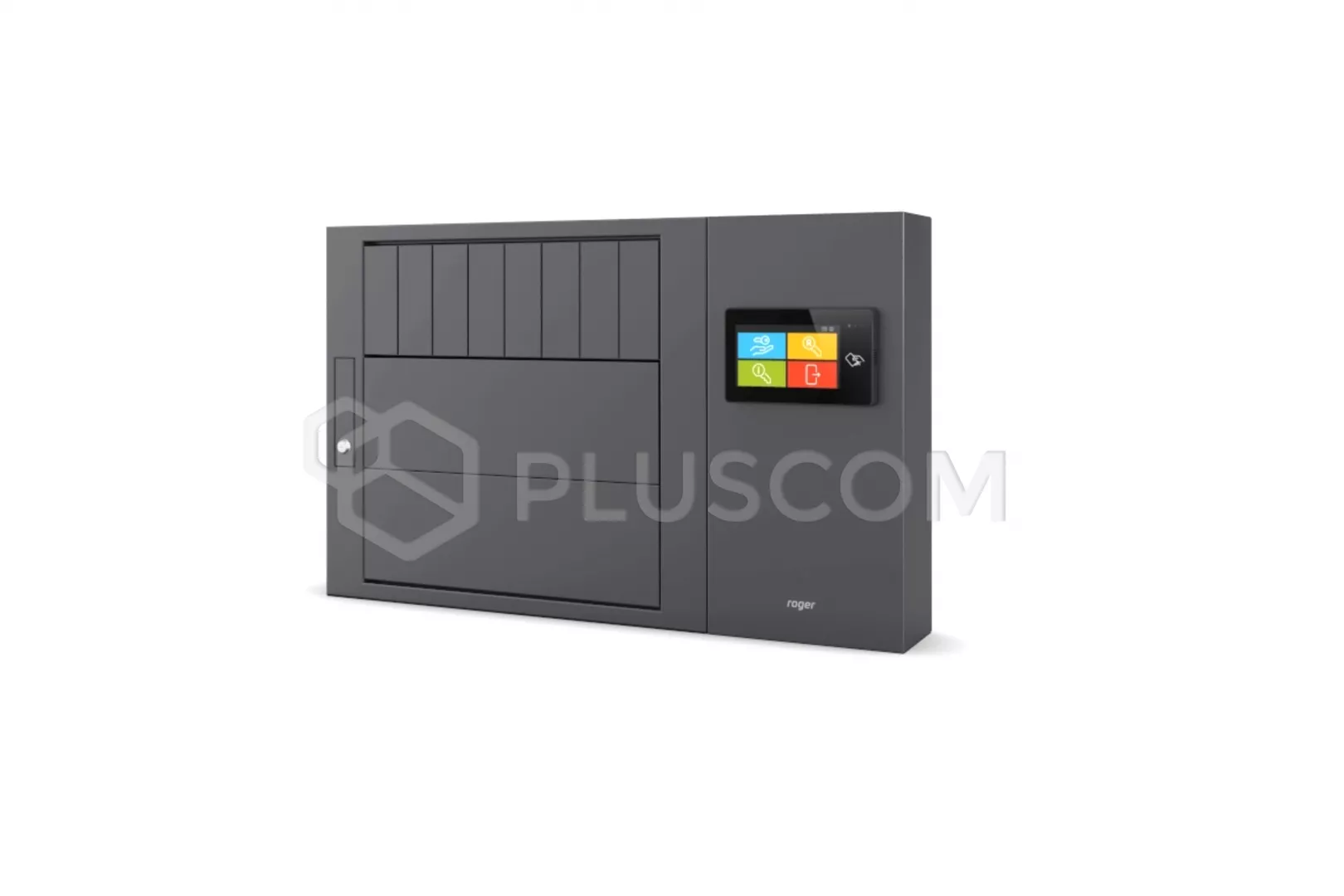

Roger RKD24CT-8 Key deposit box with 8 independent compartments and
touchscreen 7" control panel
The RKD24CT-8 key depository is an
electromechanical key distribution and monitoring system.
Each key subject to monitoring is permanently connected to the key ring
containing a unique RFID proximity identifier. Combining the key with key fob
is made by the system user and is not required specialized equipment or
additional seals.
Each key is stored in a separate box with a flap. Downloading the key is only
possible by authorized users and selected users time intervals. System users
are identified via proximity card and/or PIN code. Permissions determine which
keys and when can be downloaded by specific system users. Keys can be divided
on the so-called internal and external group. The key from the inner group may
be downloaded only if the user returns all previously downloaded keys from
outgroup. Keys can be reserved for a selected period. For everyone key, it is
possible to determine the maximum rental time as well as the time by when a
given key should be returned.
If necessary, the keys can be unlocked from the opening panel emergency lock,
access to which is blocked with a traditional mechanical key. The system
records events, including the time of key collection and return, as well as the
person who performed a given action.
The depository is operated via a touchscreen control panel built-in proximity
reader. User identification can take place on the control panel or an external
reader with a Wiegand interface or RS485 (Roger). In particular, it may be a
fingerprint reader RFT1000 (Roger), QR code reader (MCT84M-BK-QB) or reader
with identification mobile (MCT80M-BLE). Simple software based on graphic
symbols control panel means that you can start using it in just a short time
instruction.
FEATURES:
- autonomous operation or as part of the RACS 5 access control system
- local management from the touch panel
- remote management from a web browser
- graphic touch panel with a 7" screen
- built-in 13.56 MHz MIFARE® and EM 125 kHz proximity reader
- support for MIFARE® card encrypted sectors
- possibility to connect an external reader with Wiegand interface
- possibility to connect an external reader with RS485 interface Roger
- touch keyboard
- 8 keys
- 8 independent caches
- permanent connection of the key with the key ring without the use of
seals
- possibility of using seals connecting the key with the key ring
- mechanical key lock in pocket
- contactless identification and key presence control via MIFARE®
- proximity ID
- multi-level key access authorization system including time schedules
- limiting the number of keys downloaded by the user
- division of keys into internal and external zones
- option to download commissioned keys
- signaling that the key rental time has been exceeded
- option of quick key return without the need to identify the person who
returns it
- automatic indication of the key's location in the depository
- key reservation
- reporting user activities
- key circulation reporting
- emergency unlocking of all keys via signal external (e.g. from the fire
protection control panel)
- emergency unlocking of keys from the emergency panel
- detecting the opening of the depositor door
- detection of opening of the depositor housing (anti-sabotage)
- software integration in external systems (SDK package)
- built-in 230 VAC buffer power supply
- place for an 18 Ah battery
There is a 230V power supply and module inside the control panel housing
connection box for cabinets and space for a buffer battery (7-18 Ah). In
situation complete lack of power to the depositor, there is a possibility of
emergency release keys after connecting the power bank (with a minimum capacity
of 2A) to the USB port secured with a lockable flap located on the left side of
the housing, and then unlock the selected caches by pressing subsequent
buttons.
