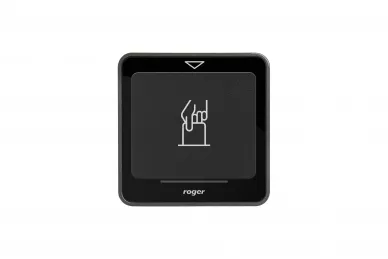

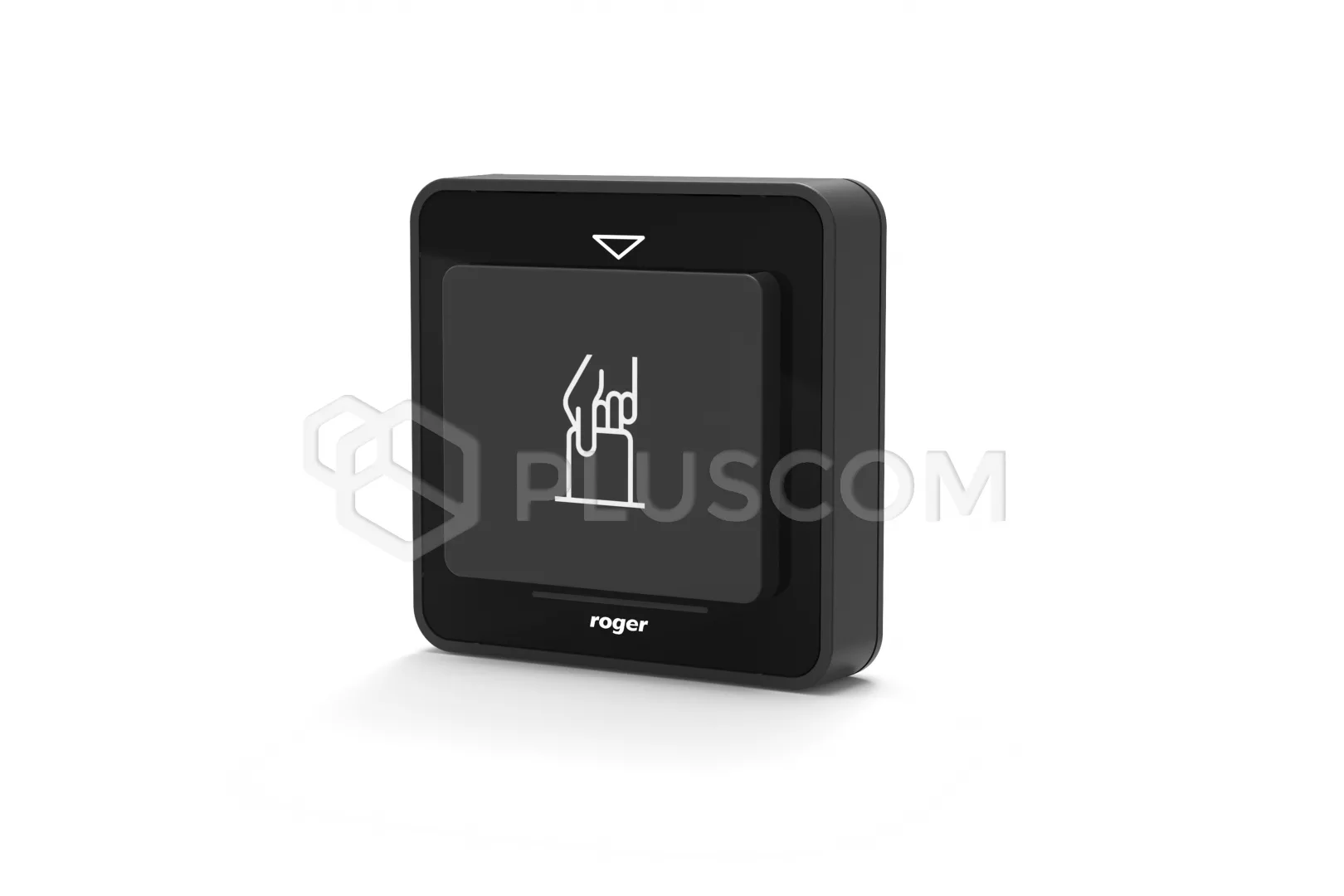

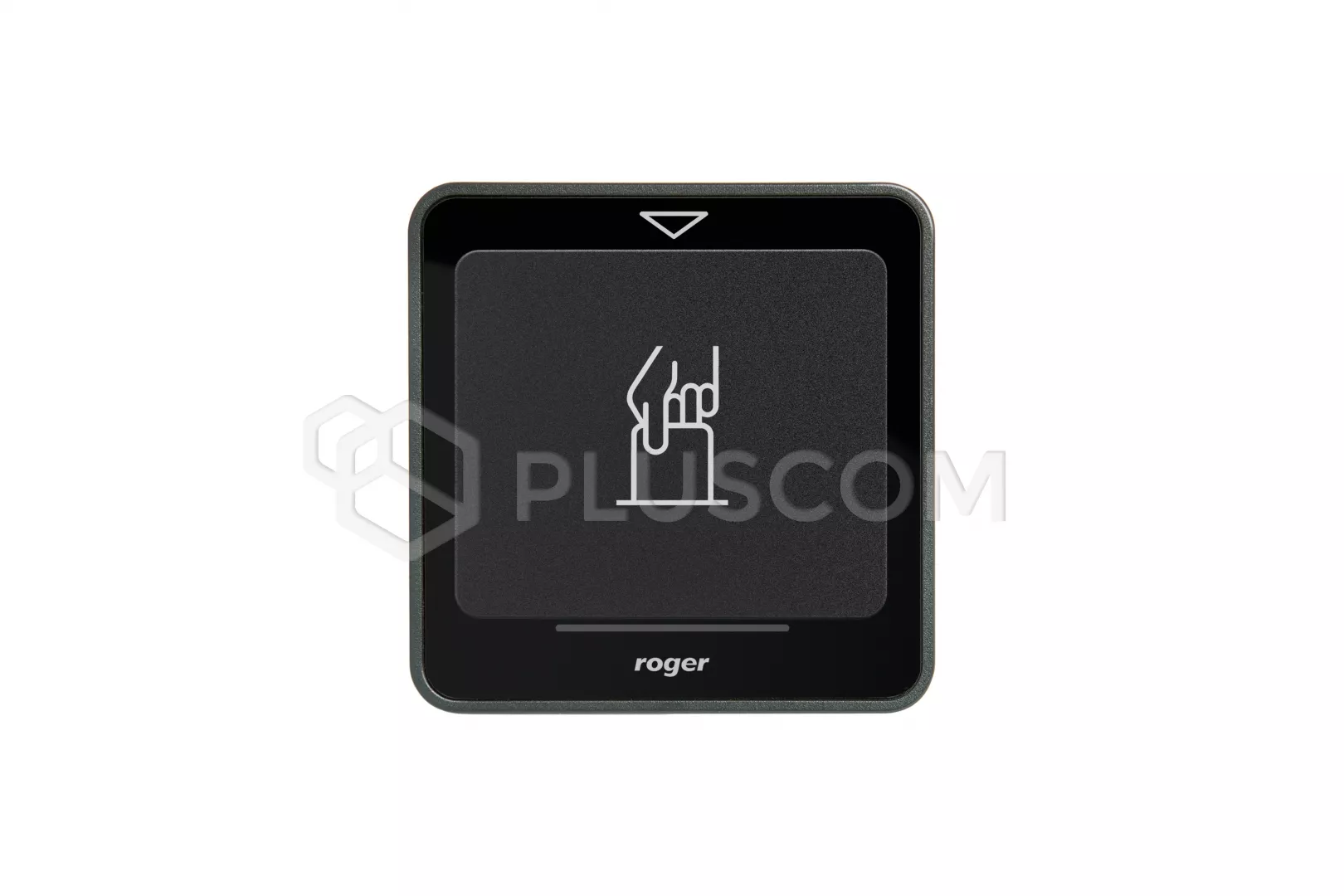

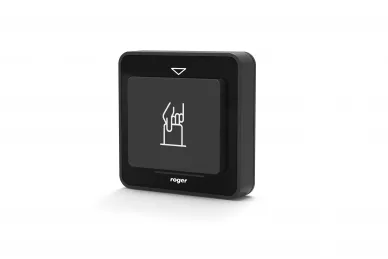

Roger PR821-CH Indoor access controller

Roger PR821-CH Indoor access controller with card holder

PR821-CH is single room/door controller used in RACS 4 access control system and it additionally offers hotel automation and intruder alarm functionalities. PR821-CH is equipped with card holder and built-in two system EM125kHz/MIFARE® reader. Peripheral devices communicating in RACS CLK/DTA format such as HRT82MF hall reader, function key panel HRT82FK and XM-2 I/O expander can be connected to the controller. Controllers can be configured with PR Master software installed on computer and they can be connected to computer by means of communication interface e.g. UT-2USB, UT-4DR, RUD-1 or by means of CPR32-NET-BRD network controller.

Features:

• power supply 12 VDCcard holder for EM 125 kHz and 13.56 MHz MIFARE® proximity cards
• connection of hall reader (HRT82MF)
• connection of function key panel (HRT82FK or HRT82PB)
• configuration and management with PR Master software
• hotel room power supply control with card in the holder
• simple control of hotel automation
• intruder alarm functions with connected door/window contacts and detectors
• RS485 communication bus
• three NO/NC inputs
• two 15 VDC/1 A transistor outputs
• single 30 V/1.5 A relay output
• tamper
• IP41

TECHNICAL DATA:

• supply voltage:
• • nominal 12VDC
  • min./max. range 10-15VDC
• average current consumption: 100mA
• proximity cards:
• • EM 125 kHz (UNIQUE) in accordance with EM4100/4102 a
  • 13.56 MHz in accordance with ISO/IEC 14443A and MIFARE
• environmental class: II
• working temperature: -10°C- +50°C
• protection class: IP41
• dimensions: 85x85x27mm
• weight: 120g
