Roger HRT82MF MIFARE Hall Reader

Roger HRT82MF MIFARE Hall Reader

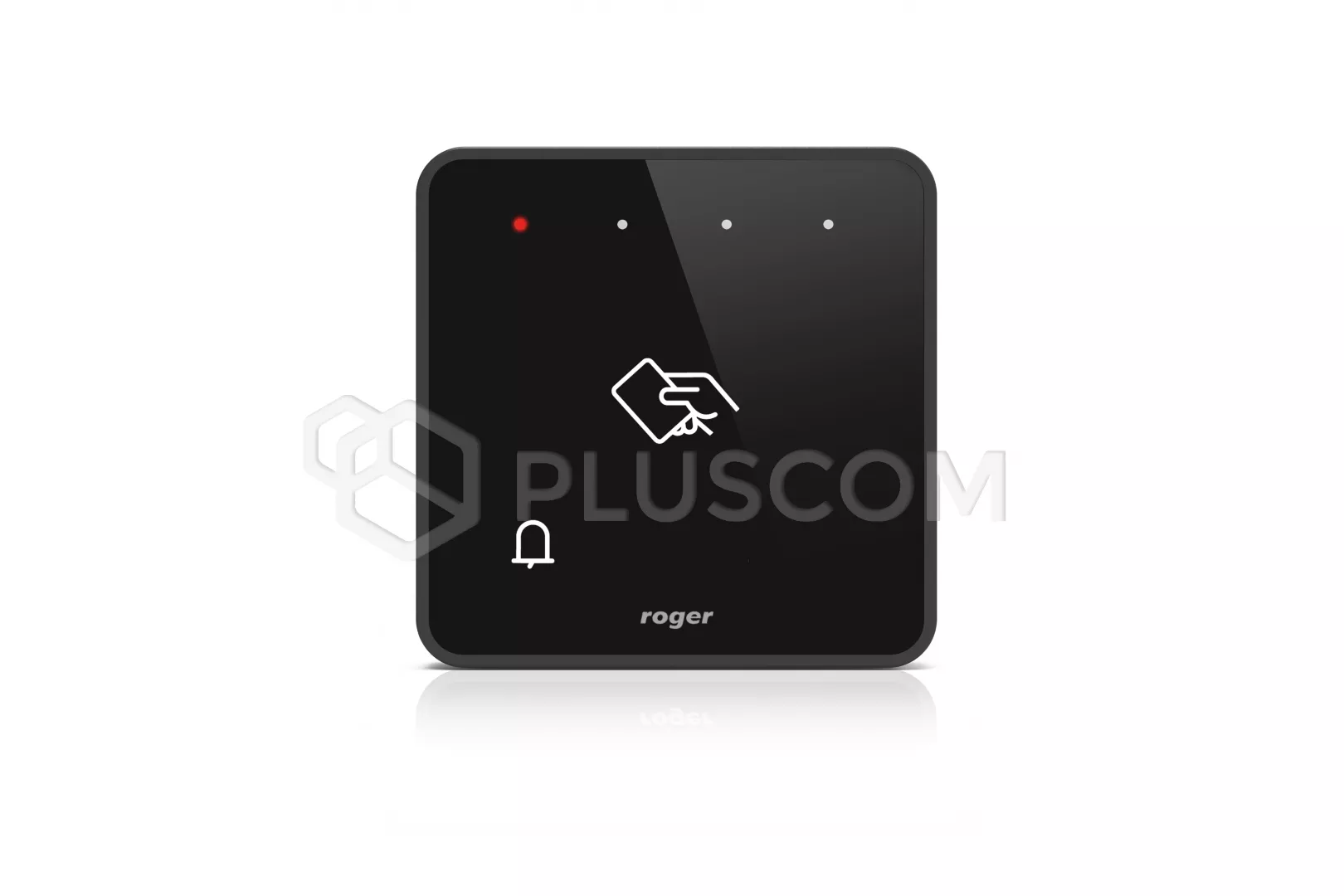

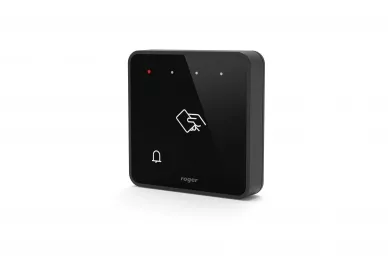

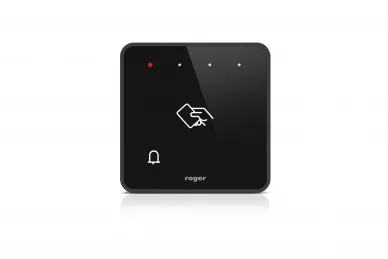

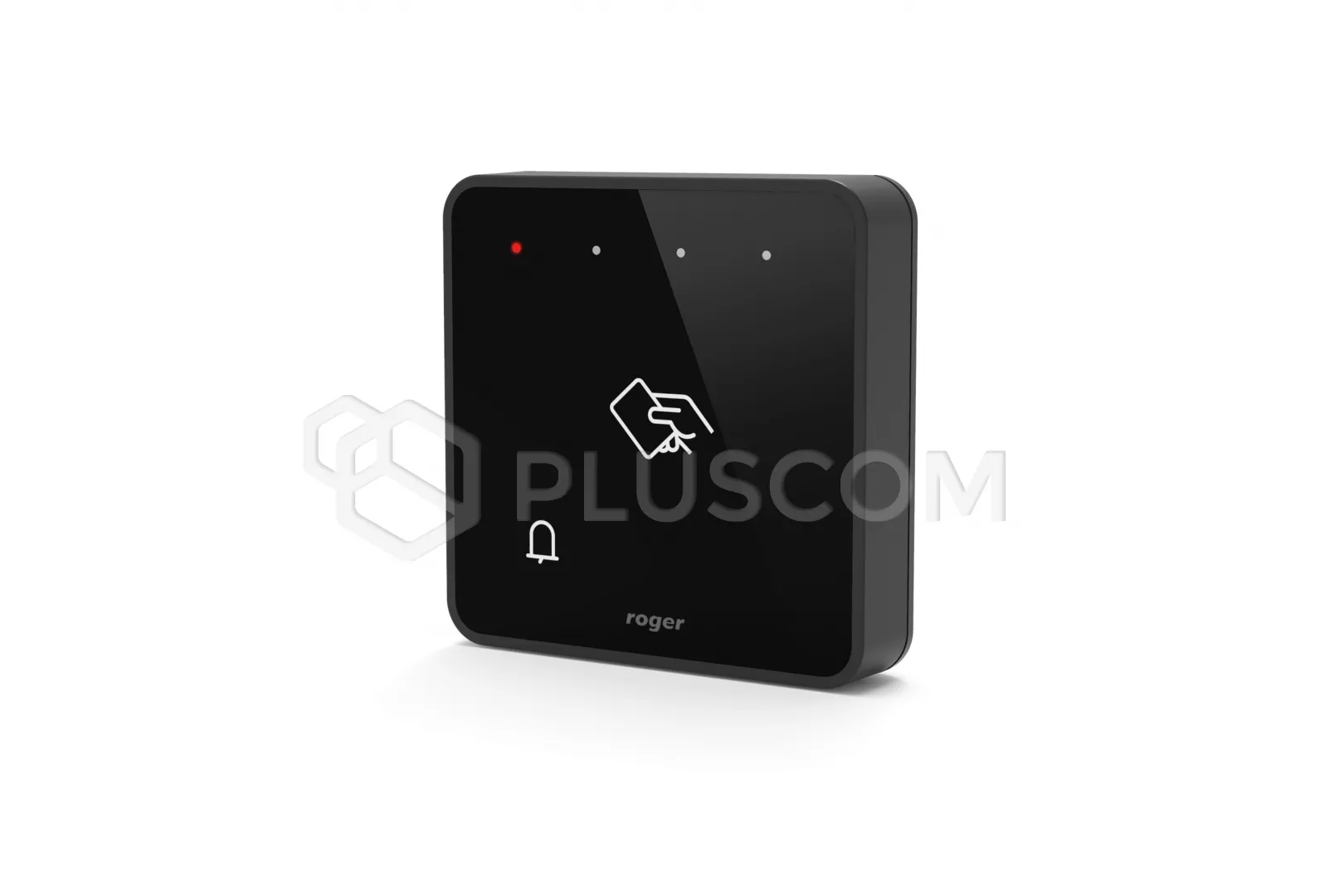

HRT82MF type proximity card reader is peripheral device used both in RACS 4 system and hotel system based on HRC series controllers. The device communicates with controller using RACS CLK/DTA bus and enables MIFARE card number reading for the purpose of user identification and access granting. The reader enables serial number (CSN) reading for such cards as MIFARE Ultralight/Classic/Plus/Desfire. Additionally it allows to read programmed card number (PCN) for MIFARE Classic cards. The front panel of HRT82MF and HRT82MF-F includes touch key and four LED indicators for signalling such hotel indications as ‘Hotel staff presence’, ‘Do not disturb’, ‘Make up room’ and ‘Assistance’. Indicators can be used for hotel functions only when the reader is connected to PR821-CH controller of RACS 4 system or to HRC controller. Other PRxx1 and PRxx2 series controllers of RACS 4 system treat the reader as standard PRT reader. In such scenario indicators are used to signal built-in function e.g. access granting. Function key is available and configurable in all possible scenarios of operation.

TECHNICAL DATA:

• Supply voltage:
• • nominal 12VDC
  • min./max. range 10-15VDC
• proximity cards: 13.56MHz in acc. with ISO14443A and MIFARE
• average current consumption: 60mA
• screw terminals
• indoor work
• environment class: II
• working temperature: -10 ° C- + 50 ° C
• protection class: IP41
• dimensions: 85x85x22mm
• weight: 100g
