Roger PR402DR-SET Access Control Set

Roger PR402DR-SET Access Control Set

The kit includes:

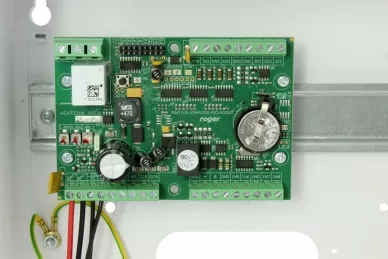

• PR402DR-BRD controller
• TRP 40/16/18 mains transformer
• ME-1 metal enclosure

PR4402DR-SET is a ready-made set for a single transition used in frames RACS access control system 4. Access control system can be managed locally via COM / USB serial ports or remotely over the network computer WAN / LAN.
It can be used in both autonomous and network installations, up to 4000 users

KEY FEATURES:

• 8 programmable inputs
• 4 programmable outputs
• 2 relay outputs 1.5 A/30 V and 5 A/30 V or 230 VAC
• programmed from PC
• RS485, RACS Clock&Data, Wiegand 26..66bit, Magstripe communication interface
• operation with RFT1000 readers
• operation with long range readers
• up to 4000 users
• up to 32 000 built-in event buffer
• up to 33 000 000 event buffer in network equipped with CPR32-NET
• real time clock with battery backup
• user groups
• access zones
• schedules
• access control in elevators (XM-8 required)
• local APB
• global APB (CPR32 required)
• interlocking
• advanced access options: two users mode, conditional access, high security mode
• operation with turnstiles
• operation with barriers
• random user inspection
• integration with T&A system (RCP Master)
• integration with intruder alarm system
• integration with CCTV system (CCTV-DVR)

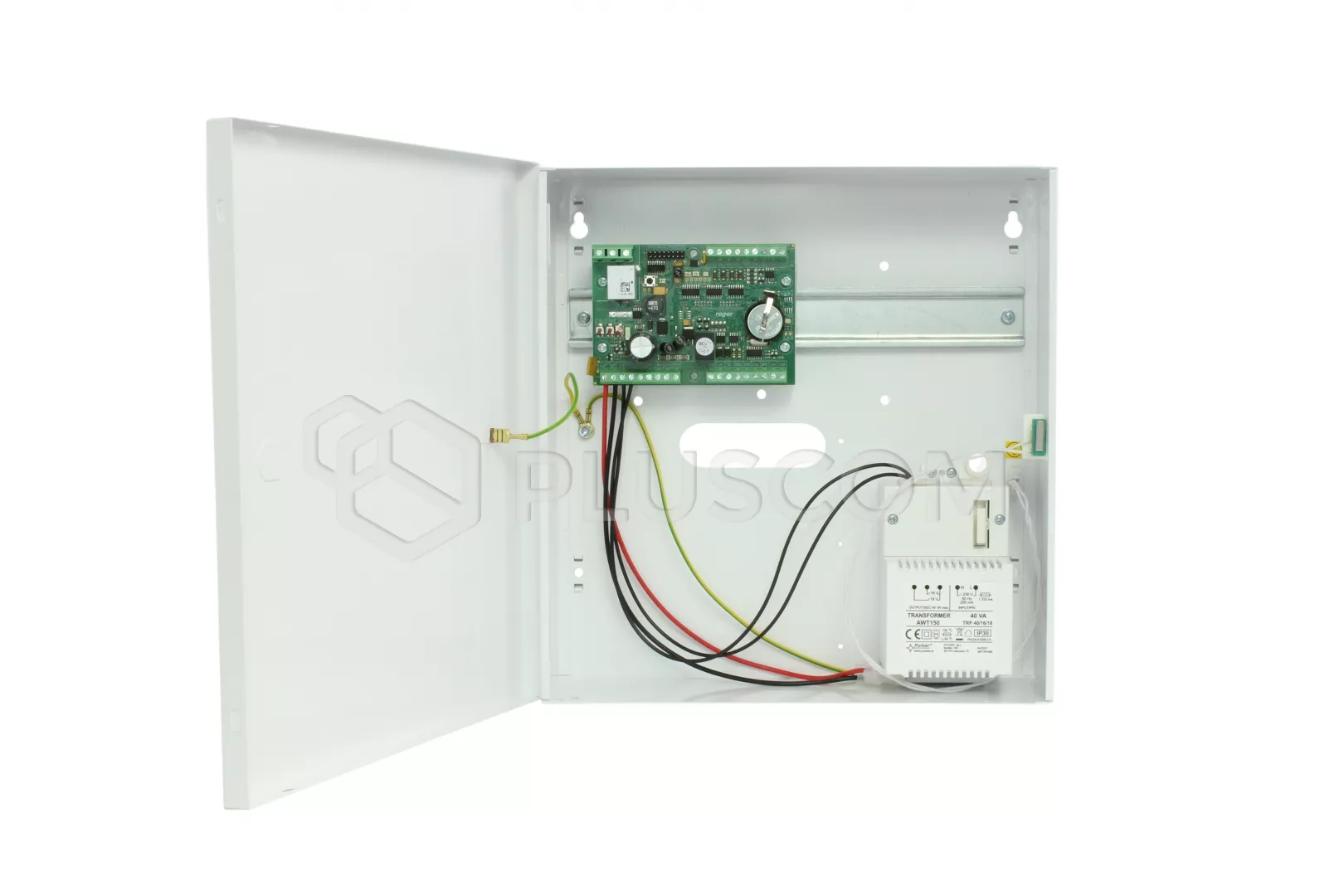

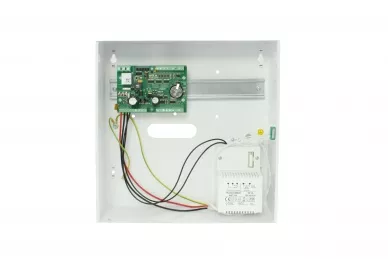

The access controller is housed in a metal housing ME-1, which has space for a 7Ah / 12V emergency battery. The metal casing is equipped with a tamper protection switch and factory-fitted TRP 40/16/18 mains transformer.

TECHNICAL DATA

• power supply: 230 VAC (+/- 15%), 50 Hz
• anti-sabotage protection (tamper)
• space for battery: 7Ah / 12V
• closing: 4 screws around the perimeter of the enclosure door
• temperature pract: + 5 ° C - + 40 ° C
• dimensions: 285.0 x 295.0 x 88.0 mm
• weight: ≈3500 g
