Roger MCX402-1-KIT Door Expander Kit

Roger MCX402-1-KIT Door Expander Kit for 1 door in the RACS 5 system

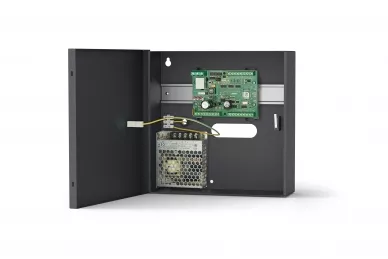

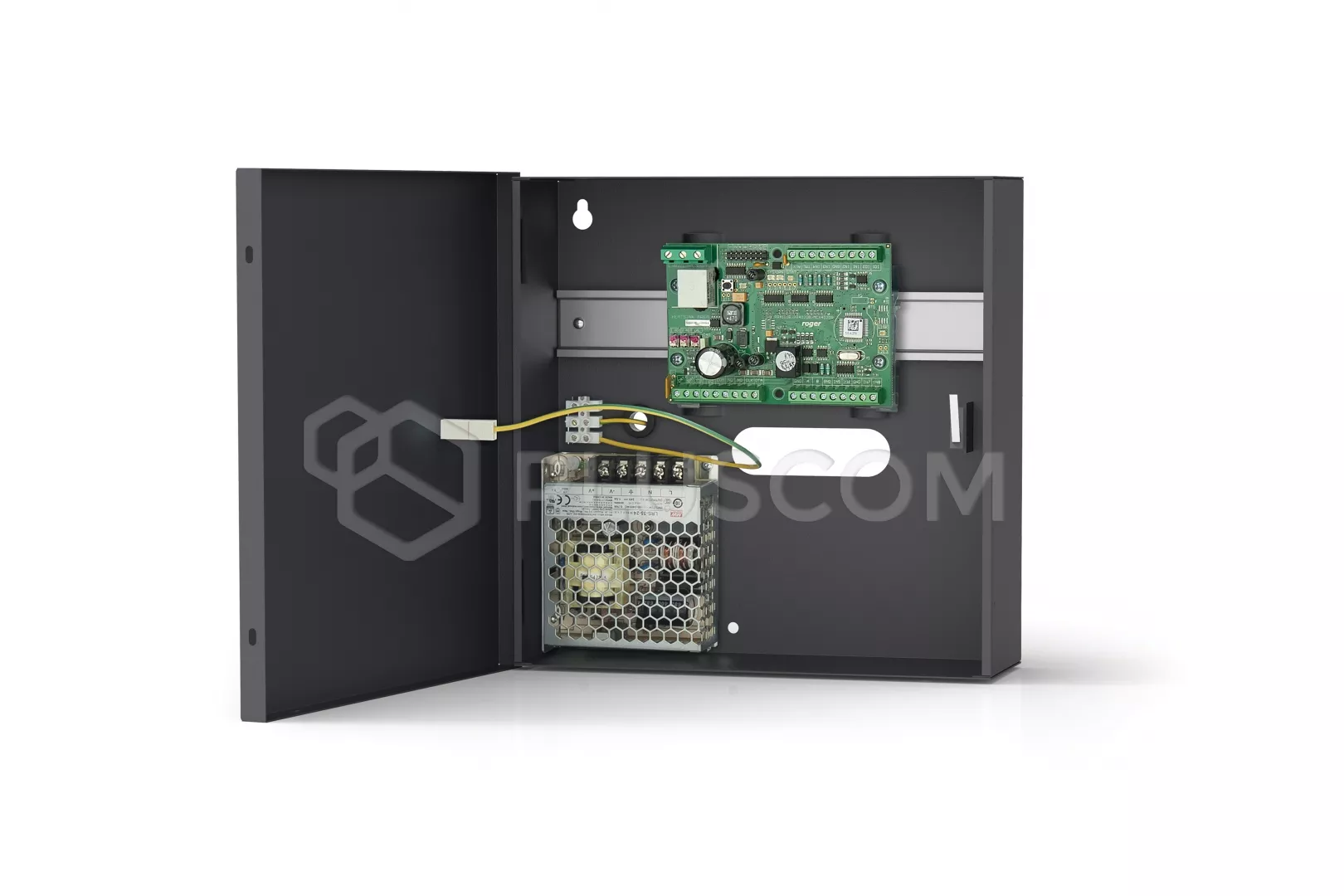

SET CONTAINS MCX402-BRD I/O expander ME-14-24V metal housing with power supply

Roger MCX402-1-KIT Door Expander Kit

Door expander kit for one door. The kit consists of the metal enclosure with a power supply unit and IO expander. The controlled doors can be managed on both, read-in and read-out side, by RACS CLK/DTA (PRT series readers) or Wiegand readers. Door lock and readers are supplied from the controller’s onboard supply outputs capable to deliver respectively 0.2 A and 1.0 A. The entire system is supplied from the 24 VDC/50 W mains power supply unit included in the kit. The door expander is connected with the access controller through RS485 bus.

Characteristics

• read-in/read-out door control
• MCX402-BRD IO expander
• interface to 2 RACS CLK/DTA readers (PRT series)
• interface to 2 Wiegand readers
• supply output 0.2 A
• supply output 1.0 A
• 0.3 A battery charging current
• deep battery discharge protection
• tamper contact
• space for 7 Ah battery

TECHNICAL DATA

• supply voltage:230VAC, 50/60Hz
• power supply LRS-50-24 24VDC/50W
• distances Up to 150 m between kit and readers
• IP Code: IP20
• environmental class: I
• working temperature: +5°C to +40°C
• space for 7 Ah battery
• deep discharge protection
• case dimensions: 255 x 255 x 90mm
• weight: 1.7kg
