Roger MC16-PAC-ST-1-KIT Access control kit

Roger MC16-PAC-ST-1-KIT Access control kit for 1 door in the system RACS 5 v2 ST

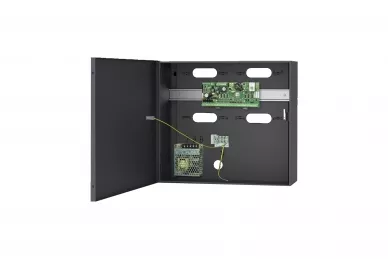

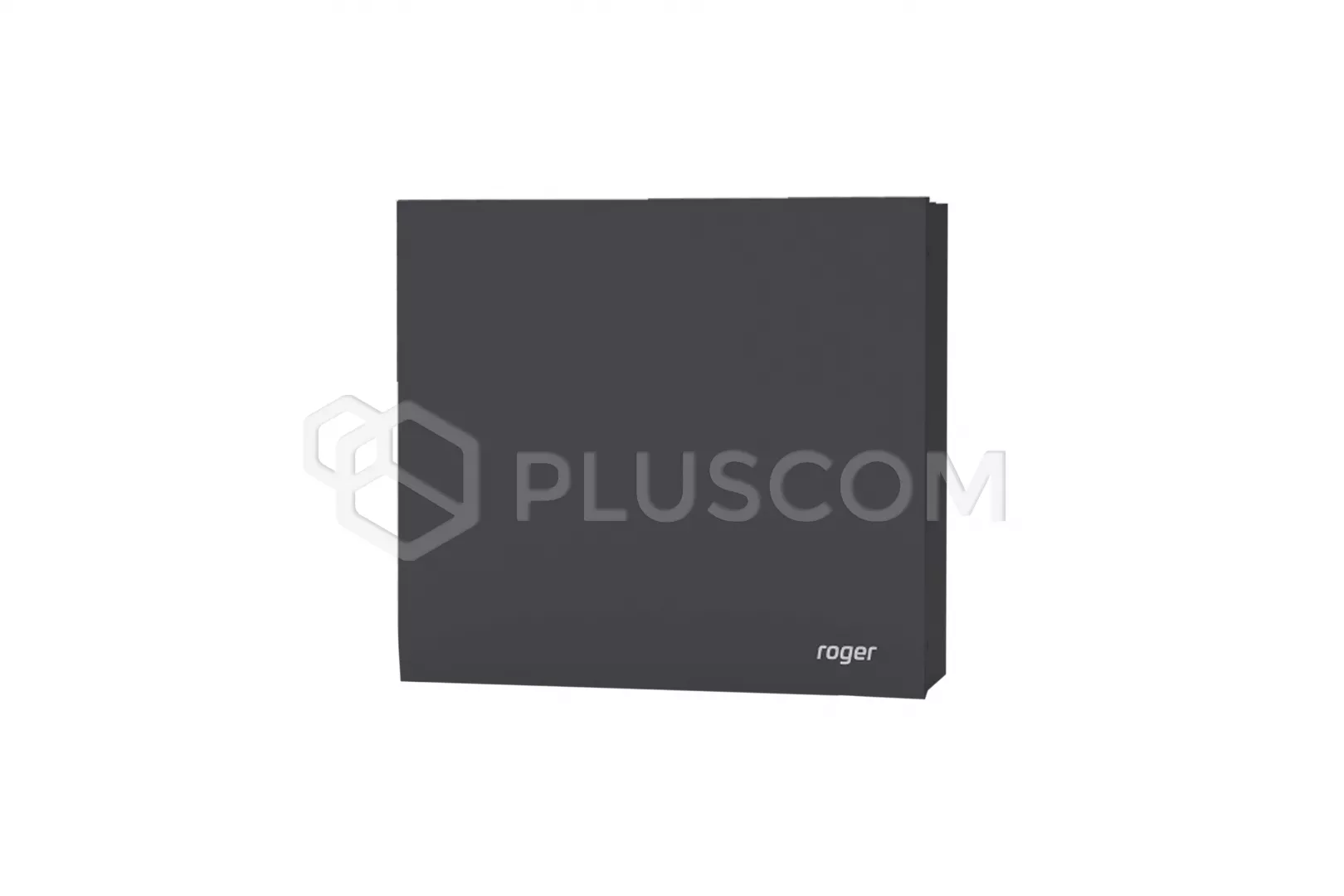

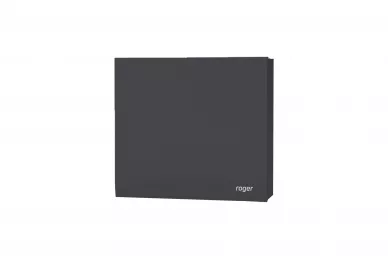

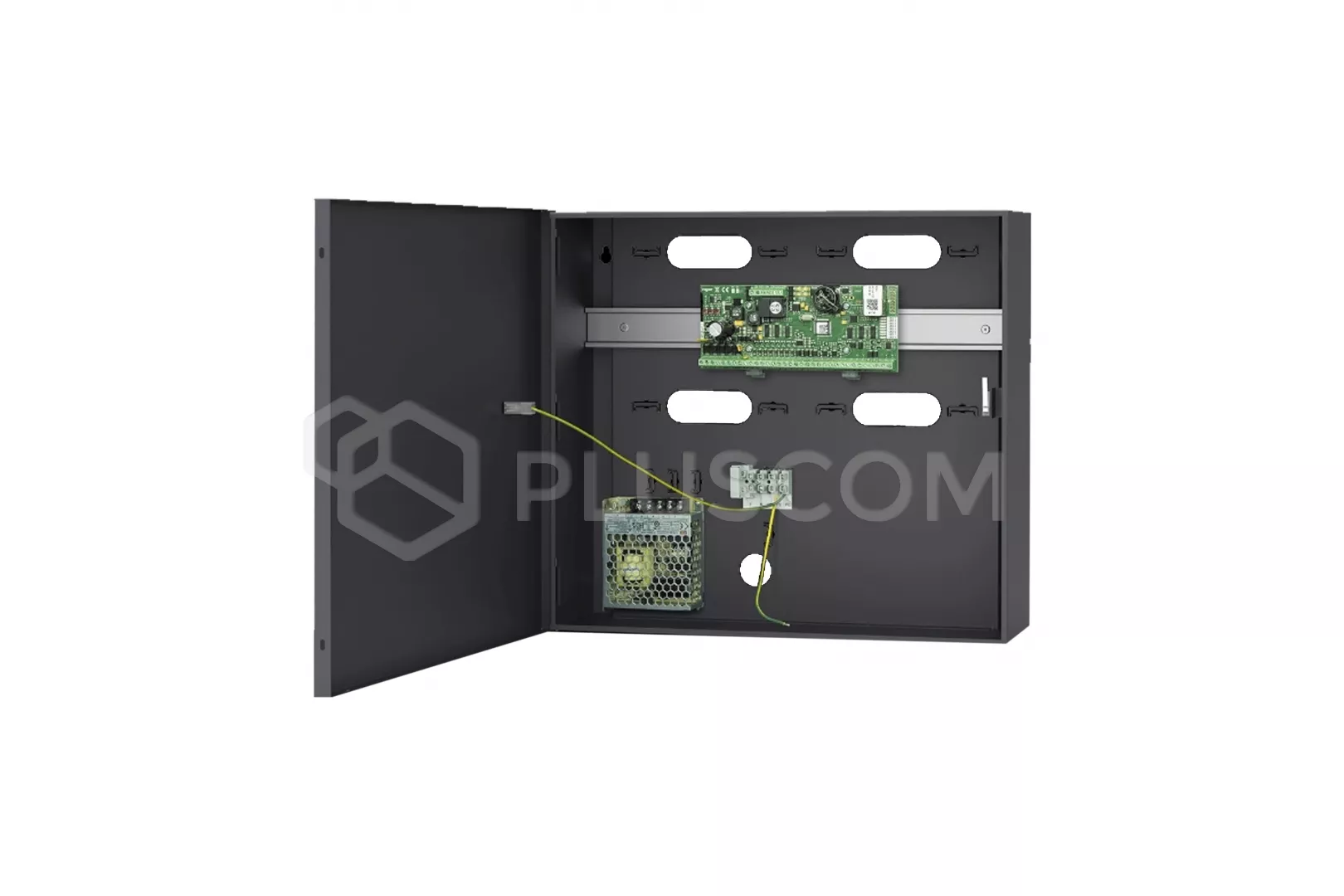

SET INCLUDES MC16-PAC-ST-1 access controller 24V DC/2.2A power supply Metal housing with ME-40-24V power supply

Roger MC16-PAC-ST-1-KIT Access control kit

The MC16-PAC-ST-1-KIT set is designed to support one passage as part of the RACS 5 access control system. The doorway can be controlled single or double-sided using MCT series readers, z readers OSDP-RS485 interface, including OSR series readers, PRT series readers or readers with Wiegand interface.

The controller enables the operation of 1 door controlled on both sides and offers event registration for T&A purposes and integration with the alarm system.

The concept of integration with the alarm system enables the presentation of the alarm zone status and its control directly from the access terminals. MC16-PAC-ST provides an advanced and, at the same time, very efficient way of managing system users and shaping their authorizations. The system controller configuration process is carried out concurrently, and the number of controllers in the system does not affect its configuration time, which usually ends within 1 minute.

The controller is managed from the VISO ST application, which enables cooperation with the Microsoft SQL Server server database.

FEATURES:

• 12000 IDs
• 8 media (card, PIN, fingerprint, etc.) within one identifier
• 100 permissions per ID
• 1 double-sided passage (door)
• 2 login points
• 4 access terminals (readers)
• 2 access zones
• 2 alarm zones
• 2 automation nodes
• TCP modes
• 4 identification steps in one identification mode
• 8 parametric input lines on the controller board
• 8 output lines (main board, expanders, built-in inputs readers)
• 8 15V/150mA DC transistor outputs on controller board
• 2 relay outputs 30V/1.5A AC/DC on controller board
• 8 function keys
• multiple entry lock with timed reset (Timed Anti-passback)
• 32 calendars
• 99 time slots within the calendar
• 250 time schedules
• 40 time slots in one schedule
• direct support for MCT series readers (RS485 interface)
• support for OSDP readers (OSDP v2 protocol) via the MCI-3 interface
• possibility to connect PRT series readers to the motherboard controller
• possibility to connect Wiegand type readers to the motherboard controller
• support for PRT and Wiegand readers via interfaces MCX
• bus
• buffer of 8 million events on a removable memory card
• DC or AC power supply
• backup battery charging and monitoring
• RACS CLK/DTA interface
• RS485 interface
• Ethernet interface
• encrypted data transmission using the AES128-CBC method
• quick setup (less than 1 minute)
• transferring settings in the background without stopping the current system
• built-in switching power supply with 12 VDC/1.0 A output
• dimensions: 72.0 x 175.0 x 30.0 mm
