Nice WINGO 5000 Base set

855,49 EUR including 22.00% VAT
Product code: #18485
Manufacturer: Nice
  • maximum leaf width 3.5m
  • maximum leaf weight 200kg
  • 230V AC motors
  • wicket function
  • control panel MC800
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Nice FLO2RE 2-channel remote Photocell Nice BF Nice PLA13 Mechanical travel stop for Wingo (1pcs) Nice ON3EBD 3-channel remote two-way Nice IT4WIFI BusT4 interface - Wi-Fi Nice ELAC LED flashing signal light 230V Nice ON3ELR 3 channels pilot with LoRa technology Nice PPH3 aluminium post for EPM photocell, 50cm high Photocell Nice EPM ERA Medium Nice OXIBD 4-channels receiver two-way

Nice WINGO 5000 230V Electromechanical gear motors witch MC800 control panel

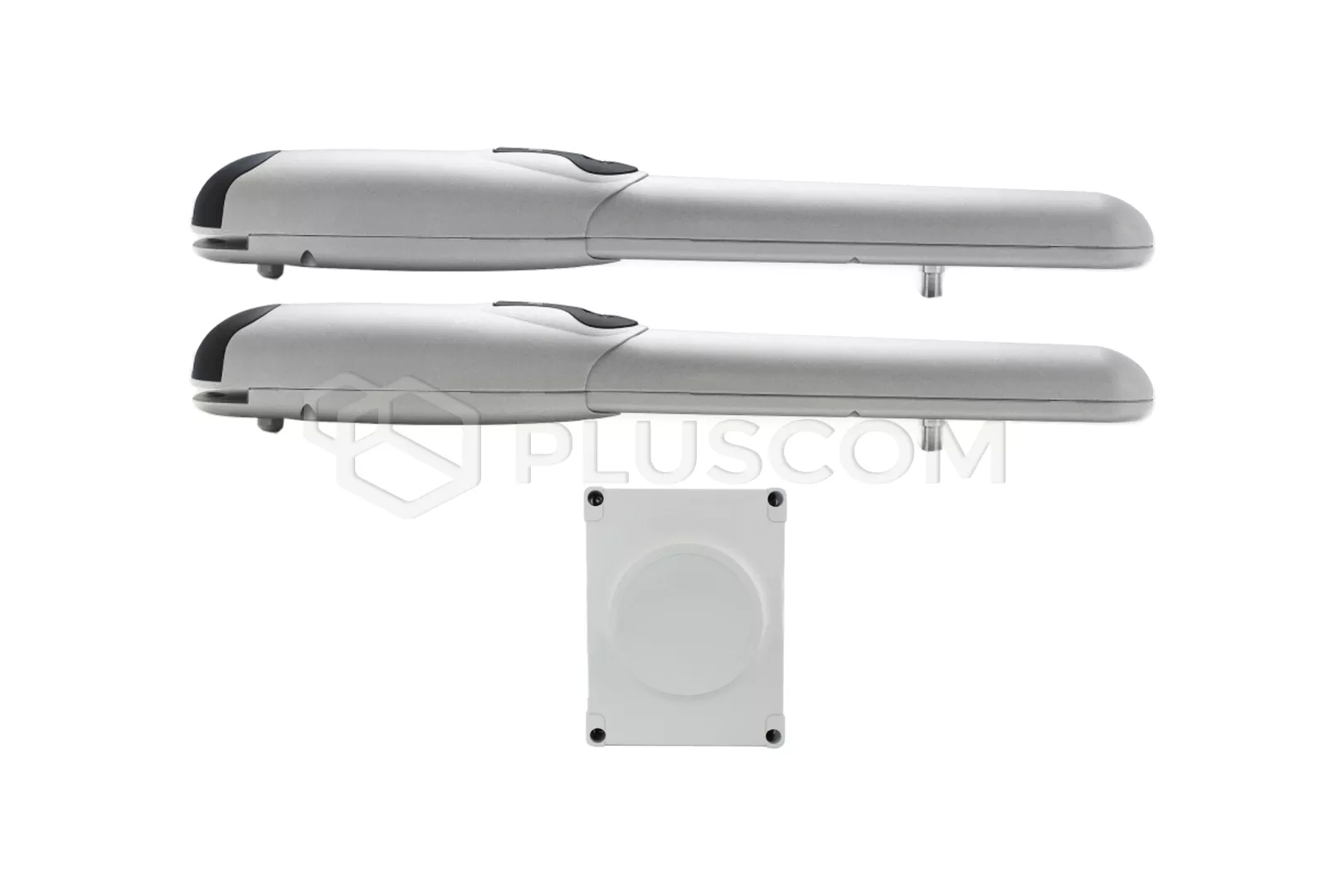

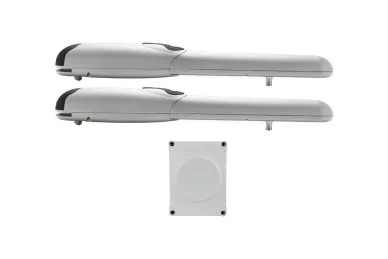

KIT INCLUDES:
Nice WINGO5000 Electromechanical gear motor witch MC800 control panel

Nice WINGO5000 Electromechanical gear motor witch MC800 control panel

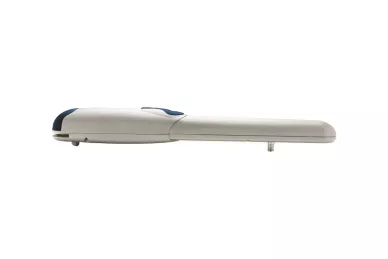

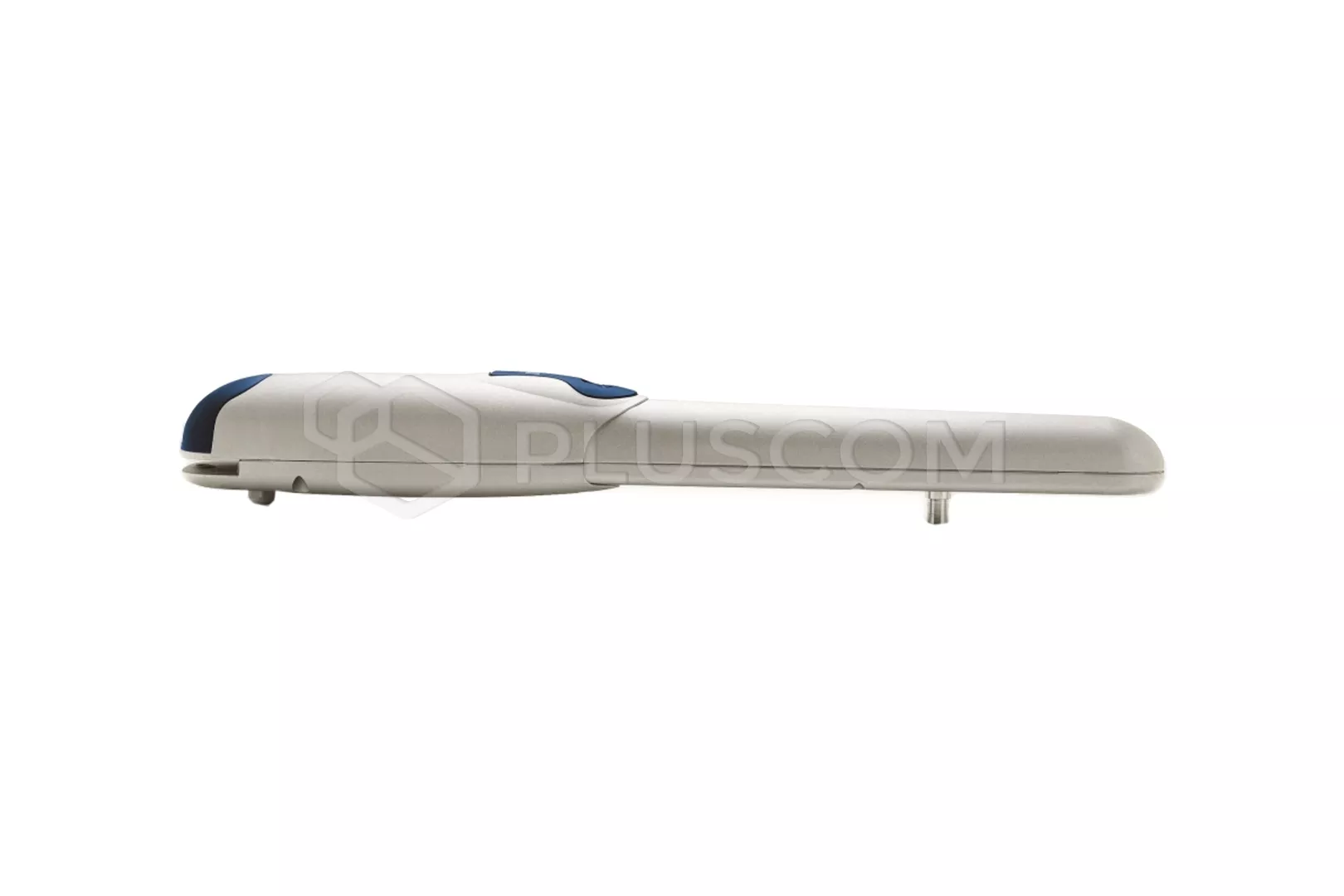

WINGO5000 is a self-locking actuator with limit switch when opening,.The gate is locked and can not be opened manually, thus eliminating the need for additional locks. In the event of a power outage, the emergency unlocking key is provided with a Nice triangle key lock. Turning the key 90 ° clockwise, release the lock and it is possible to open the gate manually. By turning the key counter-clockwise, we also lock the drive.

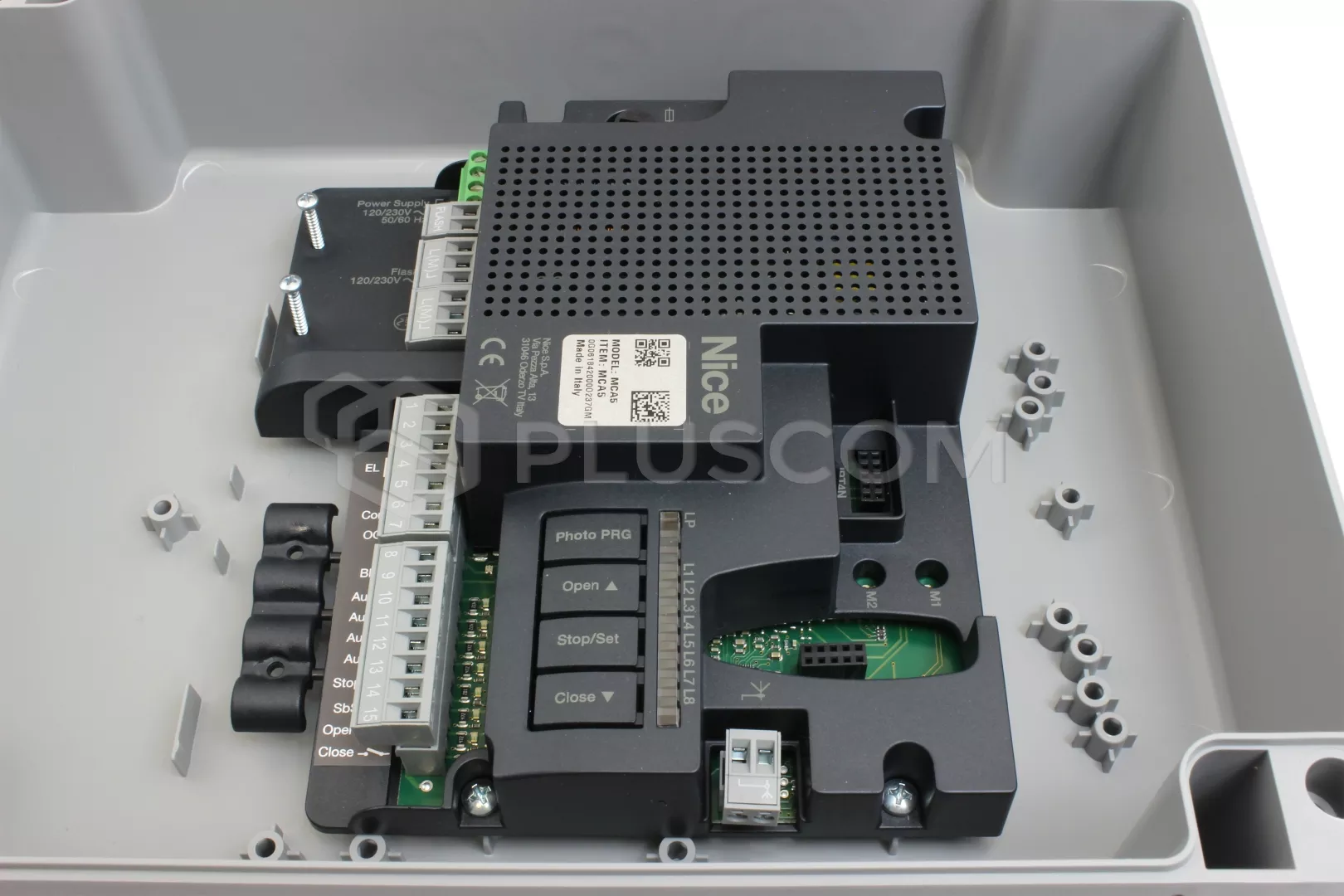

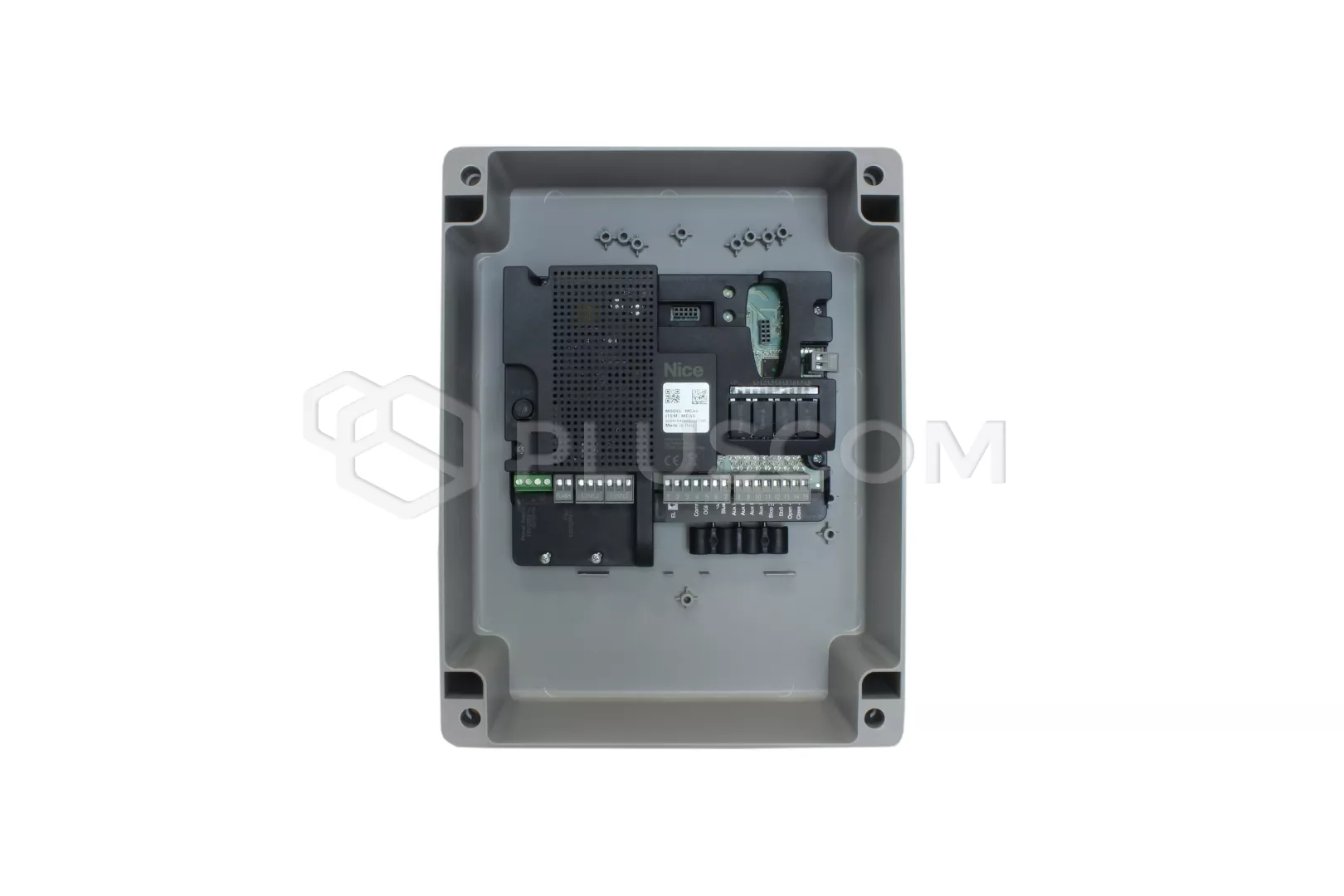

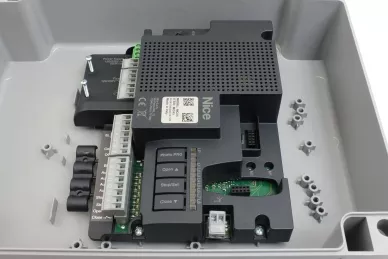

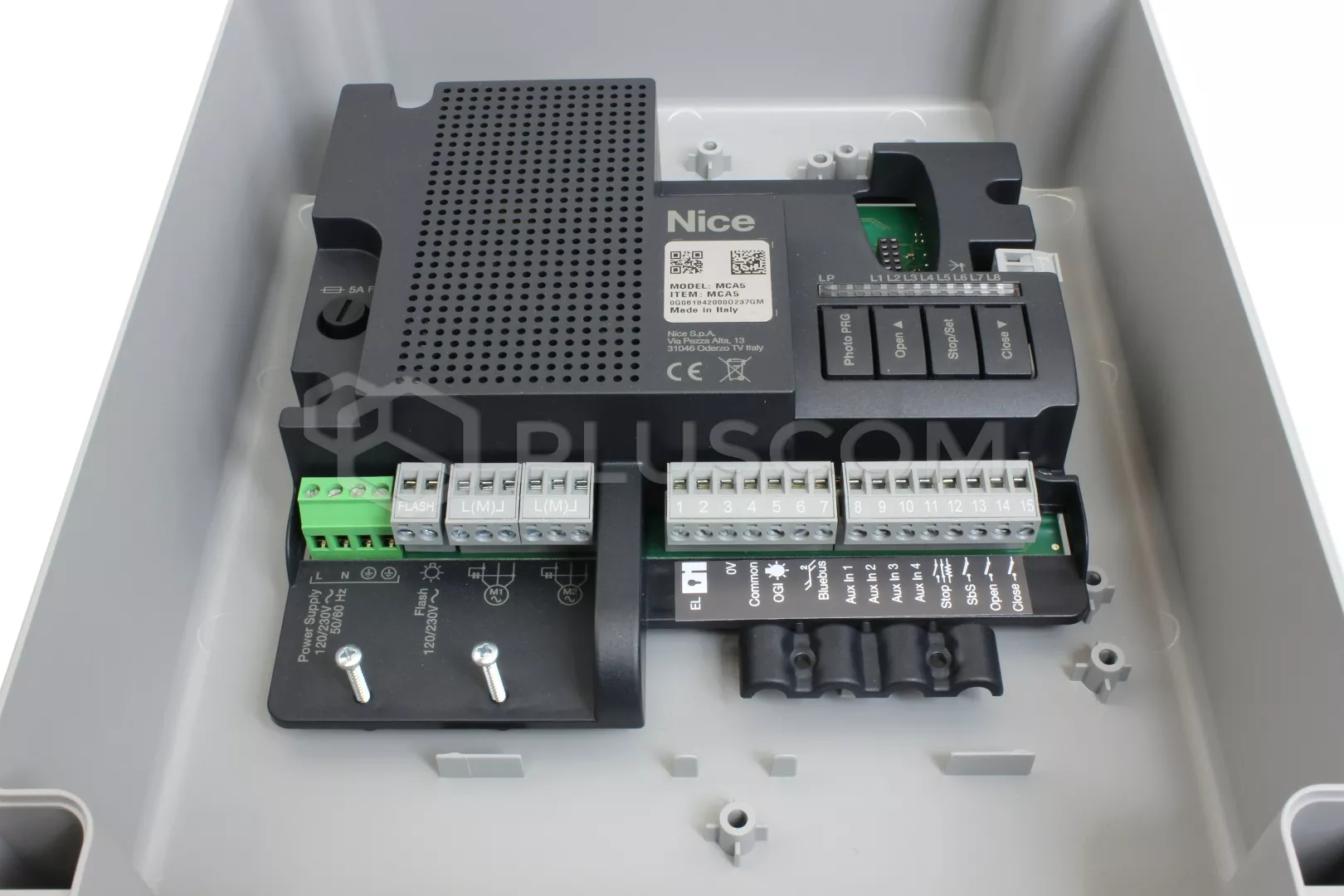

The actuator is connected and controlled from the MC800 control panel witch many function:
  • simple programming, works with Oview programmer
  • simple programming, a friendly two-level programming method of 8 first level functions (ON-OFF) and 8 parametric functions
  • gentle start and release at closing
  • function of partial opening of the gate - wicket
  • controlling the operation of two 230V actuators
  • semi-automatic, automatic operation
  • auto programming during the first programming the control panel automatically determines and memorises the end positions of the gate
  • service of an electric lock
SPECIFICATIONS:
  • motor power supply: 230V
  • current load: max 1,5A
  • power consumption: 200W
  • speed: 0,016m/s
  • strength: max 1700N
  • intensity work: 30 cycles/h
  • operating temperature: -20°C...+ 50°C
  • degree of protection: IP44
  • dimensiosn: 920x98x95mm
  • weight: 6kg
PATAMETERS OF THE CONTROL PANEL:
  • power supply of the control panel: 230V AC
  • rated power consumed from the 900W grid
  • flashing lamp output: 120 / 230V, 21W
  • degree of protection: IP54
  • working temperature -20 ° C ... + 50 ° C
  • dimensions: 310x232x122mm
  • Weight: 4.1 kg
Download
Instruction 1.31 MB
