Nice TO4024 24V Actuator wing up to 5m/300kg

442,83 EUR including 19.00% VAT
On stock. Ships in one business day
Delivery time: 3 - 5 days
Product code: #7270
Manufacturer: Nice
  • maximum leaf width 3m
  • maximum leaf weight 300kg
  • 24V motor
  • built-in encoder
  • for intensive use
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Nice FLO2RE 2-channel remote Nice ELDC LED flashing signal light 12/24V Photocell Nice EPMB ERA Medium BLUEBUS Nice ON3EBD 3-channel remote two-way Nice IT4WIFI BusT4 interface - Wi-Fi Nice OVIEW/A R01 Display programmer +IBT4N interface Photocell Nice FT210B adjustable, wireless transmitter, BLUEBUS Nice OXIBD 4-channels receiver two-way Nice MC824H R10 BLUEBUS control unit Nice PLA10 Electric lock vertical
Nice TO4024 24V

For swing gates with leaves up to 3m.
Electromechanical gear motor surface mounted powered at 24V DC with magnetic encoder.
Ideal for industrial installations, designed for intensive use.

RELIABLE: durability thanks to the housing, made up of two tough aluminium shells with polyester paint finish more resistant to atmospheric agents

Internal moving parts completely in steel, light alloys and technopolymers

SILIENT: patented layout of internal parts and lead nut in bronze

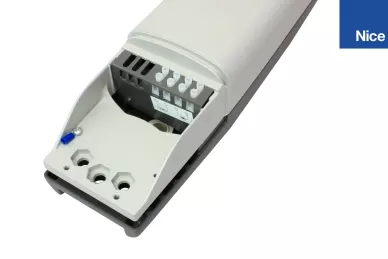

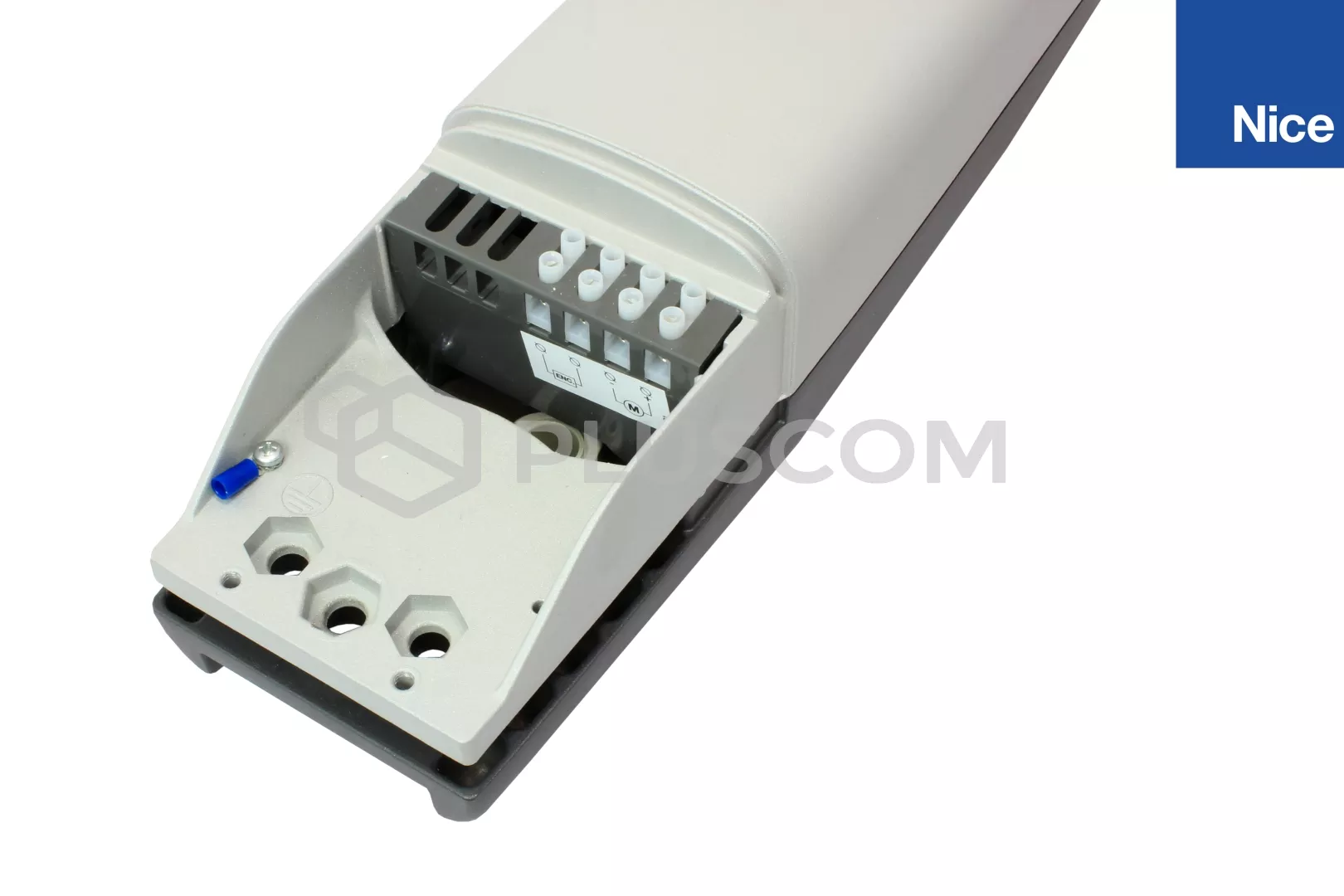

Generously sized and practical connection compartment:
rapid and easy access from above to internal parts located in the upper section of the motor.

SPECIFICATIONS:
  • motor power supply: 24V
  • current load: max 5A (nominaly 2A)
  • power consumption: 120W
  • speed: 0,016m/s
  • working stroke: 385mm
  • strength: max 1800N
  • intensity work: 95 cycles/h
  • operating temperature: -20°C...+ 50°C
  • degree of protection: IP44
  • weight: 6kg
To control the operation of the actuator is recommended control panel:
  • Mindy MC824H with BLUEBUS technology

The item is available in the following sets:

Nice TOONA TO4024 Base set Nice TOONA TO4024 Base set
Nice TOONA4024 dual swing gate kit for gates up to 3m/24V Nice TOONA4024 dual swing gate kit for gates up to 3m/24V
