Nice FT210B: pair of photocells for sensitive edges fastened on moving door,
can be swivelled through 210°.
Optical device, with wireless transmitter and BlueBUS technology to
secure on moveable leaf, horizontally adjustable through 210° and 30°
vertically, for an automation according to Standards.

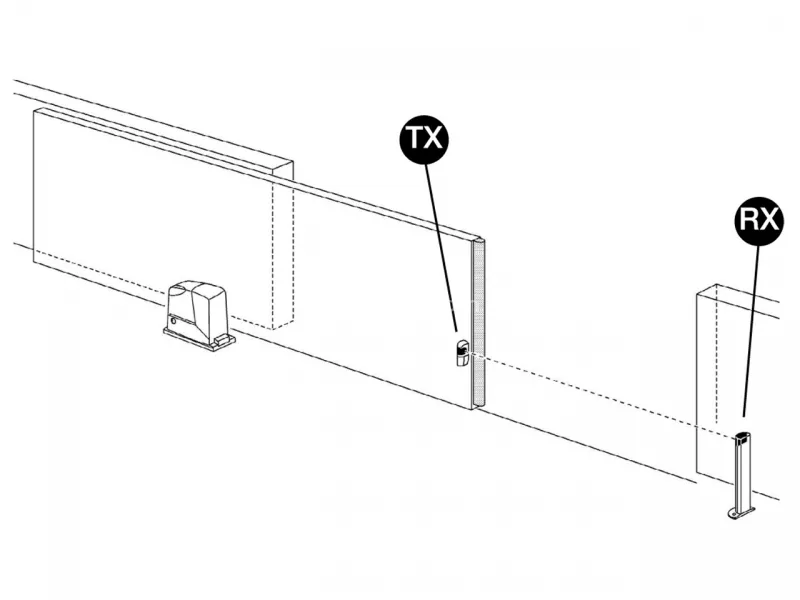

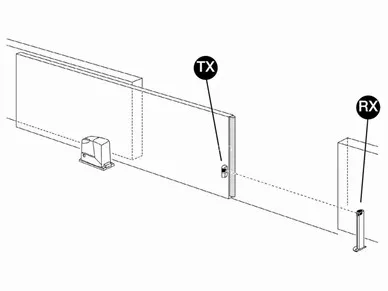

Nice FT210B installation on gate
Consideration towards personal
safety and product quality.
The safety level of the main edge, required by the EN12453 standard, can be
achieved for any “type of use” and any “type of activation” by integrating a
FT210/FT210B device to an 8.2 kΩ TCB65 type resistive sensitive edge.
The FT210/FT210B device, integrated with a “resistive” sensitive edge (8.2 kΩ),
is safe against individual faults (category 3 according to the EN 954-1
standard) or can be used with automated systems with self-diagnosis at the
start of every manoeuvre (category 2 according to the EN 954-1 standard).

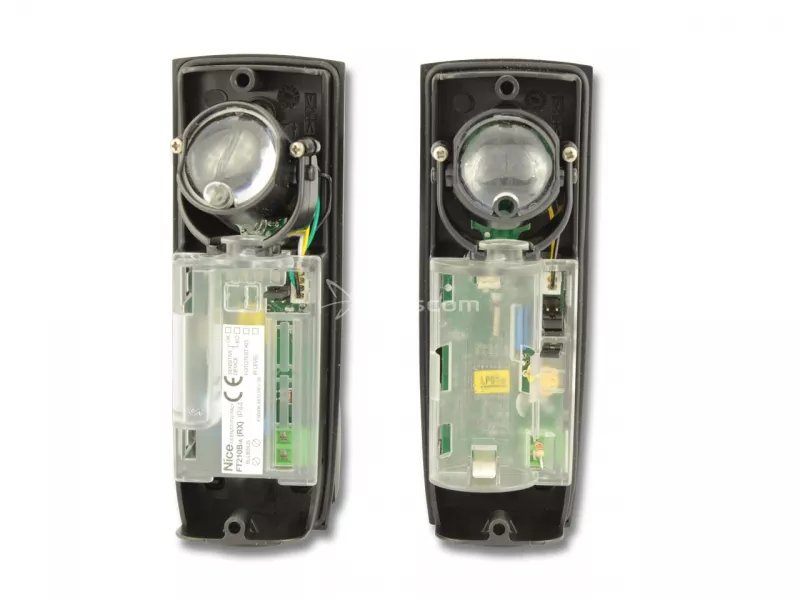

Nice FT210B BLUEBUS transmitter and receiver inside
Bluebus models
Versions with Nice BlueBUS technology, like FT210B, available with 2 Ah (FTA2)
and 7Ah (FTA1) battery Kit, for intensive use. With the BlueBUS technology, all
devices can be easily connected to the control unit with just two wires.
Sensors with the BlueBUS technology can be connected to incompatible control
units by means of an IB interface. The devices that are connected to the
BlueBUS network are automatically acquired by the system.
Cutting-edge technology
The anti-collision circuit avoids interference with other out-of-sink
receivers. The FT210/FT210B optical devices are equipped with a special sensor
capable of recognizing when the gate is motionless, which remains in a low
consumption mode and activates only when the gate is in motion. Range
adjustable on 2 levels; alignment with proportional Led for easy and safe
installation.
Suitable for any architectural environment and easy to install

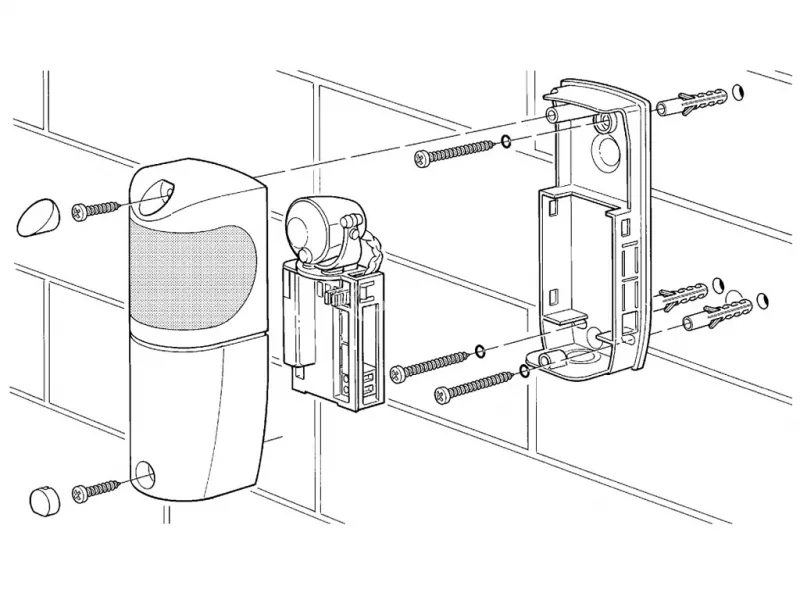

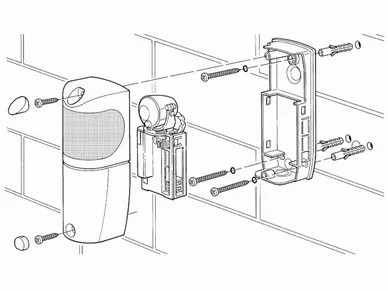

Nice FT210B BLUEBUS mounting

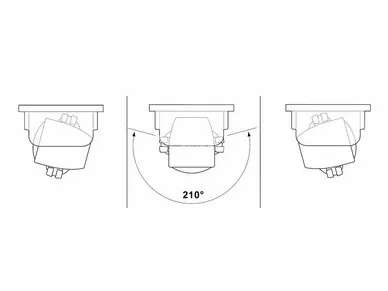

Nice FT210B BLUEBUS adjusting
Reduced dimensions: 46x128x45;
electrical connections can also be made from the lower section of the box.
Resilient and safe
Polycarbonate casing; FA1 vandal-proof metal shell (optional).
Cutting-edge technology
The problem of interference between the sensors and the automatic
synchronisation between several pairs of photocells is solved by the
anti-blinding circuit; high range adjustable on 2 levels; synchronising
circuit; alignment with proportional Led for easy and safe installation.
