Nice TOONA TO4024 Base set

1242,36 EUR including 23.00% VAT
On stock. Ships in one business day
Product code: #5796
Manufacturer: Nice
  • maximum leaf width 3m
  • maximum leaf weight 300kg
  • 24V motor
  • built-in encoder
  • for intensive use
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Nice FLO2RE 2-channel remote Nice ELDC LED flashing signal light 12/24V Swing gate centre stop 160x140mm Stop swing gate fi 90mm

Nice TOONA 4024 Electromechanical gear motor 24V witch MC824HR10 control panel

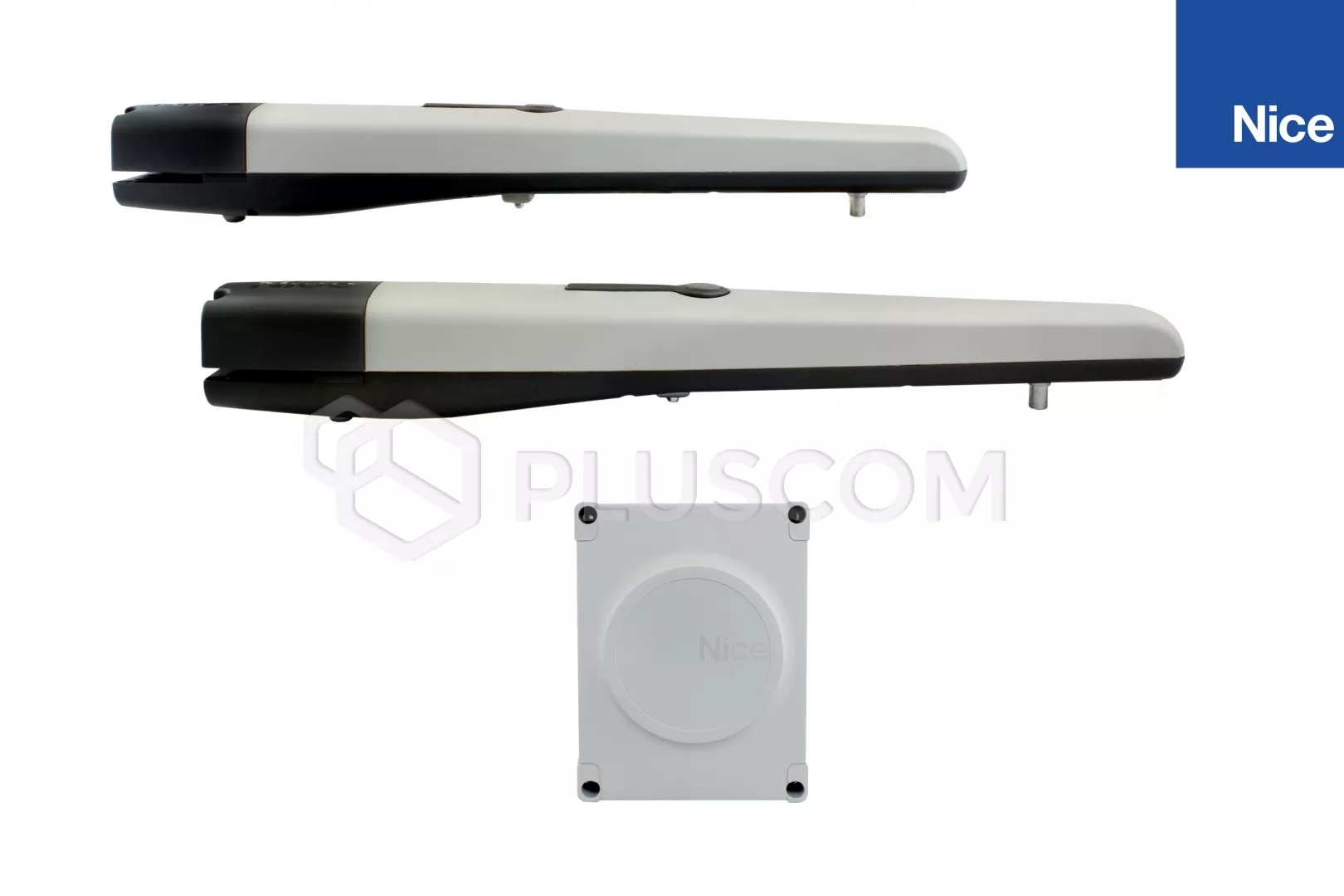

KIT CONTENTS:
Nice TOONA TO4024 Electromechanical gear motor 24V witch MC824HR10 control panel

Nice TOONA TO4024 Electromechanical gear motor 24V witch MC824HR10 control panel

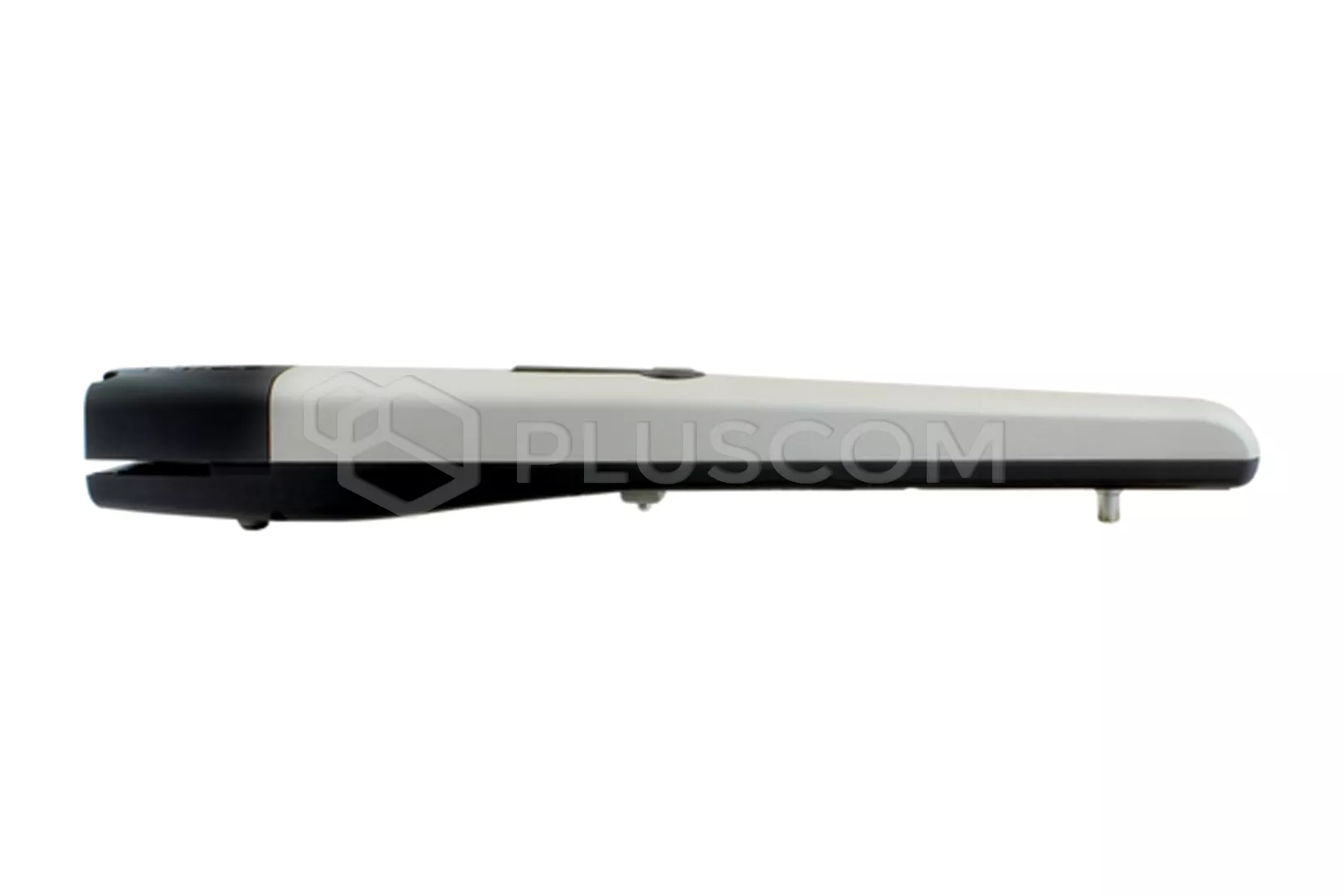

Toona is surfacemounted electromechanical gear motor for swing gates with leaves up to 3 m.

24 Vdc version with magnetic encoder.Perfect for intensive use.

Reliable: durability thanks tothe housing, made up of two tough aluminium shells with polyesterpaint finish; more resistant to atmospheric agents.

Internal moving parts completely insteel, light alloys and technopolymers.

silent: patented layout ofinternal parts and lead nut in bronze. Generously sized and practicalconnection compartment: rapid and easy access from above to internalparts located in the upper section of the motor.

simple installation and maintenance

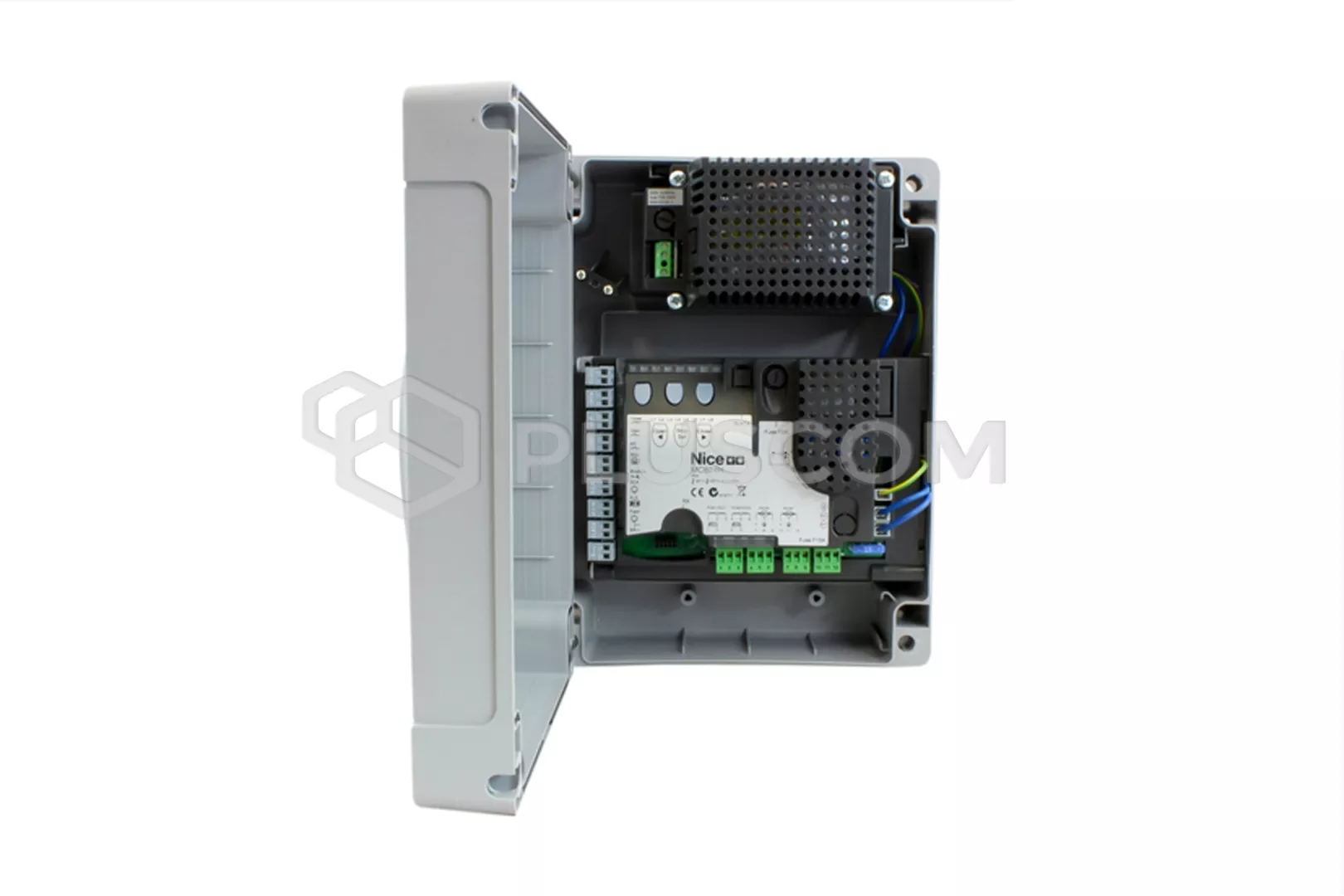

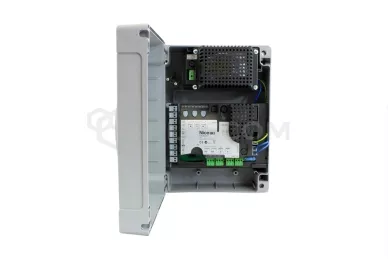

MC824HR10 CONTROL UNIT FUNCTIONS:
  • controlling the operation of two 24V actuators with an encoder
  • manual, semi-automatic, automatic operation
  • SM type connector for plug-in radio receivers
  • IBT4N connector for connecting BusT4 devices
  • BLUEBUS technology
  • auto programming during the first programming the control panel automatically determines and memorises the end positions of the gate
  • gentle start and release at closing
  • regulation of the speed of the actuators
  • function of partial opening of the gate - wicket
  • possibility of connecting the PS124 battery thanks to which the gate will open even when the mains power supply is disconnected
  • possibility of connection to the '' Solemyo '' solar power system
  • service of an electric lock

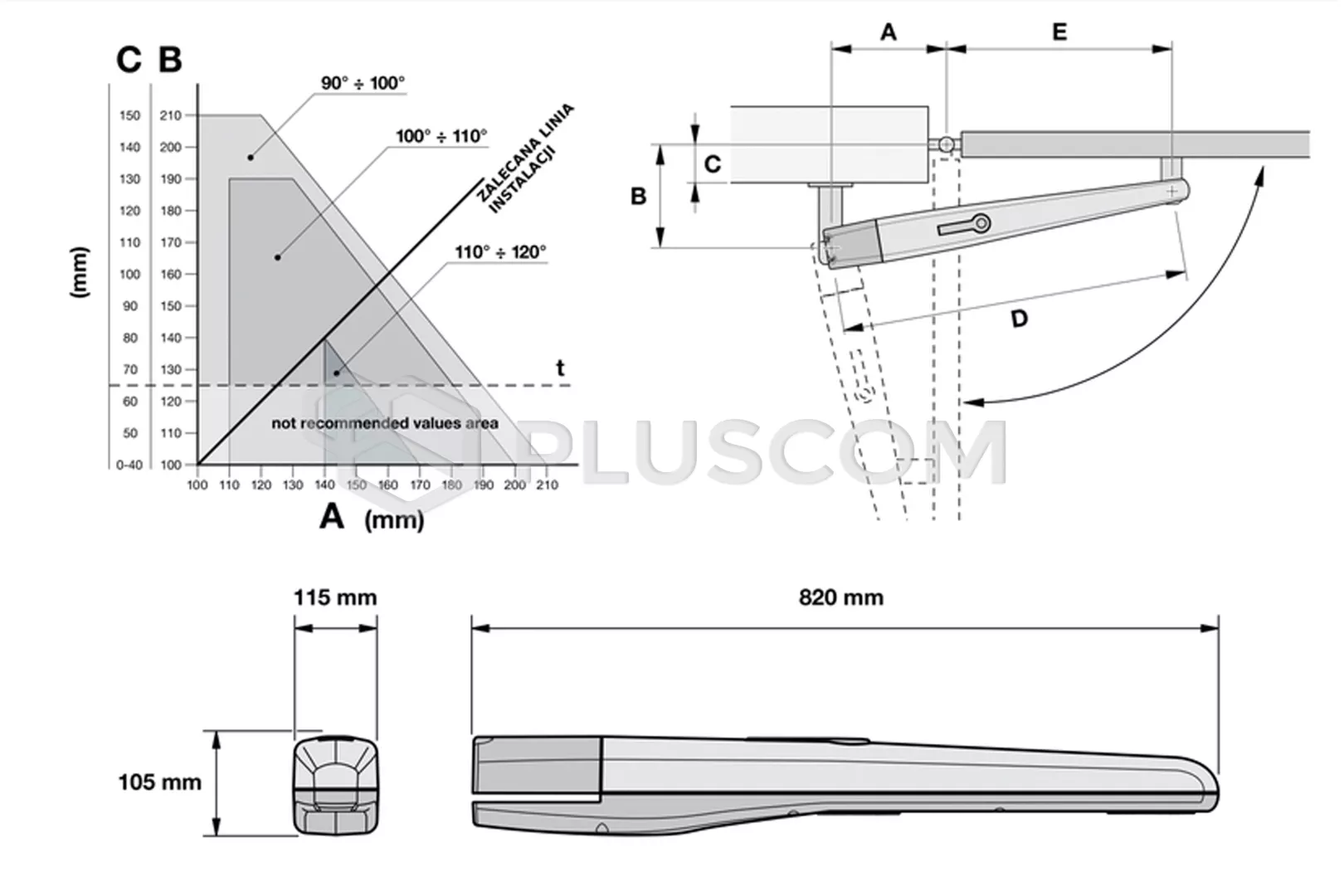

Assembly dimensions:

Assembly dimensions:


SPECIFICATIONS:
  • motor power supply: 24V
  • current load: max 5A (nominaly 2A)
  • power consumption: 120W
  • speed: 0,016m/s
  • working stroke: 385mm
  • strength: max 1800N
  • intensity work: 95 cycles/h
  • operating temperature: -20°C...+ 50°C
  • degree of protection: IP44
  • weight: 6kg
PATAMETERS OF THE CONTROL PANEL:
  • power supply of the control panel: AC 230V
  • degree of protection: IP54
  • working temperature -20 ° C ... + 50 ° C
  • dimensions: 310x232x122mm
  • Weight: 4.1 kg
Download
Instruction 2.5 MB
