Nice SPIDER1200 MYGO WI-FI Set with 2 x 1.6m rail and reinforced belt
PURPOSE OF THE DRIVE:
Automation of garage doors with an area of:
- tilt door - up to 15.6m²
- sectional door - up to 16.9m²
KIT COMPOSITION:
|

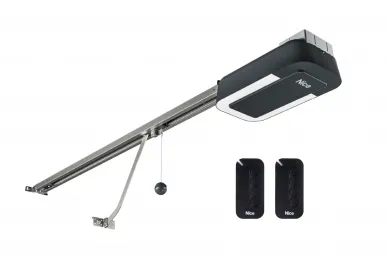

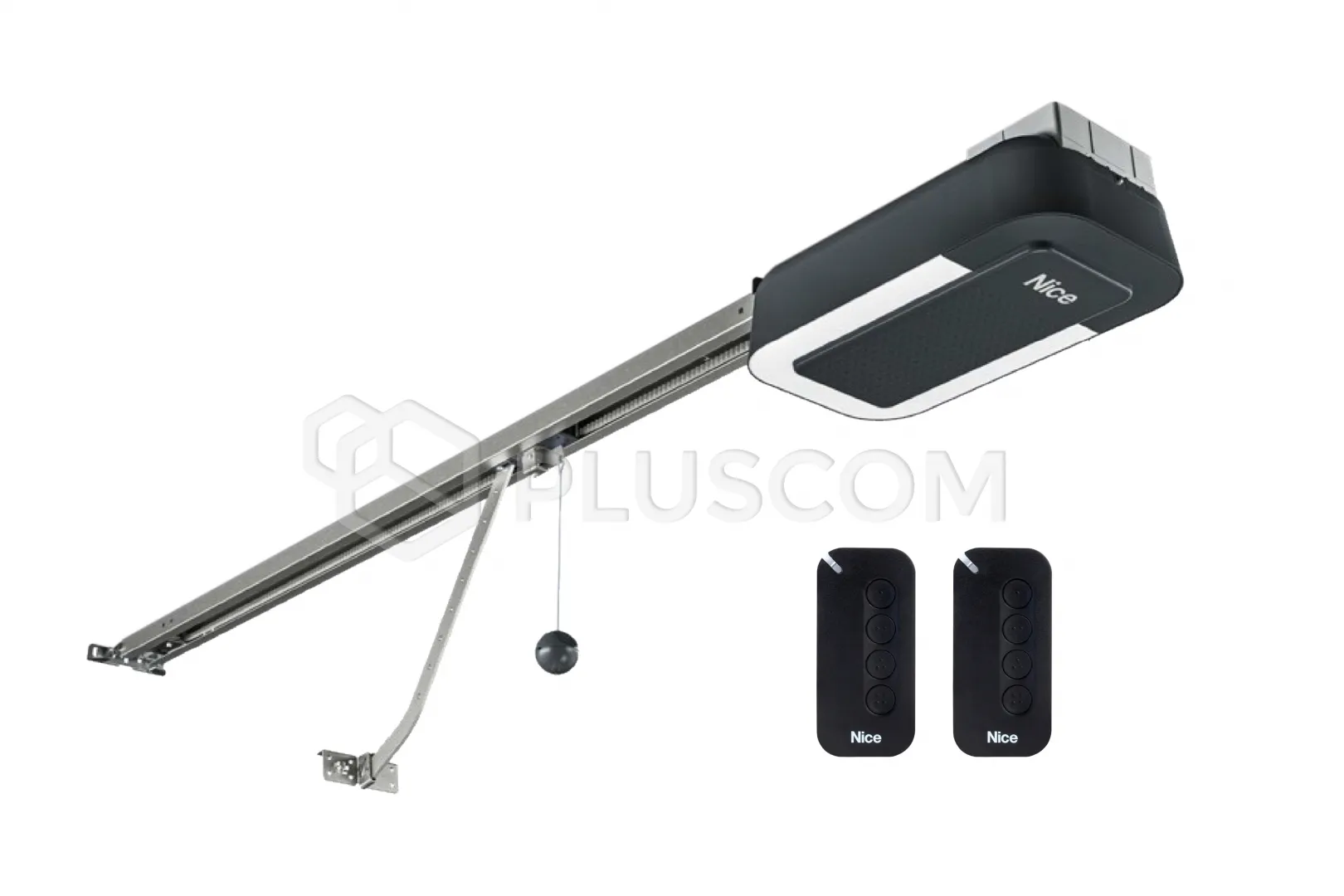

Nice SPIDER1200 WIFI sectional and up-and-over door kit with 2x1.6m rail
|
SPIDER 1200 is an electromechanical actuator for the automation of
sectional, swinging, protruding and non-protruding gates with a brushless motor
and built-in Wi-Fi module.
It is designed for intensive use thanks to its new brushless motor (up to 150
cycles per day) and a control unit that can be expanded with accessory modules
to increase the number of inputs or outputs.
Spider can also be integrated with the Yubii ecosystem. Control via the
Yubii app.
The control unit attached to the gate, in addition to powering the DC motor,
allows for perfect regulation of the torque and speed of the gear motor,
precise reading of the position limiter, gradual start-up and closing, reading
of obstacles. In addition, it is equipped with an internal counter that allows
recording of the manoeuvres performed by the gear motor during its entire
service life.
The integrated standby power module guarantees 90% lower energy consumption
when the product is in standby mode.
Compatible
Always connected thanks to the
new built-in Wi-Fi module. It
allows you to control, manage, check and know everything about your garage door
automation anywhere, anytime using your smartphone.
Security:
- Anti-theft function: if an attempted break-in is
detected, a notification will be received via the MyNice app and a new
closing manoeuvre will be automatically forced
- Eye Check, a visual control system: green and red LEDs
built into the motor signal potential problems / maintenance required or show
that everything is working smoothly
Designed with sustainability in mind. Made of 80% recycled plastic.
The MYGO4 remote control provides radio control with a
dynamically changing code, with a frequency of 433.92 MHz, which provides a
high level of use safety and makes the code impossible to copy.
MYGO4 has a secret code, the so-called "SWITCHING CODE". By
transferring this code from a memorized transmitter to a new transmitter, the
latter is recognized (and remembered) automatically by the receiver.
The MYGO4 transmitter can be programmed using the ProView device. The remote
control is configured by default in one-way mode with radio coding
"O-Code".
TECHNICAL DATA:
- Power supply: 230 VAC 50/60 Hz
- Current: 1.5A
- Power: 240W
- Power in standby mode: <1W
- Speed: 0.16m/s
- Force: 1200N
- Work intensity: 150 cycles/day
- Protection class: IP40
- Working temperature: -20°C / +55°C
- Dimensions: 225 x 395 x 105.5 mm
- Weight: 6.7 kg
