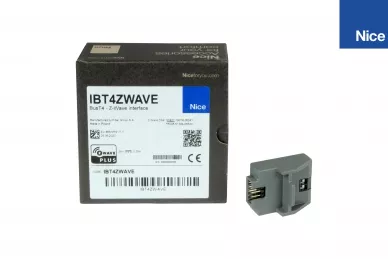

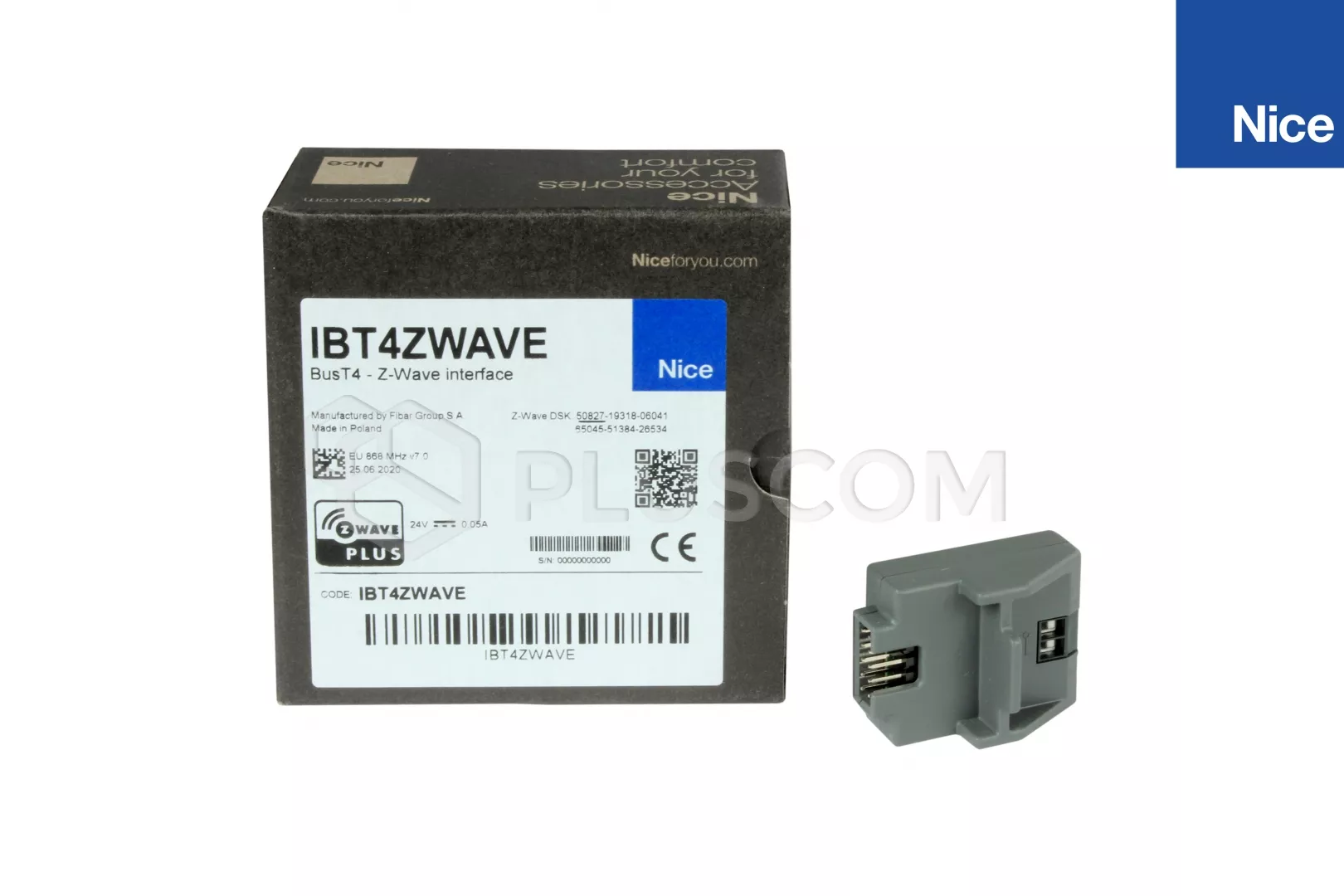

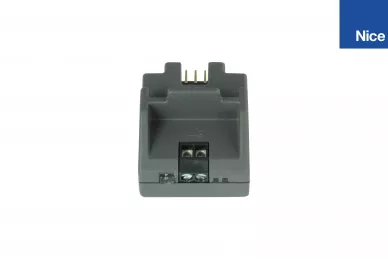

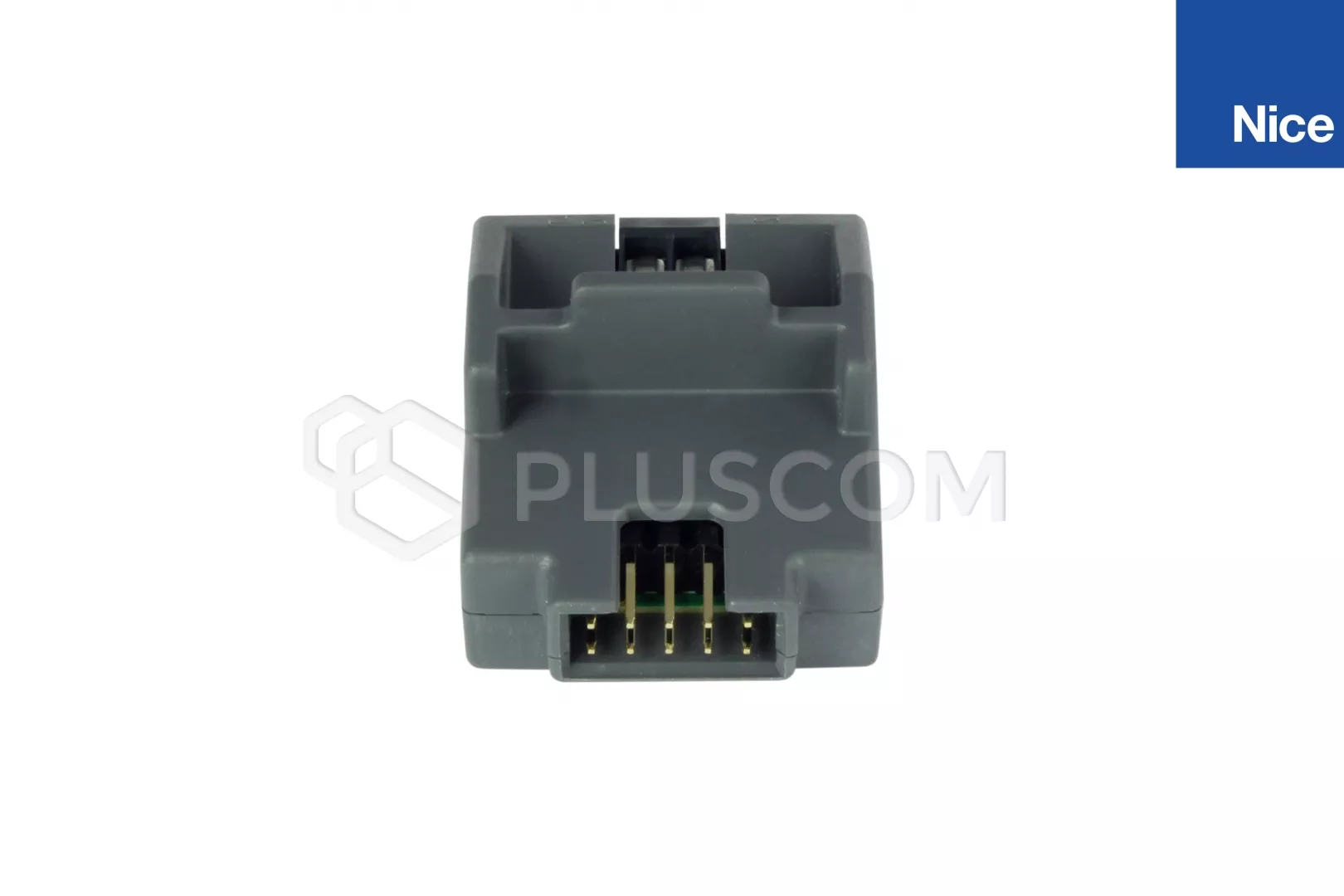

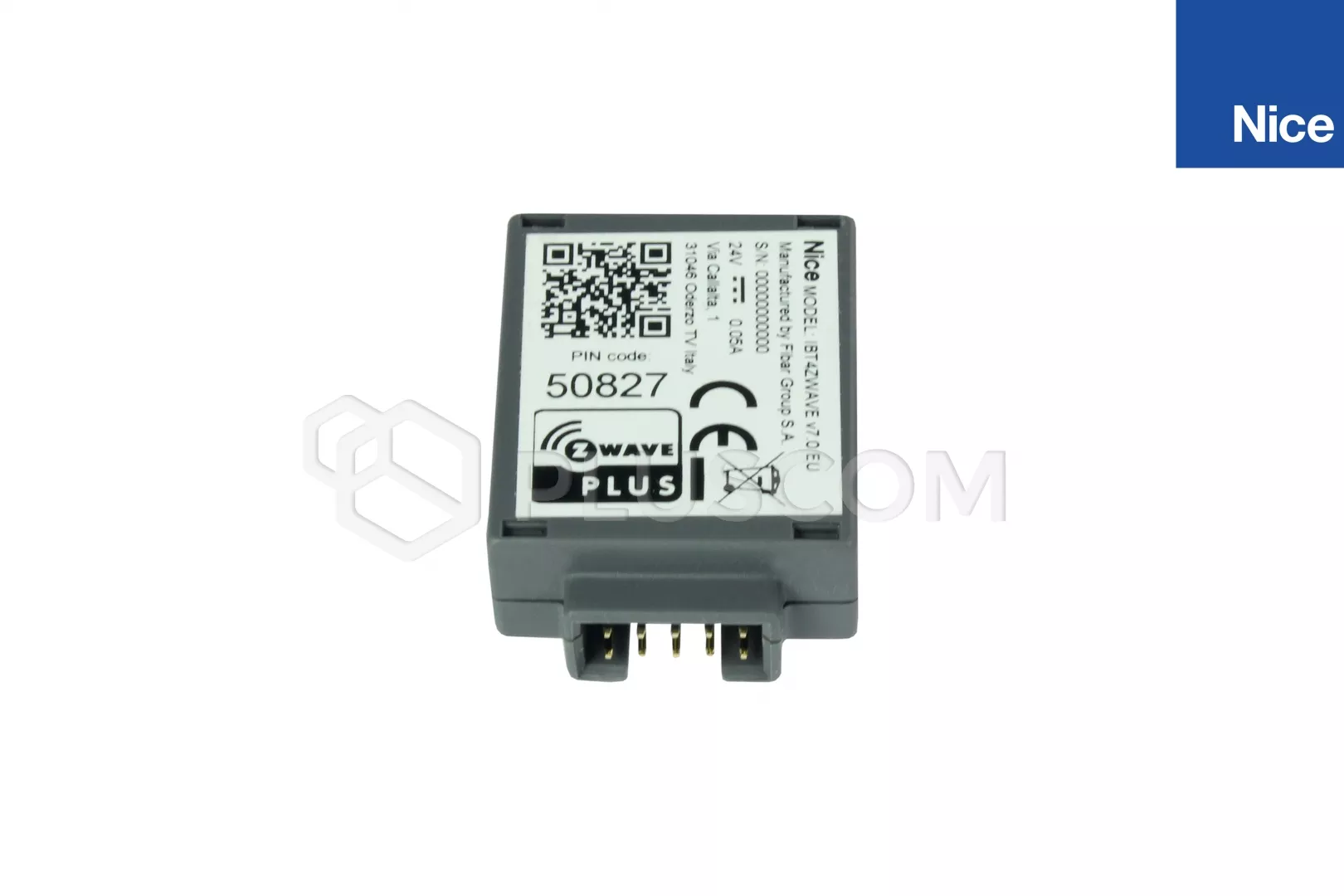

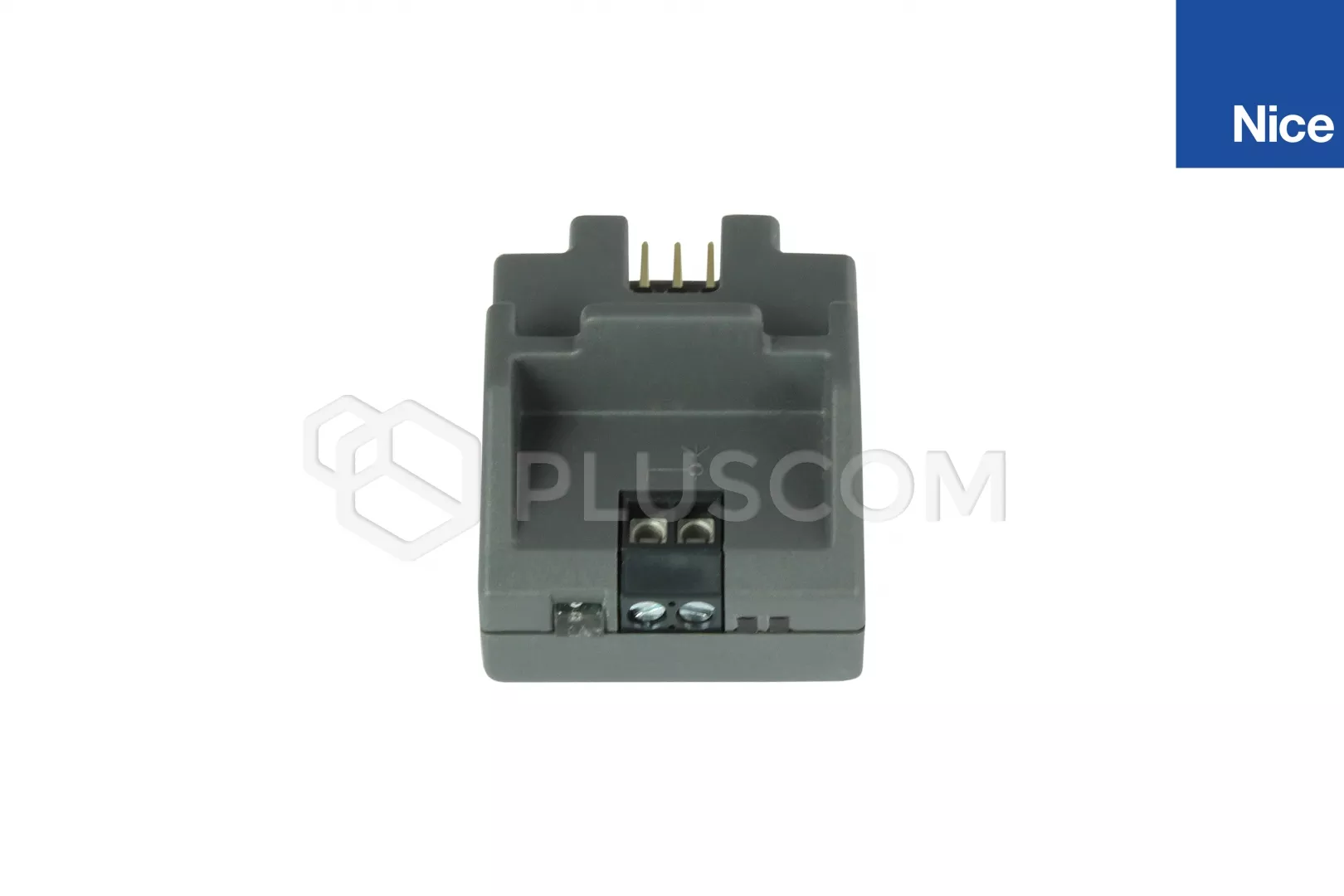

Nice IBT4ZWAVE Plug-in BiDi-ZWave Interface

NICE IBT4ZWAVE Plug-in BiDi-ZWave Interface

The BiDi-ZWave accessory is a device that – by means of Z-Wave communication – allows for controlling the movement and status of Gate&Door-type Nice automations compatible with the BUS T4 (Opera) protocol.

The module communicates with the Nice control unit via the IBT4 connector. In addition to door control, in conjunction with the FIBARO Home Center 3 control panel, we have the ability to view the current status of the gate, its position and status diagnostic.

Nice products, equipped with the BiDi Z-Wave module, can be controlled by remote controls Nice and via the FIBARO system and devices connected to it (eg FIBARO KeyFob, FIBARO The Button). Additionally, via the FIBARO i voice assistants (Amazon Alexa, Google Assistant).

SPECIFICATION

• Power supply: 24V supplied by the control unit to which the BiDi-ZWave is connected
• Absorbed current: max 50 mA
• Radio frequencies: 868.0–868.6; 869.7–870.0 MHz
• Internal antenna max. transmit power: 10 dBm
• External antenna max. peak gain: 3 dBi
• External antenna cable length: 1 - 3 m
• Antenna connector screws rated torque: 0.4 Nm
• Casing protection rating: IP 40 (use indoors or in protected environments only)
• Operating temperature: - 20 °C ... +50 °C
• Dimensions: 37 x 28 x 21mm
• Weight 10g
