NICE SPIDER1200BLW Head, Brushless Motor, Built-in Wi-Fi Module

359,38 EUR including 23.00% VAT
On stock. Ships in one business day
Product code: #40706
  • Pulling force: 1200N
  • 24V brushless motor
  • Gate area: up to 16.9m²
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,54 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

NICE SPIDER1200BLW Head, Brushless Motor, Built-in Wi-Fi Module


PURPOSE OF THE DRIVE:
Automation of garage doors with a surface area of:
The SPIDER 1200 is an electromechanical actuator for automating sectional, protruding, and non-protruding swing doors with a brushless motor and built-in Wi-Fi module.
It is designed for intensive use thanks to its new brushless motor (up to 150 cycles per day) and a control unit that can be expanded with accessory modules to increase the number of inputs or outputs.

Spider can also be integrated into the Yubii ecosystem. Control via the Yubii app.

The control unit included with the gate opener, in addition to powering the DC motor, enables excellent torque and speed regulation of the gearmotor, precise position limiter reading, gradual start and close, and obstacle detection. It is also equipped with an internal counter that allows recording of the gearmotor's movements throughout its entire use period.

The integrated standby power module guarantees 90% lower energy consumption when the product is in standby mode.

Compatible


Always connected thanks to the new built-in Wi-Fi module. It allows you to control, manage, check, and know everything about your garage door automation anywhere and at any time using your smartphone.

Security:

  • Anti-theft function: If an attempted break-in is detected, a notification will be received via the MyNice app and a new closing maneuver will be automatically triggered.
  • Eye Check, a visual inspection system: Green and red LEDs built into the motor signal potential problems/maintenance requirements or show that everything is running smoothly.
Designed with sustainability in mind. Made of 80% recycled plastic.

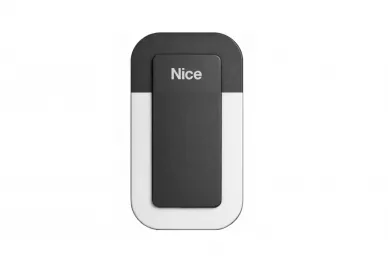

The MYGO4 remote control provides dynamically rolling code radio control at a frequency of 433.92 MHz, ensuring a high level of user security and making the code impossible to copy.
MYGO4 has a secret code called the "ENABLE CODE." By transferring this code from the memorized transmitter to a new transmitter, the latter is recognized (and remembered) automatically by the receiver. The MYGO4 transmitter can be programmed using the ProView device. By default, the remote control is configured in one-way mode with radio coding "O-Code."

TECHNICAL DATA:

  • Power supply: 230 VAC 50/60 Hz
  • Current: 1.5A
  • Power: 240W
  • Standby power: less than 1W
  • Speed: 0.16m/s
  • Force: 1200N
  • Work intensity: 150 cycles/day
  • Protection rating: IP40
  • Operating temperature: -20°C / +55°C
  • Dimensions: 225 x 395 x 105.5 mm
  • Weight: 6.7 kg
