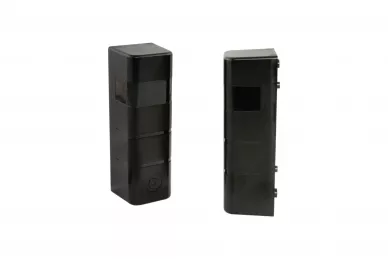

Photocell Proxima PMBB Bluebus

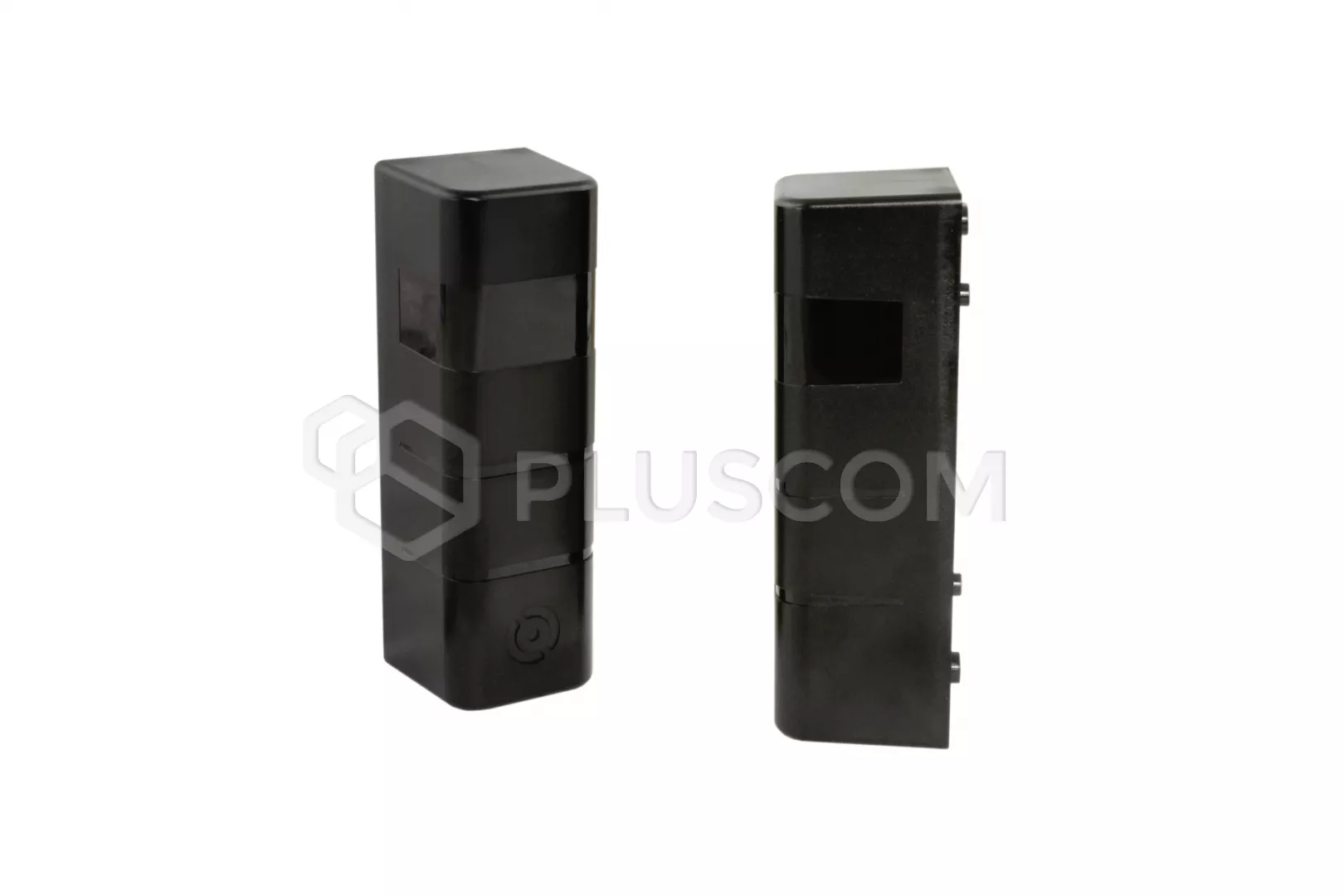

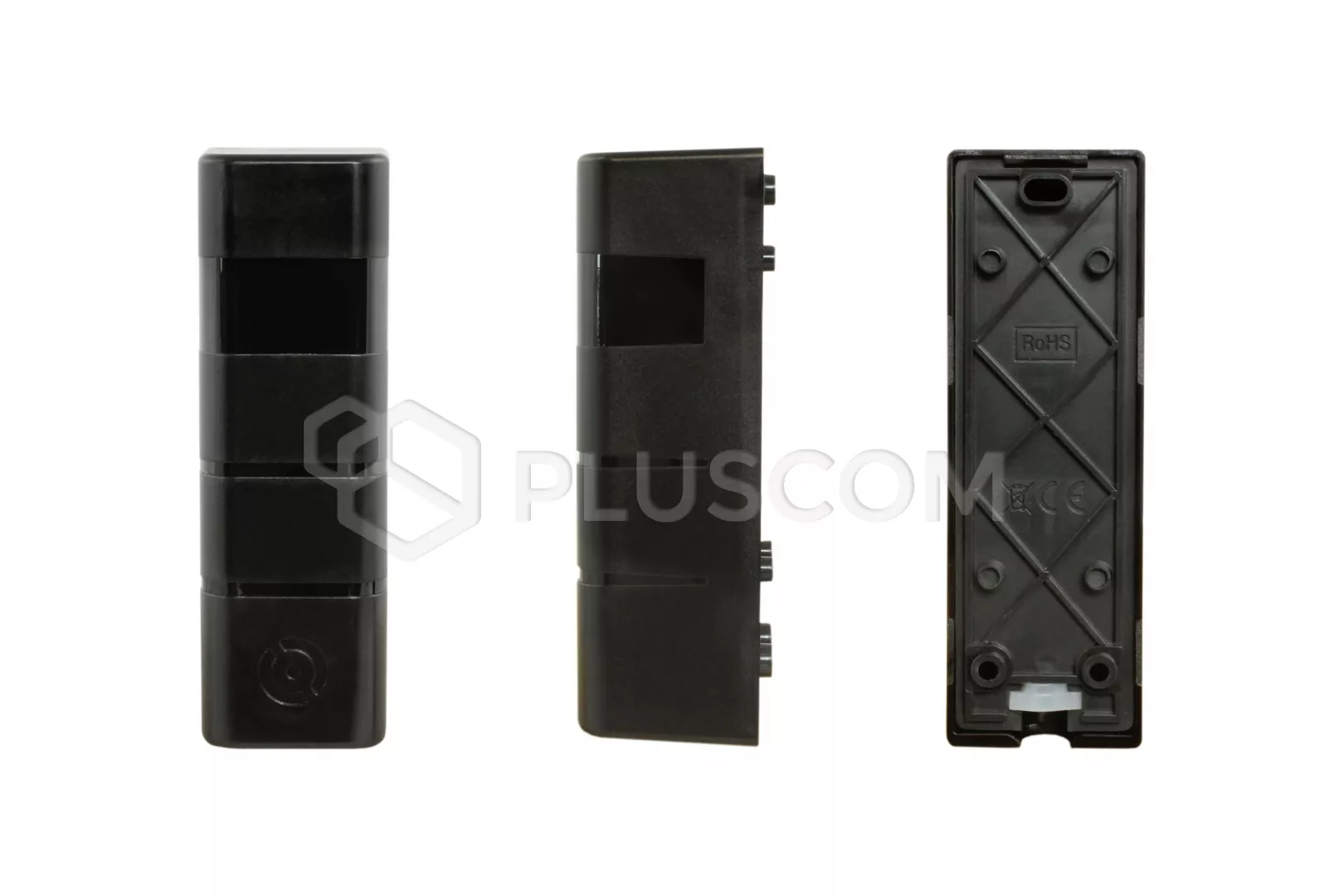

Photocell PROXIMA PMBB BLUEBUS

The modern PMBB BLUEBUS photocell is one of the elements of gate automation. It is compatible with the BLUEBUS NICE and MOOVO syste
A great advantage of the photocell is its rotatable head (190 °), thanks to which assembly of PMBB BLUEBUS, can be both inside and outside the door. The receiver's LED blinks help determine where the range limits are. IN when the photocell is set at the border, the LED of the receiver starts quickly flash.

THE FOUR POWER OF THE TRANSMITTER make the photocell a universal device. Thanks power setting options, we can use it for gates of various widths, thus avoiding reflection problems.

TECHNICAL PARAMETERS

• supply voltage: 12V BB bus
• transmitter power consumption (full power): 12V-10mA
• receiver power consumption: @12V-10mA
• wavelength: 950nm
• working temperature: od -20°C do +60°C
• transmit and receive angle: +/- 5° rotation 190°
• range: ok. 15m
• IP54
• dimensions: 103 x 34 x 32mm
