Nice TCA65 Aluminium profile 2mb

13,32 EUR including 23.00% VAT

Add to cart

On stock. Ships in one business day

Product code: #4516

Manufacturer: Nice

Ask about this product

Mounting profile for TCB resistive sensitive edge
Safety class 3 according to EN 954-1

Delivery and tax:

Poland VAT: 23.00% change

Shipping cost from:

2,53 EUR

Payment methods:

We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:

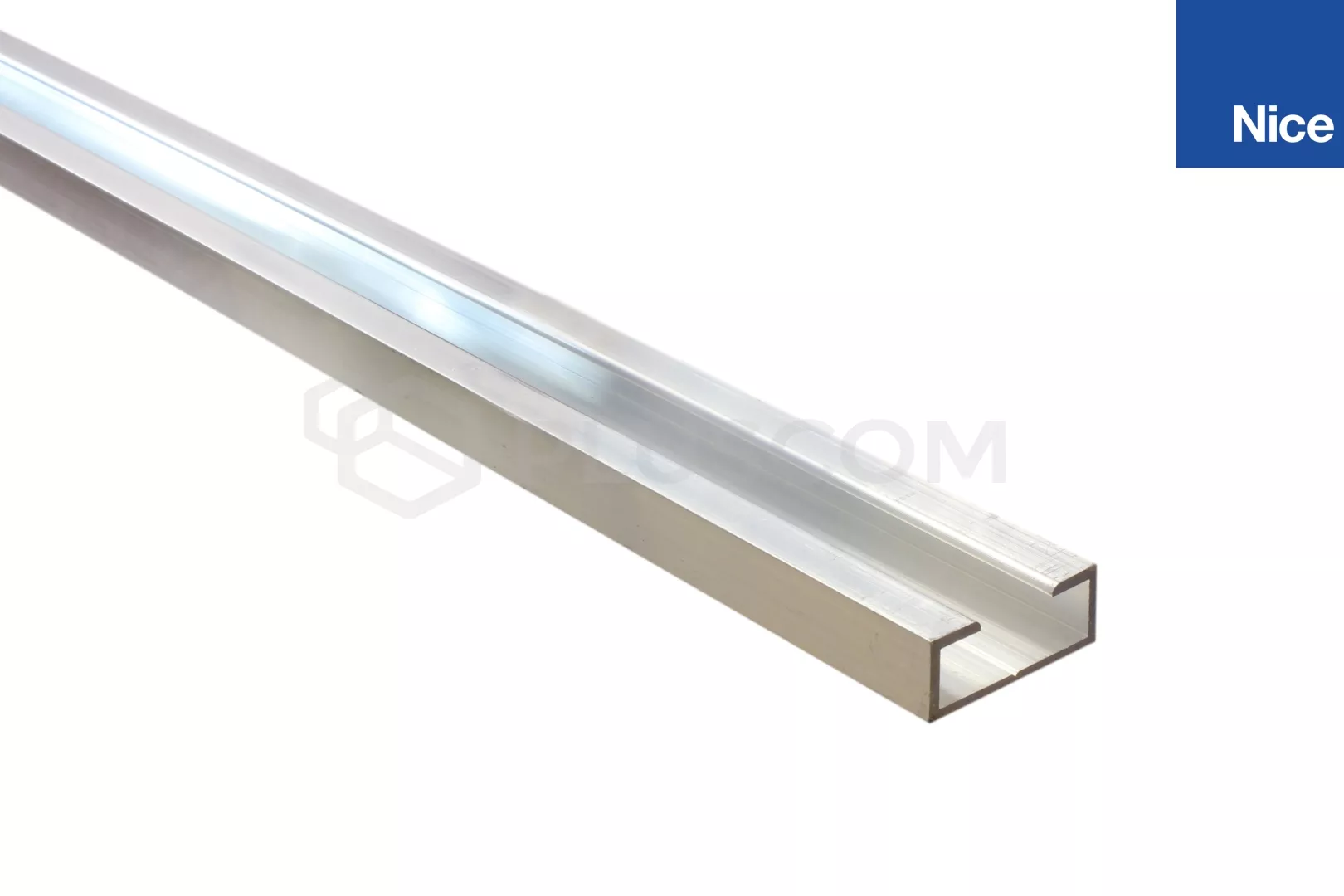

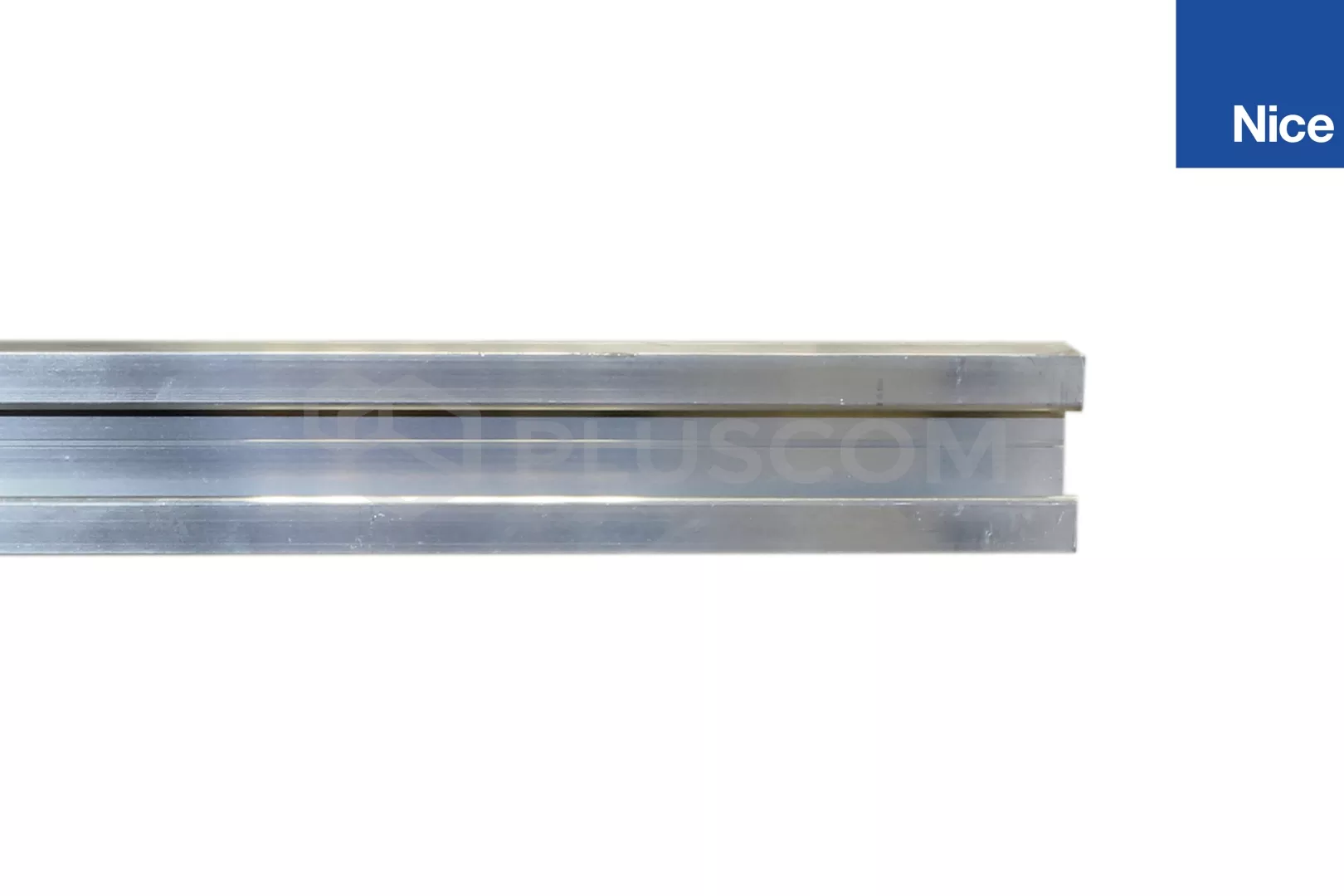

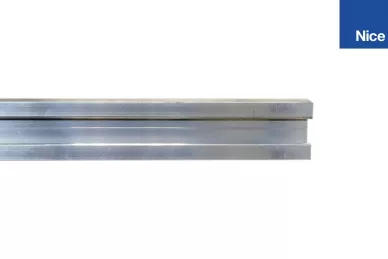

Nice TCA65 aluminium profile

Sensitive edges accessory, aluminium profile L=200 cm
Dimensions: 35x14mm

Nice TCA Aluminium profile

TCB, 8.2 kΩ resistive sensitive edge significantly increases the safety of automatic gates. Edge diminishes the potential impact. The pressure causes the short circuit, which in turn produces adequate response in automation systems to reverse the movement of the gate.

TCA profile allows mounting TCB edge in a necessary place; should be attached using the 4mm rivets or 3.5mm screws with countersunk (doing the appropriate slot in the aluminium profile). Place mounts at both ends of the profile and every 30 cm.

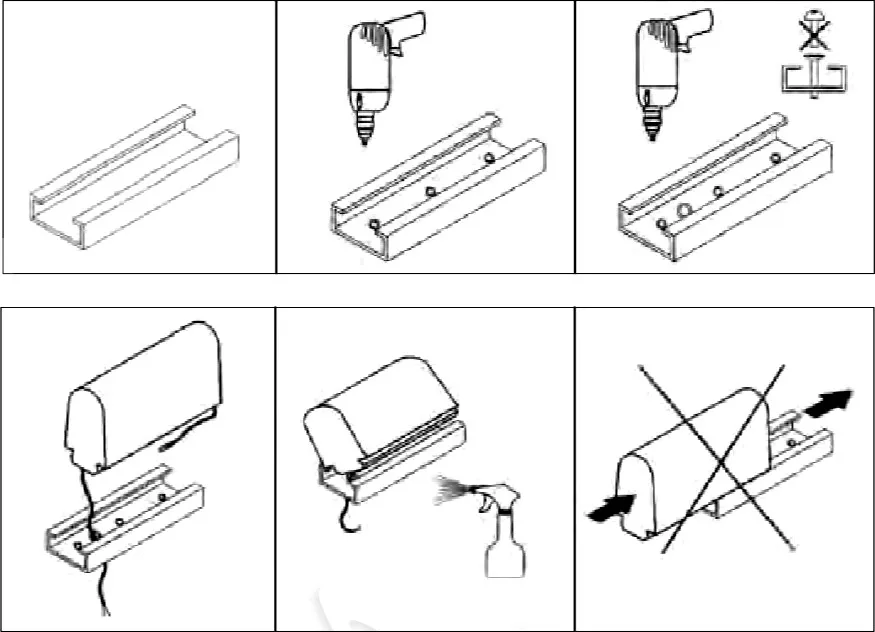

Edge installation:

To insert installed TCB into the aluminum profile, start from one end. Good to moisten the two parts with soap and water to make it easier. Do not use oil to lubricate because it doesn't dry, and over time could lead to eject the edge. Do not pull the edges in order to move it, as this may cause damage to the conductive elements.

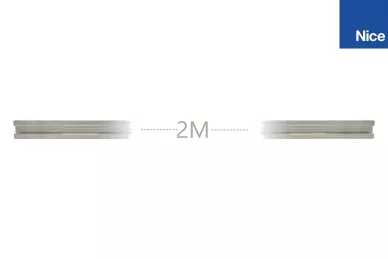

Nice TCA Aluminium profile 2m
