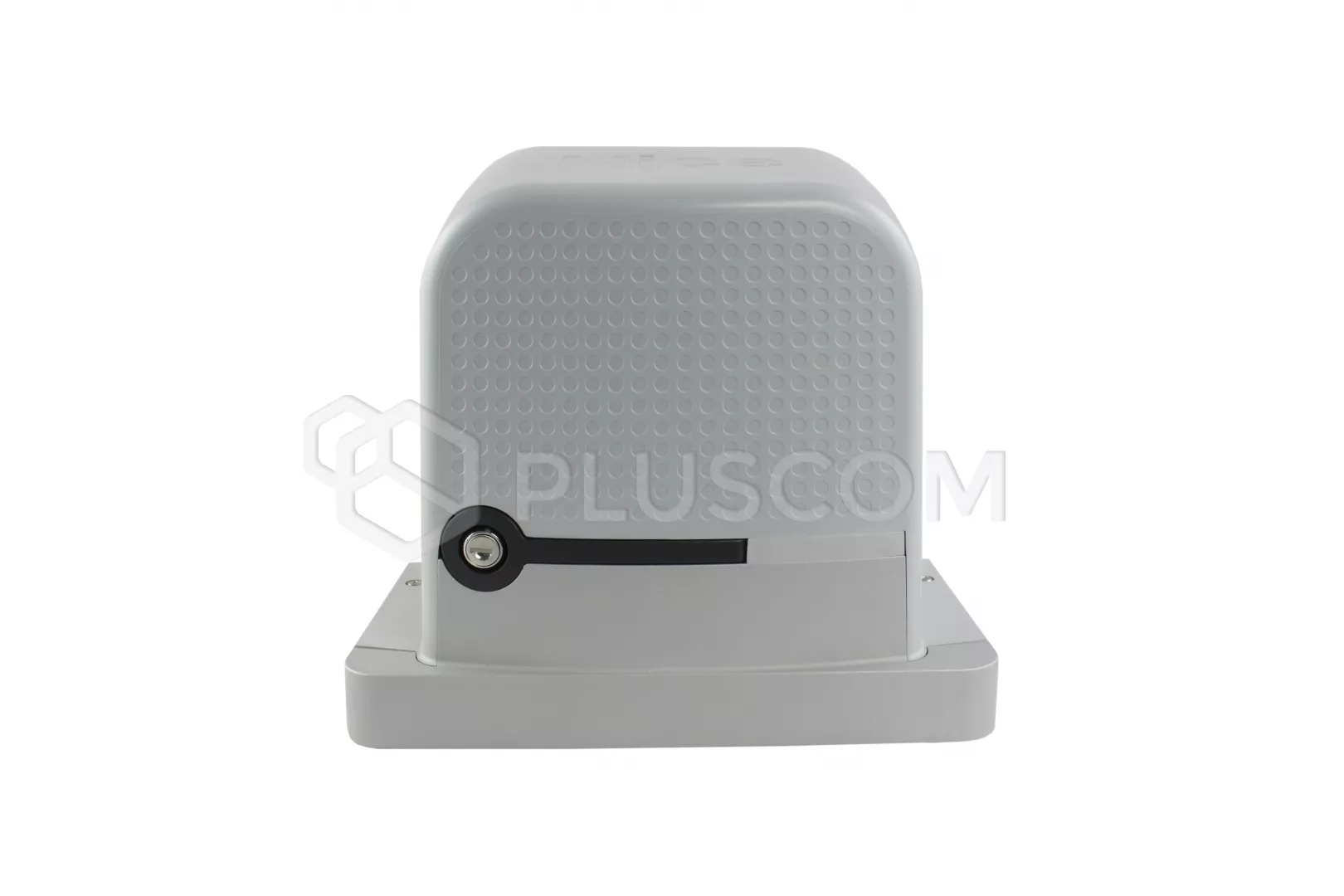

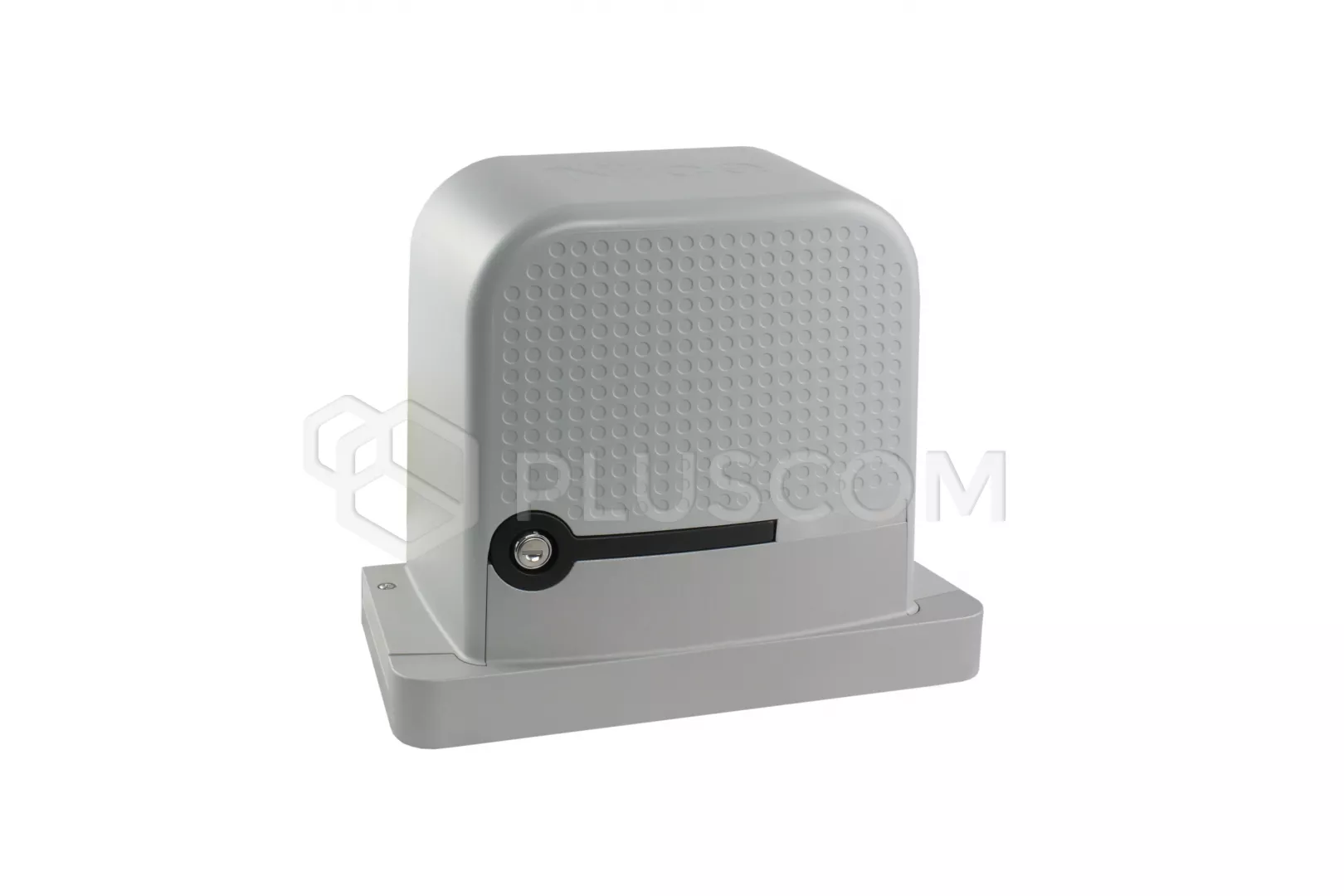

Nice Robo 600 gear motor with built-in control unit

NICE ROBO600 drive for sliding gates weighing up to 600kg with built-in control unit and radio receiver, designed for private use

It is distinguished by ease of assembly, aesthetic design, excellent parameters and reliability. Efficient, practical and fast actuator, it is characterized by minimalist design with exceptionally clean lines, shapes and colors. The easy-to-use release lever makes it easier unlocking the gate in case of power loss. New 50% longer lever the release provides a better grip allowing the user to hand Much less force is needed to open the gate.

WE PROVIDE:

• actuator with built-in control unit
• 433.92 MHz radio receiver integrated with the electronics board

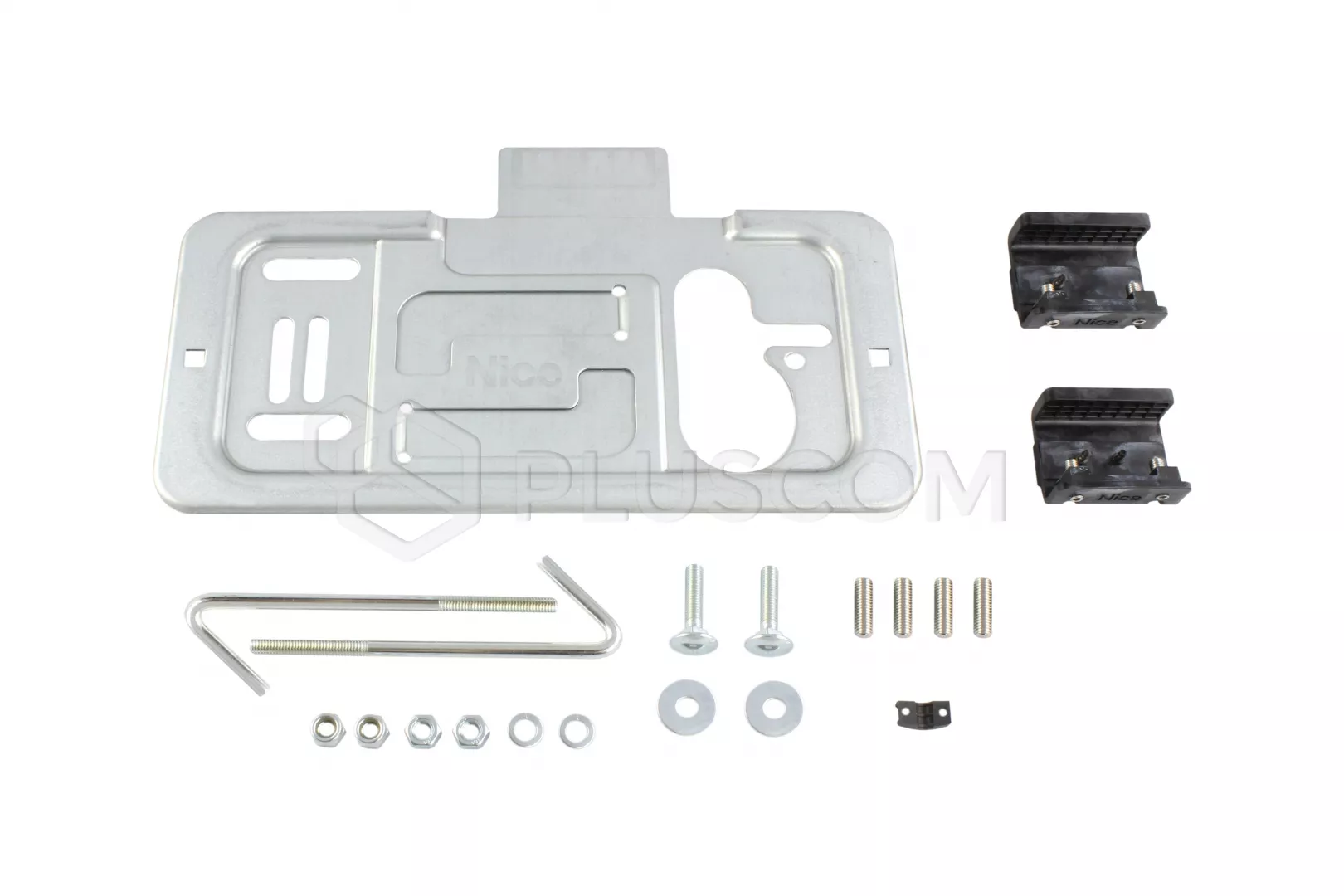

• a set of mounting accessories and a mounting plate

Key features:

• The

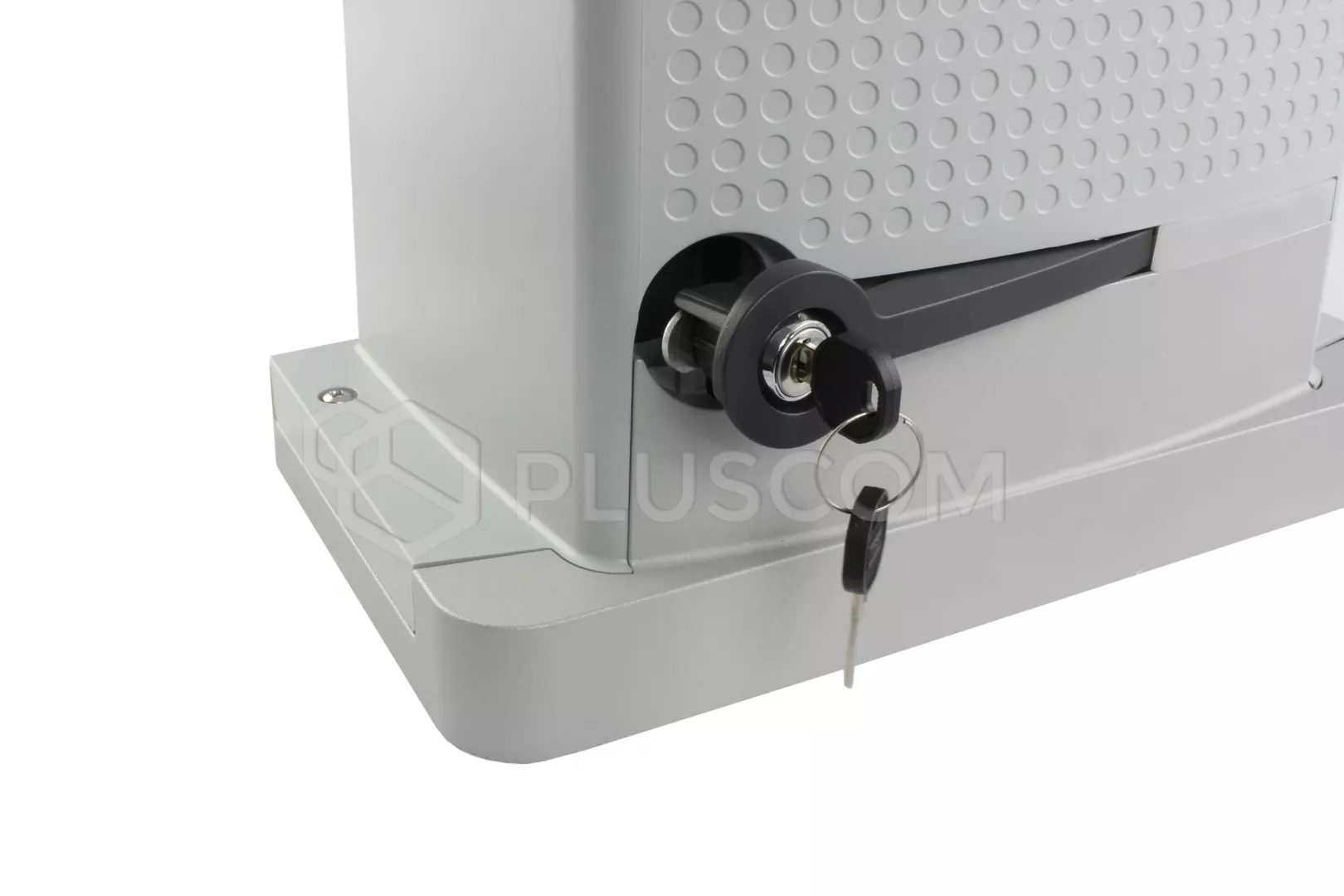

• release lever also locks the lid to the base for a secure fit protection of the automation, and is part of the new system anti-theft
• the lid is made of 75% recycled ABS (acrylonitrile butadiene styrene), a thermoplastic polymer \ used for creating light and rigid elements
• at a speed of 0.18 m/s, the Robo600 is able to open a four-metre wide gate in just 22 seconds
• Robo600 is equipped with a BUS T4 port for connecting interfaces BIDI-WIFI, BIDI-ZWAVE and IBT4N
• new base compatible with current Nice sliding gate operators (applies to spacing of foundation anchors)
• the ability to connect to smart home systems using Z-Wave™, and thanks to the BiDi Z-Wave
• module
• the actuator works with any 230V signal lamp with an automatic one blinking

Reliability
Robo600 is resistant to all weather conditions, from extremely cold and windy to very hot. He's also not afraid of sand. Its durability thanks to the redesigned gearbox, as well as the use of a new one synthetic grease. Elements are also an important factor in resistance mechanical made of new special material.

Robo600 can be controlled, managed, and checked remotely thanks to connected via WiFi or ZWave plug-in module. As a result, the user has full control and the possibility of automation by creating different scenarios using Z-Wave, Nice BiDirectional radio protocol, or a control panel, e.g. Yubi Home.

SPECIFICATIONS

• Nominal power supply: 230 V - 50/60 Hz
• Nominal power: 300 W
• Pinion Z: 15; Modulus: 4; Pitch: 12.5 mm; Primitive diameter: 60 mm
• Peak thrust: 18 Nm
• Nominal torque: 9 Nm
• Speed (no load): 11 m/min
• Nominal torque speed: 8.5 m/min
• Operating cycles: 20 cycles/hour
• Maximum continuous operating time: 4 minutes
• Electrical isolation: class 1 (a safety grounding system is required)
• Flasher output: for 1 flasher 230V~ auto-intermittent (max 60W)
• STOP input: for NC contacts (a variation with respect to the closed state causes the command “STOP”)
• Sbs input: for NO contacts (closing of the contact causes the “STEP-BY-STEP” command)
• PHOTO Input: for NC contacts (a variation with respect to the closed state causes a manoeuvre reversal during the closure due to the detection of the photocell beam interruption)
• Radio AERIAL Input: 52 Ω for RG58 or similar type of cable
• Radio receiver Incorporated:
• • 4 channel receiver for incorporated radio command
  • frequency: 433.92MHz
  • transmitter compatibility: O-CODE coding
  • ttransmitters memorized: up to 100 if memorized in mode 1
  • input impedance: 52Ω
  • sensitivity: better than 0.5 μV
  • range of the transmitters: from 100 to 150 m
  • operating temperature: -20°C ~ +55°C
• operating temperature: -20°C ~ +55°C
• protection class: IP 44
• Dimensions: 330 x 210 x 303mm
• Weight: 11 kg
