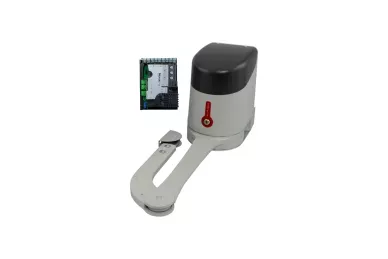

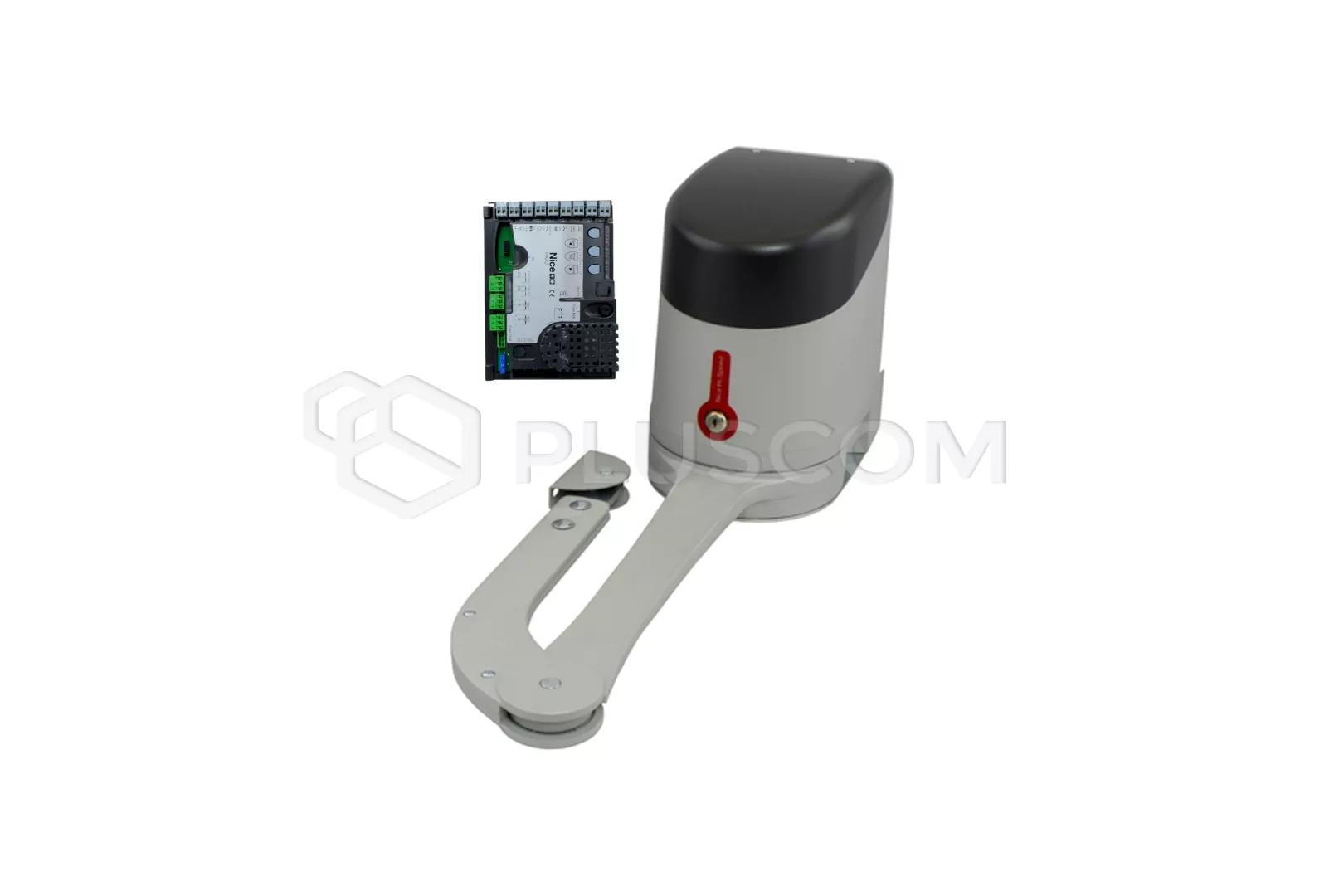

NICE HK7024HS - self-locking actuator with
built-in HKA2 control unit 3m/270kg
New, faster HI-SPEED actuator. Ideal for intensive use.
Opening to 90° can take up to 10 seconds.
Electromechanical actuators with an articulated arm for swing gates with a leaf length of up to 3m and a weight of up to 270kg, for installation
on very wide posts, with a hinge depth of up to 40 cm.
Easy installation and adjustable arm length. Revolutionary two-wire BLUEBUS connection system.

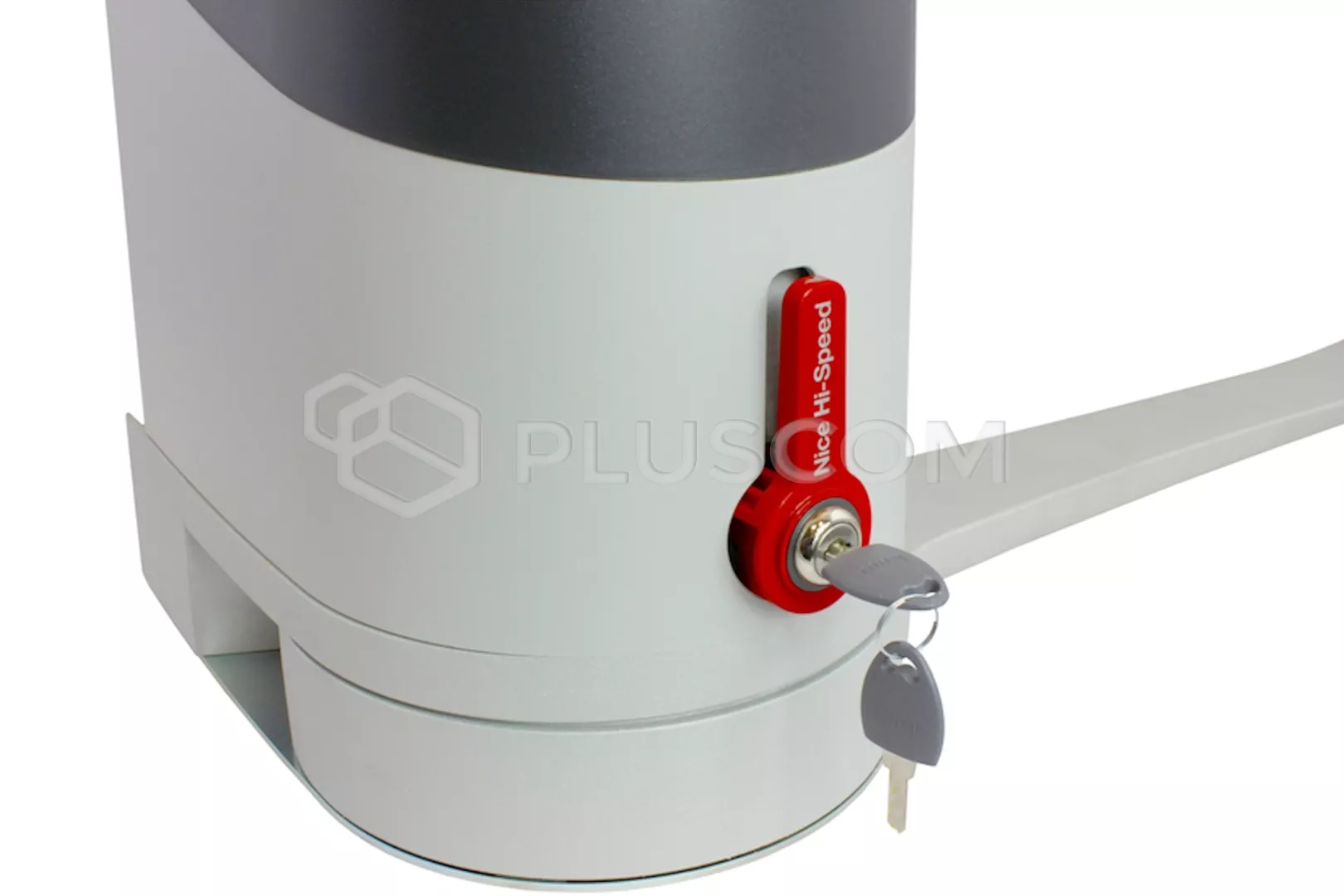

Emergency release:
A user-friendly, easy-to-use emergency release mechanism in the event of a power failure, with a metal key and cylinder lock. Easy installation without welding, brackets screwed to the gate post and leaf.
The articulated arm, consisting of a straight and curved section, has an adjustable length, allowing (after shortening it) the actuator to be installed in tight corners
of the property.
The actuator has built-in mechanical opening and closing limit switches with very precise adjustment.

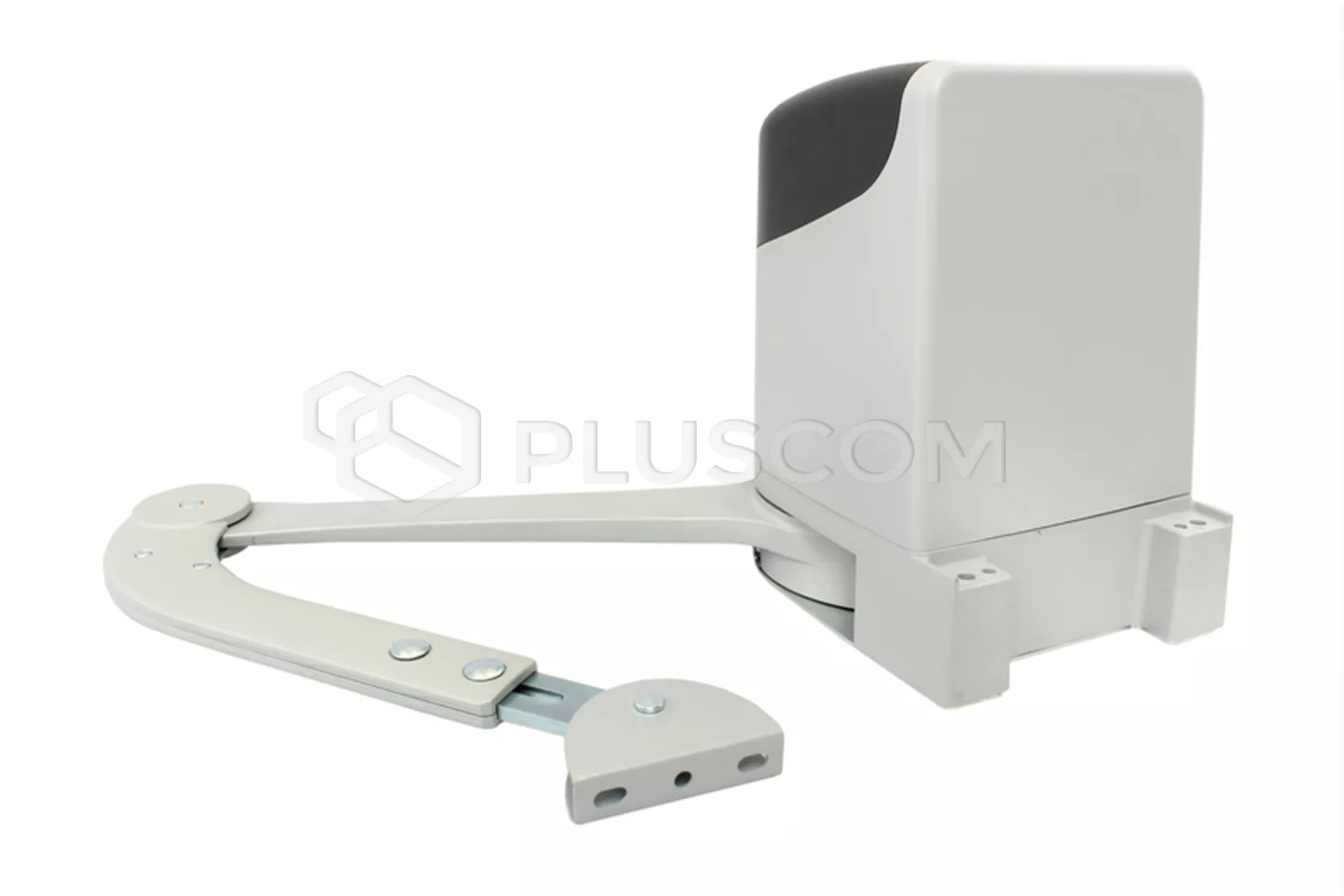

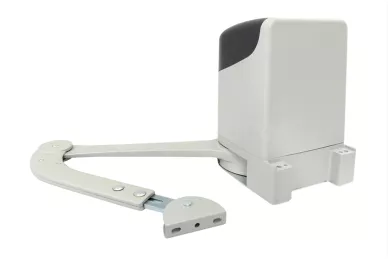

Length adjustment of the arm:
The modern three-stage drive transmission design provides enormous
power. The actuator's gear system has three gear ratios:
- worm gear,
- pair of spur gears,
- satellite gear at the drive output
Output torque - up to 500 Nm in a 24V motor!

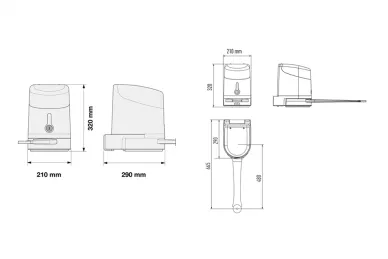

Dimensions:
Features of the HKA2 control unit:
- Built-in motor
- BLUEBUS technology
- Auto-programming - motors automatically
memorize the gate's end positions during programming.
- Advanced: only three programming buttons, adjustable operating mode,
opening time, etc.
- Partial gate opening function (pedestrian function)
- Always works: thanks to the PS124 battery (optional), the motors will open and
close the gate, even in the event of a power outage.
- Obstacle recognition
- Possibility to set parameters using O-View
- Control unit compatible with OPERA and SOLEMYO systems
