Nice HYKEHS Base set

1619,12 EUR including 23.00% VAT
On stock. Ships in one business day
Product code: #22818
Manufacturer: Nice
  • maximum leaf width 3m, maximum leaf weight 270kg
  • magnetic encoder
  • 24V AC motors
  • auto programing, works with Oview, BLUEBUS intput
  • SM, OXIBD radio connector
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Nice ELDC LED flashing signal light 12/24V Nice PS124 24 V battery with integrated battery charger Nice PLA10 Electric lock vertical Nice PLA11 Electric lock horizontal Nice KIO Key-operated selector switch with cord-type release Nice KA1 6m cable release kit for KIO

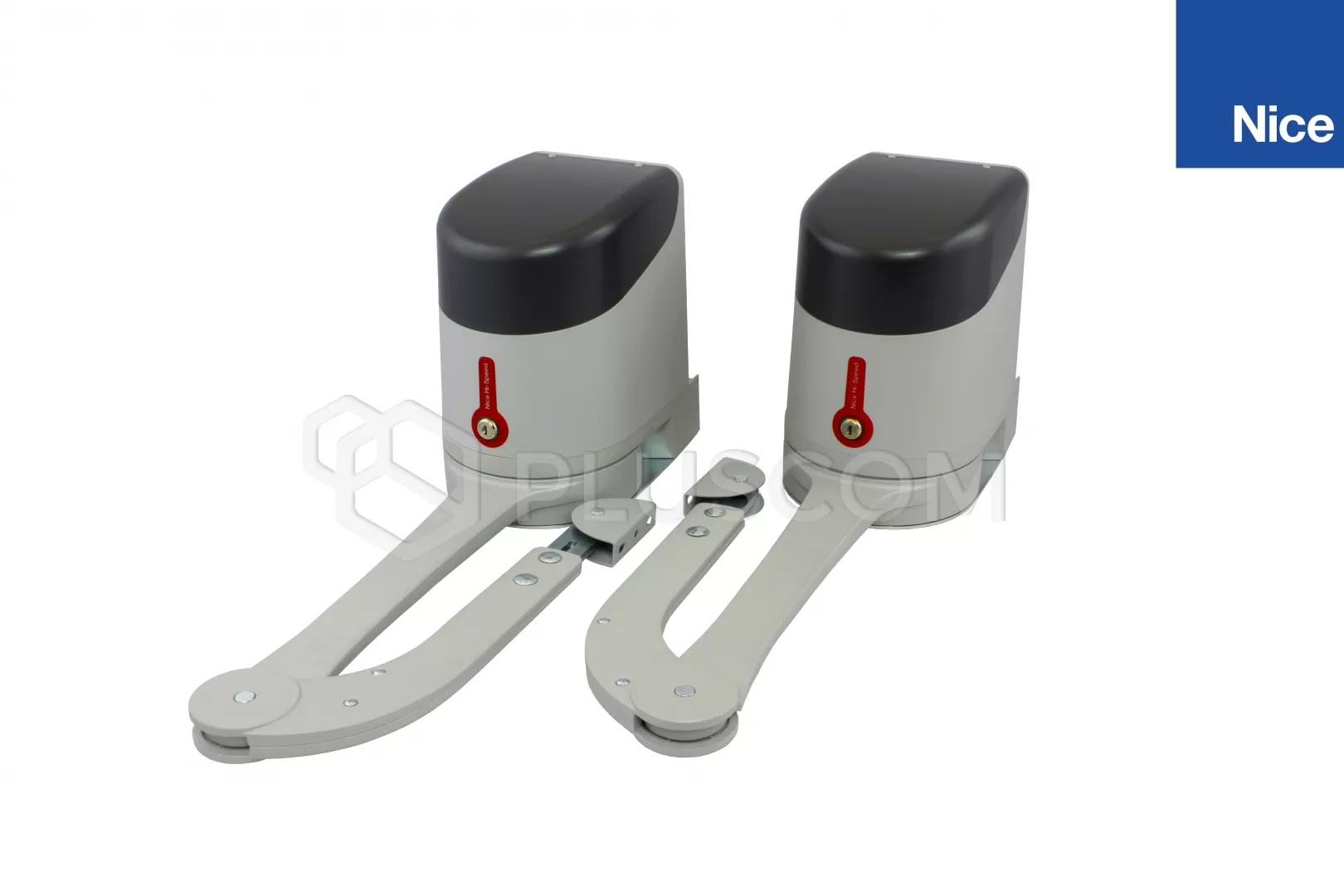

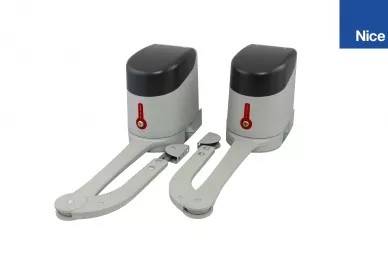

Nice HYKEHS Set for a double-leaf gate with built-in HKA2 control panel HI-SPEED version


KIT CONTENTS:
Nice HYKEHS Set for a double-leaf gate with built-in HKA2 control panel

Nice HYKEHS Set for a double-leaf gate with built-in HKA2 control panel

Electromechanical actuators with broken arm for swing gates leaf length up to 3m and weight up to 270kg , for mounting on very wide posts, up to 40 cm deep in the hinge. Easy assembly and possibility adjustable arm length. A revolutionary two-wire connection system BLUEBUS.

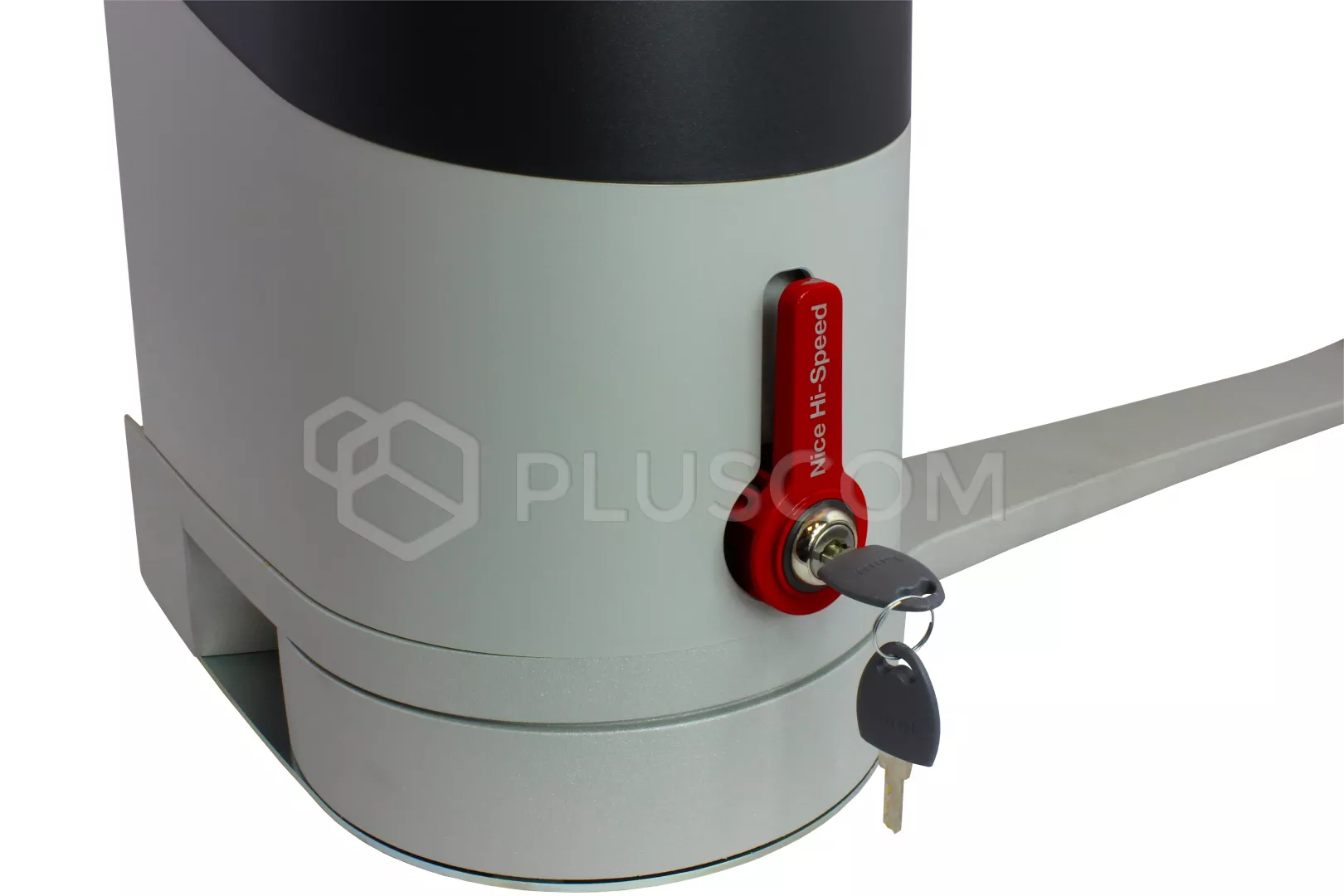

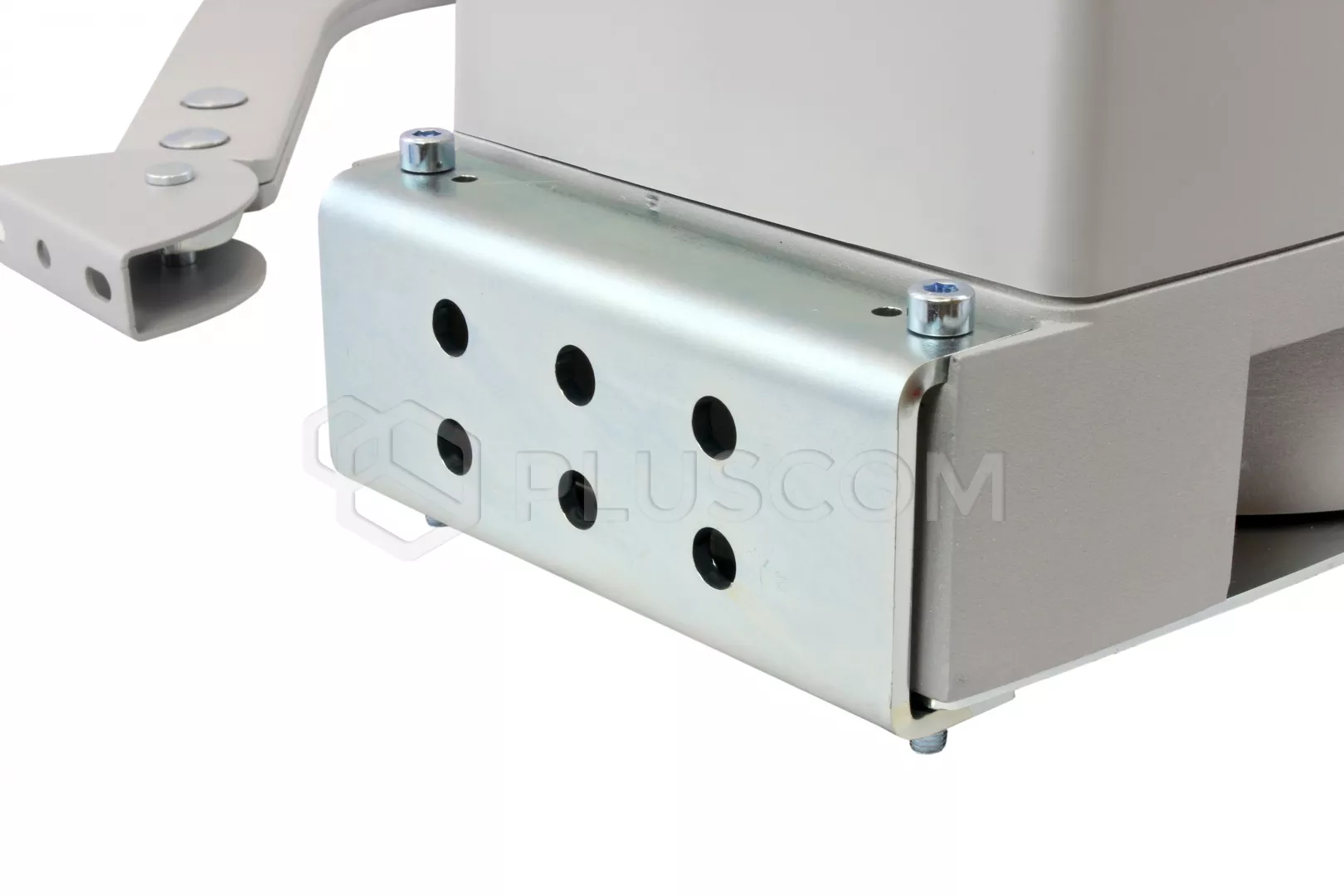

Friendly, easy to use emergency release mechanism in case no voltage, with a metal key and patent cylinder. Easy installation without welding, handles screwed to the post and gate leaf.

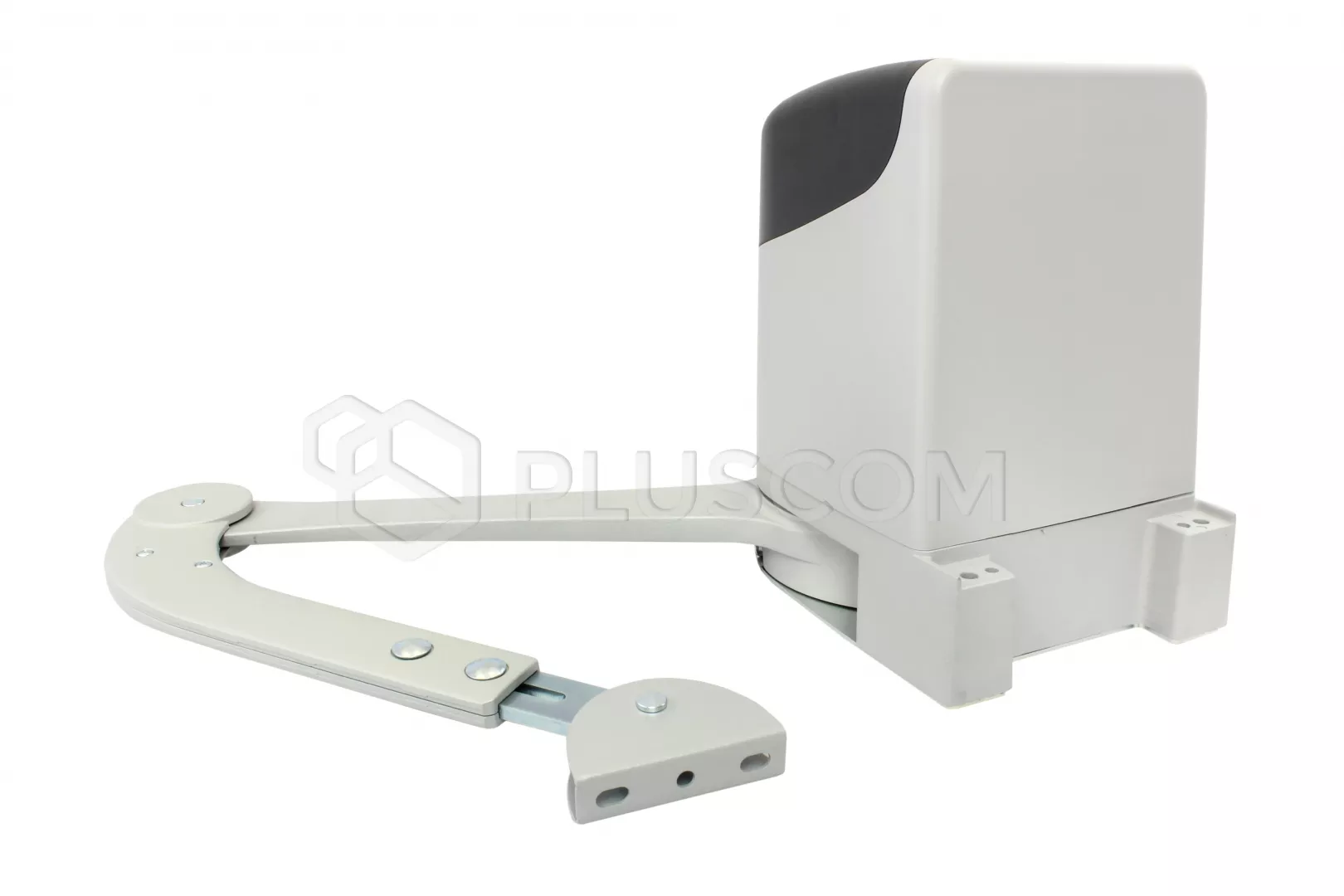

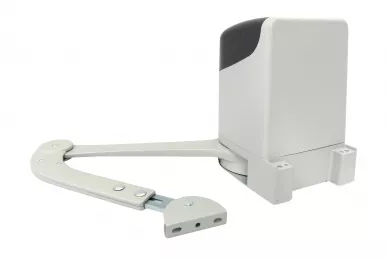

The broken arm, consisting of a straight and curved part, is adjustable length, which allows (after shortening) the actuator to be installed in a narrow corner property.

The actuators have built-in mechanical limit switches for opening and closing very fine adjustment.


Features of the control panel HKA2:

  • built in one of the cylinders
  • BLUEBUS technology
  • autoprogramming - servomotors during programming automatically save the end positions of the gate
  • advanced: only three programming buttons, adjustment of the operating mode, opening time etc.
  • partial gate opening function (wicket function)
  • always working: thanks to the PS124 battery (option), the actuators will open and will close the gate even in the event of a power outage
  • control panel compatible with OPERA and SOLEMYO systems
ACTUATOR PARAMETERS:

HK7024HS
  • motor power supply: 24V
  • nominal current: 1.5A
  • power consumption: 300W
  • speed: 2 rpm
  • work intensity: 40 cycles/h
  • working temperature: -20°C ... + 50°C
  • degree of protection: IP54
  • weight: 10.5


HK7024HS
  • motor power supply: 24V
  • nominal current: 6A
  • power consumption: 140W
  • speed: 2 rpm
  • work intensity: 40 cycles/h
  • working temperature: -20°C ... + 50°C
  • degree of protection: IP54
  • weight: 9.5
Download
User Manual 6.3 MB
