Faac HANDY Kit For double-leaf gates up to 2.7m in length
A complete swing gate kit, suitable for swing gates up to 2.3 meters long (or
2.7 meters with an electromagnetic lock). The maximum weight of a single gate
should not exceed 200 kg.
|

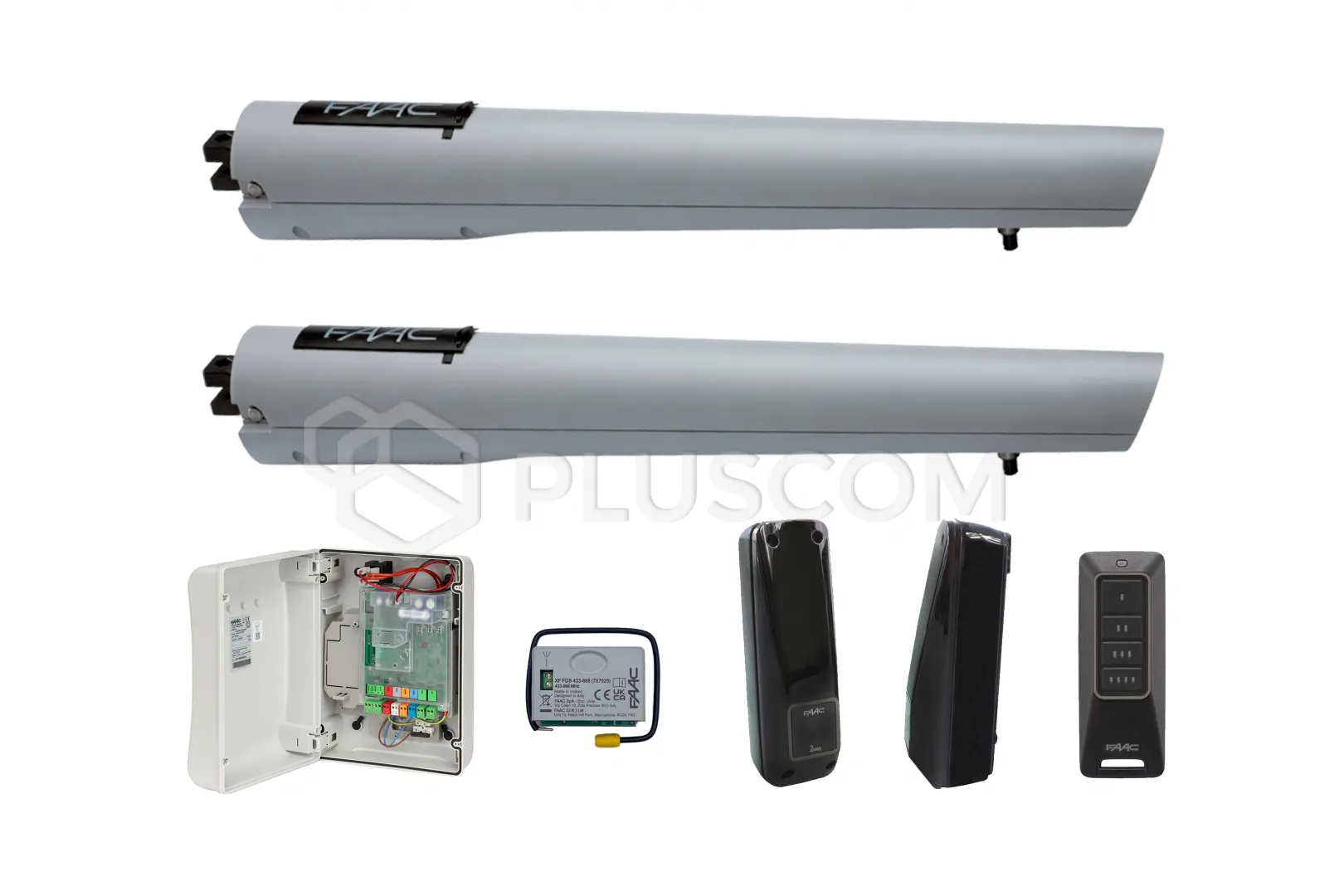

KIT INCLUDES:
|
Faac HANDY Kit For double-leaf gates with a leaf length of up to 2.7 m
|
Electromechanical operator with a 24V motor S418 is an external
electromechanical operator designed for swing gates with a leaf length of up to
2.7 meters, in small residential and commercial buildings. It ensures fast and
smooth opening and closing of the gate. The high and adjustable speed allows
you to adapt the gate movement to your needs.
Installation of the operator is flexible and easy thanks to multi-position
brackets that allow for assembly without the need for welding. These brackets
allow for perfect adaptation to various types of gates.
Thanks to integrated mechanical opening and closing stops, there is no need to
install external mechanical stops, simplifying installation.
The E034 control unit features an intuitive user interface,
featuring a display and programming buttons that significantly simplify
installation and maintenance. This allows installers to reduce intervention
time and improve operational efficiency. Thanks to its advanced
programmability, the control unit allows for the configuration of numerous
parameters and logic, allowing it to be adapted to various types of gates. A
convenient display and LEDs provide intelligent diagnostics. For even more
precise management, the Simply Connect platform enables full remote control.
E034 Control Unit FUNCTIONS:
- Display
- BUS bus
- STOP input
- Lamp output (24V)
- Electric lock output
- 3-pin OMNIDEC receiver input
- Programmable output (OUT 1)
- Number of operating logics: 7
- Force adjustment: range: 1-50, individually adjustable for each leaf
- Opening/closing speed adjustment: range: 1-10, uniform in both directions
for both leaves
- Manual actuator operation (N1, N2)
- Opening slowdown distance: range: 0-99, individually adjustable for each
leaf.
- Closing slowdown distance: range: 0-99, individually adjustable for each
leaf.
- Opening delay adjustment (Od): range: 00 - 1.3
- Closing delay adjustment (Cd): range: 00 - 1.3
- Soft touch
- Soft start
- OPEN A pause time adjustment (PA): range: 00 - 9.5
- OPEN B pause time adjustment (Pb): range: 00 - 9.5
- Pedestrian function
- Obstacle detection sensitivity adjustment (EC): range: 01 - 10
- Auto setup function
- XLC low power module
- FDS compatible (via OMNIDEC)
- Simply Connect compatible
The FAAC XT4 FDS 433-868 SLH LR remote control enables
convenient and effective control of automation systems. Thanks to advanced
technology, the remote control features a rolling code, ensuring a high level
of security and protection against unauthorized access. It is characterized by
maximum anti-cloning protection. This is ensured by an advanced security scheme
based on Secure Vault hardware technology (PSA level 3 certification) and
TrustZone, a state-of-the-art method for securing digital financial
transactions and IoT High Security devices/networks. FDS is a frequency
modulation-based radio protocol with the highest performance in terms of range
and battery life; radio transmission is secured by an AES-128 symmetric
encryption algorithm with a 128-bit key. The authenticity of the remote
controls is verified using a chain of personalized FAAC security certificates.
The modern XP 20B D photocell with a 180° horizontal viewing
angle is equipped with a vertical optical self-adjustment function,
particularly useful when the monitored area is not completely flat.
The device is equipped with a BUS power supply system – only two non-polarized
wires, allowing up to 16 pairs of photocells to be connected.
The XP 20BD is protected against interference from external light sources
(e.g., vehicle headlights).
TECHNICAL DATA:
- Power supply: 24V
- Nominal power: 35W
- Current consumption: 1.5A
- Maximum thrust force: 180daN
- Piston stroke: 350mm
- Speed: 1.8 cm/s
- Maximum leaf length: 2.7m
- Type and frequency of use at 20°C: 80 cycles/day>
- Subsequent cycles at 20°C: 30
- Protection class: IP54
- Operating ambient temperature: -20°C +55°C
- Weight actuator: 6 kg
- Dimensions: 823x104x137 mm
