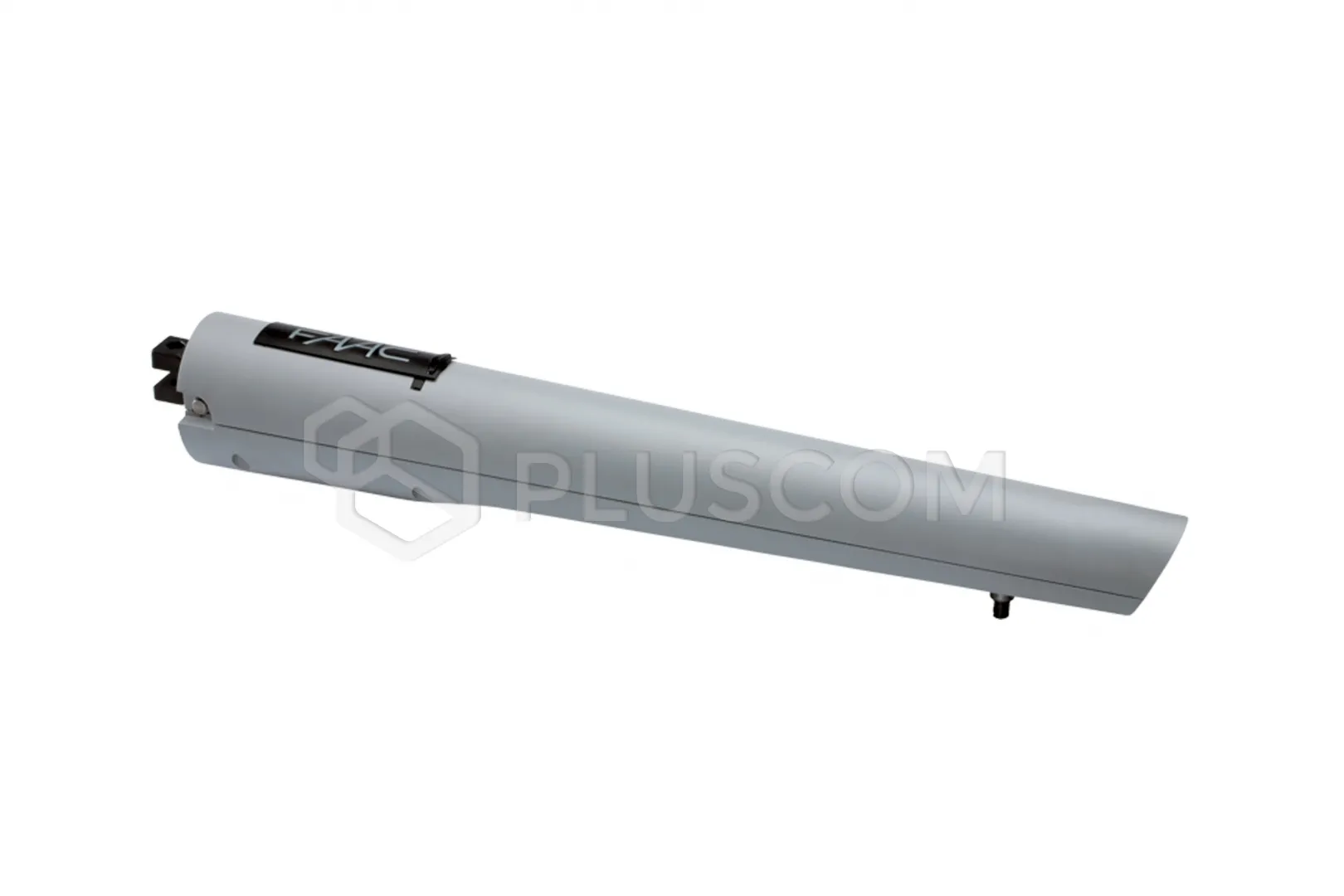

Faac S418 actuator for swing gates with a leaf length of up to 2.7 m

Product code: #43901
Manufacturer: Faac
  • Leaf length up to 2.7m
  • Leaf weight up to 200 kg
  • 24V engine power supply
  • Usable working stroke 350 mm
  • Mounting bracket allows for installation without welding
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,54 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac E024S control unit with housing Faac E124 control unit with housing Faac E034 220-240V control unit Faac Interface BUS XIB Faac Model E housing for the control unit Faac 90926 Emergency battery base Faac XBAT 24 emergency battery

Faac S418 Operator for Swing Gates with a Leaf Length of up to 2.7m


Electromechanical operator with a 24V motor. The S418 is an external electromechanical operator designed for swing gates with a leaf length of up to 2.7 meters, in small residential and commercial buildings. It ensures fast and smooth opening and closing of the gate. The high and adjustable speed allows you to adapt the gate movement to your needs.

Installation of the operator is flexible and easy thanks to multi-position brackets that allow for assembly without the need for welding. These brackets allow for perfect adaptation to various types of gates.
Thanks to integrated mechanical opening and closing stops, there is no need to install external mechanical stops, simplifying installation.

The E034, E024S and E124 control units are dedicated to the drive, and in the case of the latter (E124), a base is required for standard Pb type batteries, which are not supplied by FAAC and must have the following parameters: 12 V/4 Ah. Dimensions: 90x70x108 mm.

TECHNICAL DATA:

  • Power supply: 24V
  • Nominal power: 35W
  • Current consumption: 1.5A
  • Maximum thrust force: 180daN
  • Piston stroke: 350mm
  • Speed: 1.8 cm/s
  • Maximum leaf length: 2.7m
  • Type and frequency of use at 20°C: 80 cycles/day>
  • Subsequent cycles at 20°C: 30
  • Protection class: IP54
  • Operating ambient temperature: -20°C +55°C
  • Weight actuator: 6 kg
  • Dimensions: 823x104x137 mm
