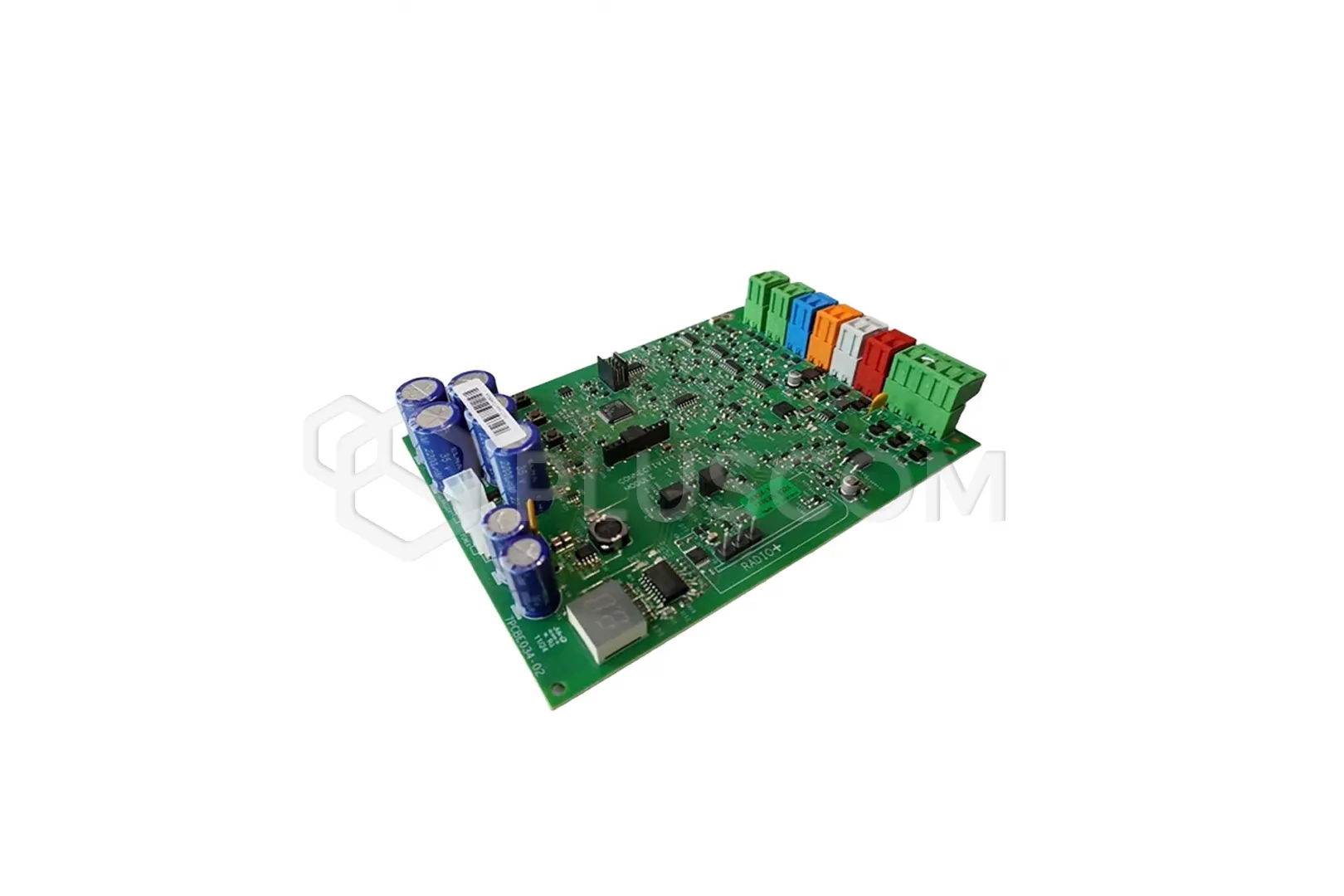

Faac E034 220-240V Control Unit
The E034 control unit features an intuitive user interface, equipped with a
display and programming buttons that significantly simplify installation and
maintenance. This allows installers to reduce intervention time, improving
operational efficiency.
Thanks to its advanced programmability, the control unit allows for the
configuration of numerous parameters and logic, allowing it to be adapted to
various types of gates. A convenient display and LEDs provide intelligent
diagnostics. For even more precise management, the Simply Connect platform
enables full remote control.
Motor Control
The innovative motor control in the E034 model ensures smooth and safe gate
movement, reacting quickly to obstacles and ensuring excellent performance.
BUS2easy
The BUS2easy system with two-wire (2-core) wiring simplifies installation and
reduces the costs associated with connecting accessories.
Compatibility and Connectivity
The control unit is compatible with all FAAC radio channels, from the
established SLH RC and DS to the new FDS, ensuring seamless integration with
existing systems.
Improved connectivity with automations thanks to Simply Connect allows you to
control automations using the app, even remotely. Remote controls can be
conveniently added and configured at any time and from anywhere. New remote
controls can be quickly added to the automation by scanning the barcode printed
on the remote control or its packaging. Additionally, the Simply Connect
platform offers flexible management, with the ability to activate or deactivate
remote controls and set specific time intervals to meet operational needs.
The E034 control unit is designed for low energy consumption, with the option
to further reduce standby power consumption with the XLC (Low Energy Kit)
accessory to less than 0.5 W in compliance with the new EU Ecodesign
Regulation. It is also compatible with solar panels, providing an
environmentally friendly off-grid solution. The XBAT backup battery ensures
continuous operation even during power outages.
E034 Control Unit FUNCTIONS:
- Display
- BUS bus
- STOP input
- Lamp output (24V)
- Electric lock output
- 3-pin OMNIDEC receiver input
- Programmable output (OUT 1)
- Number of operating logics: 7
- Force adjustment: range: 1-50, individually adjustable for each leaf
- Opening/closing speed adjustment: range: 1-10, uniform in both directions
for both leaves
- Manual actuator operation (N1, N2)
- Opening slowdown distance: range: 0-99 adjustable individually for each
leaf.
- Closing slowdown distance: range: 0-99 adjustable individually for each
leaf.
- Opening delay adjustment (Od): range: 00 - 1.3
- Closing delay adjustment (Cd): range: 00 - 1.3
- Soft touch
- Soft start
- OPEN A pause time adjustment (PA): range: 00 - 9.5
- OPEN B pause time adjustment (Pb): range: 00 - 9.5
- Pedestrian function
- Obstacle detection sensitivity adjustment (EC): range: 01 - 10
- Auto setup function
- Low energy consumption module XLC
- FDS compatible (via OMNIDEC)
- Simply Connect compatible
TECHNICAL DATA:
- Mains voltage: 220-240V ~ 50/60Hz
- Maximum power: 350W
- Standby power: 4.4W
- Standby power with XLC module: 0.5W
- Standby power with XLC module and Simply Connect: 2W
- Max. Electric motor voltage: 24V
- Maximum motor power: 340W (170W per motor)
- Maximum accessory current: 24V 500mA, BUS 2easy 300mA
- Maximum signal lamp voltage: 24V 15W max.
- Protective fuse: F2.0A - 250V
- Protection rating: IP54
- Operating ambient temperature: -20°C / +65°C
