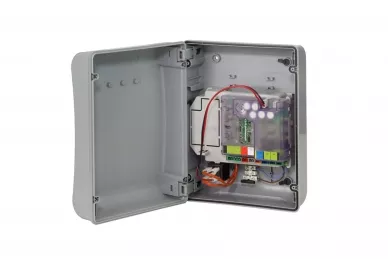

Faac E024S control unit with housing

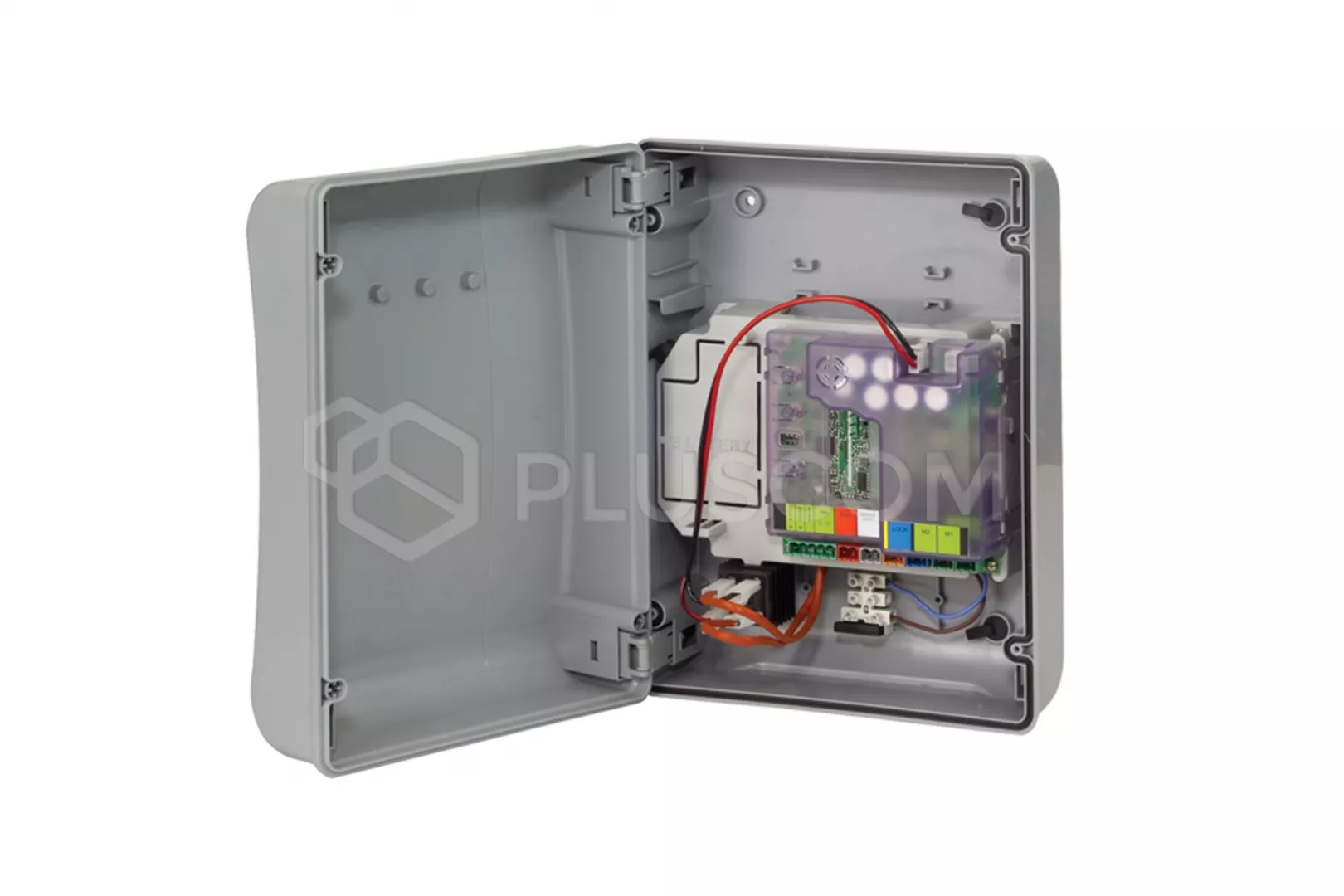

Faac E024S control unit with plastic housing included

The E024S control unit, thanks to the use of new technologies, is only compatible with XF 433/XF 868 frequency modules, equipped with 3-pin quick connector and with XP 20B D photocells via BUS connection 2easy.
In order to connect traditional relay photocells, e.g. faac, you must: use the XIB interface.

E024Fits drives (391, S418, 413, 415, 390, 770, S700H, S450H)
The control panel is placed in a tight housing, so we can use it mount outside.

HEADQUARTERS FEATURES
Work logic:

• semi-automatic (E)
• semi-automatic progressive (EP)
• automatic (A)
• automatic 1 (A1)
• automatic gradual (AP)
• semi-automatic with "Open" input and "Close" (b)
• "dead-man" (C)

Learning features:

• automatic gate closing
• leaf 2 delayed at closing

Inputs:

• full opening (A)
• partial opening (B)
• STOP (emergency stop)
• BUS 2easy

Outputs:

• power supply for motors
• warning lamp
• power supply for accessories
• electric lock (electric lock)
• gate status signaling

TECHNICAL SPECIFICATIONS:

• Supply voltage: 230 V AC (+6%-10%) 50 Hz
• Max. power consumption: 4 W
• Max. motor power: 150 W x 2
• Max. output load: 250 mA - 400 mA BUS 2easy
• Programming: DIP switches + buttons
• Programmable functions: Logic, speed
• Working time (time-out): 5 min (fixed)
• Pause time: Depends on programming (max. 10 min)
• Integrated radio coding: DS, SLH, RC/LC (max. 250 channels)
• Fuses
• • F1 = self-reset
  • F2 = T 2 A
• Operating temperature: -20°C ÷ +55°C
