Photocell 785103 XP 20B D with angle adjustment

63,70 EUR including 23.00% VAT
On stock. Ships in one business day
Product code: #25341
Manufacturer: Faac
  • Range: 20m
  • Viewing angle: 180°
  • 2easy - Bus technology
  • Up to 16 pairs of photocells in one system
  • IP54
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac E024S control unit with housing

Photocell FAAC XP 20B D with angle adjustment


A modern photocell XP 20B D with a horizontal viewing angle of 180° is a guarantee safety in gate automation.
The undoubted advantage of the photocell is its rotating head (-90° + 90°), thanks where the XP 20BD can be installed both in the light and outside the door. Additionally, it has been equipped with a vertical, optical self-regulation function, especially useful when the monitored area is not an area in completely flat.

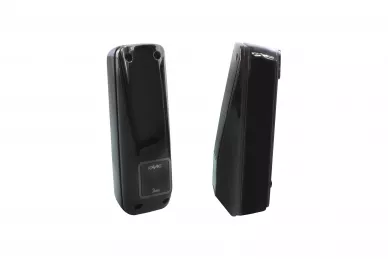

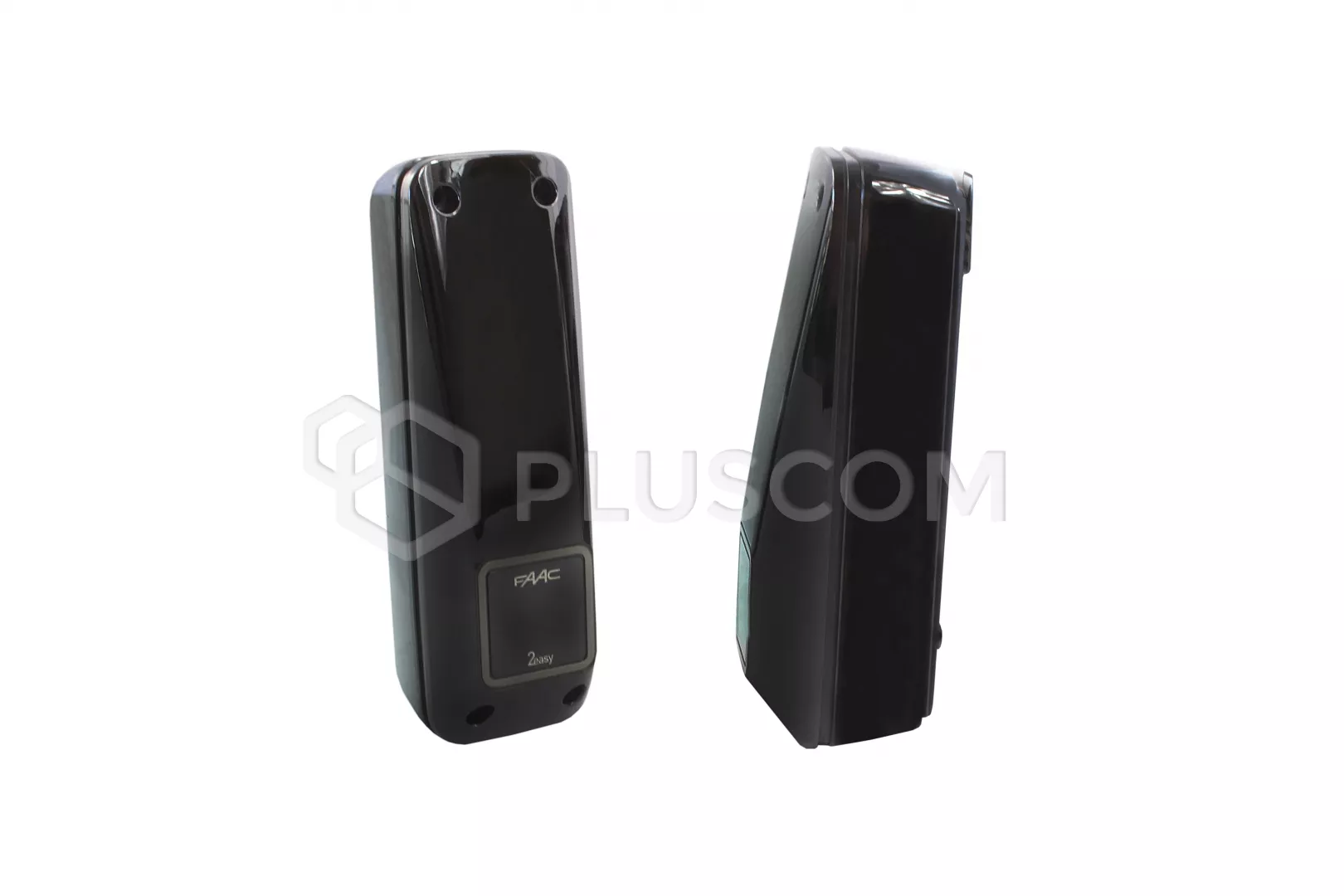

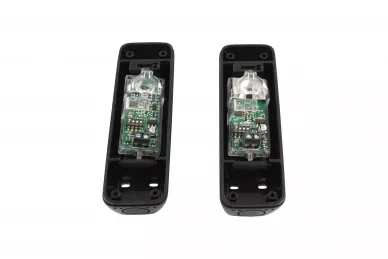

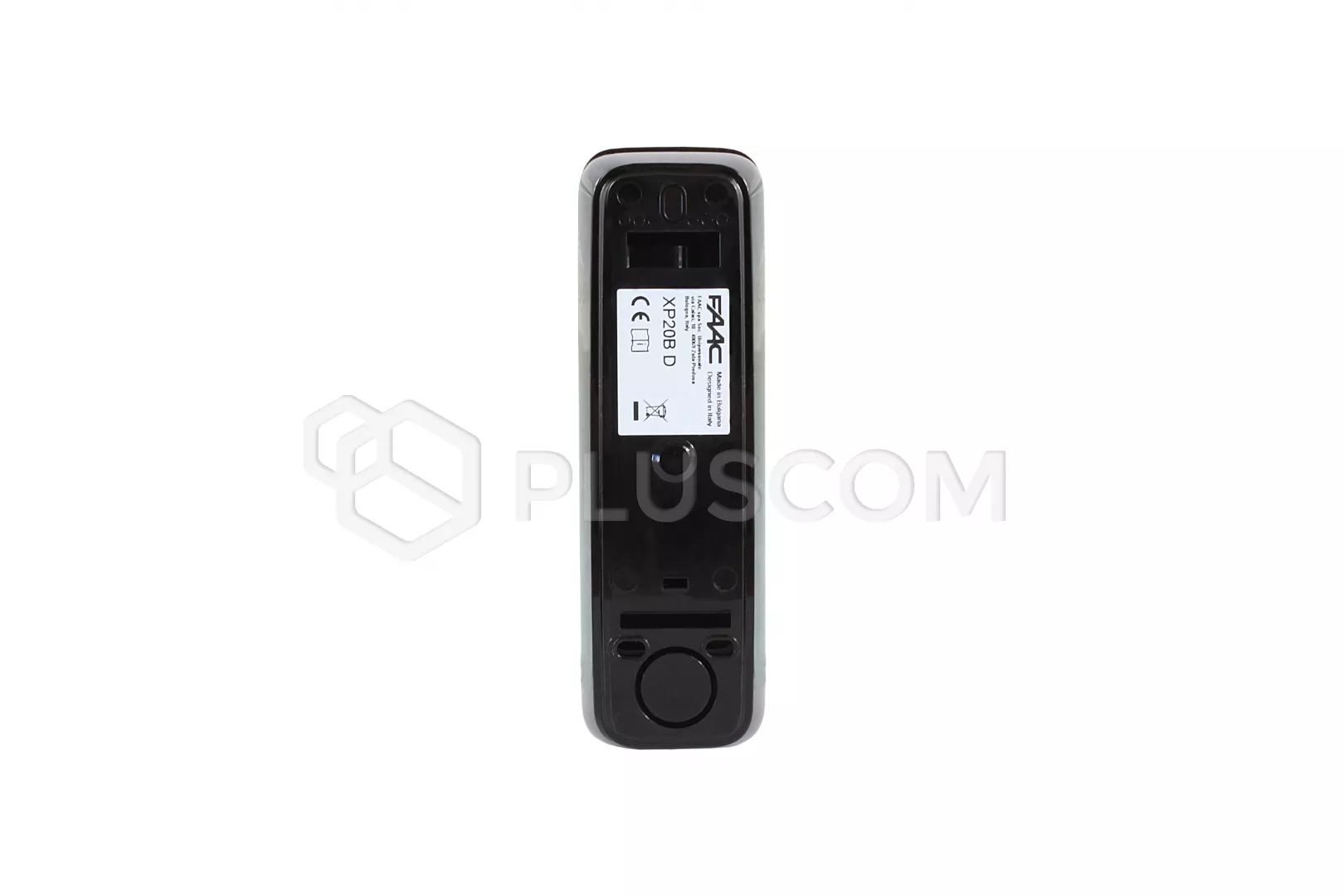

Photocell FAAC XP 20BD

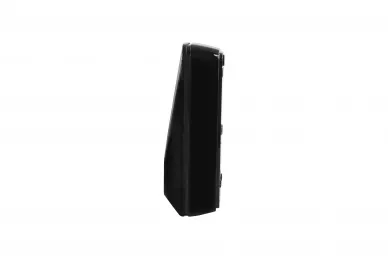

Photocell FAAC XP 20BD

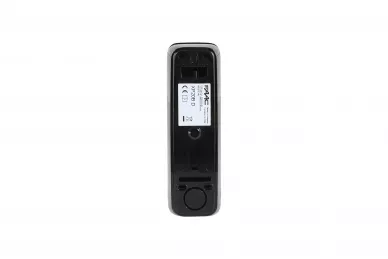

Photocell FAAC XP 20BD

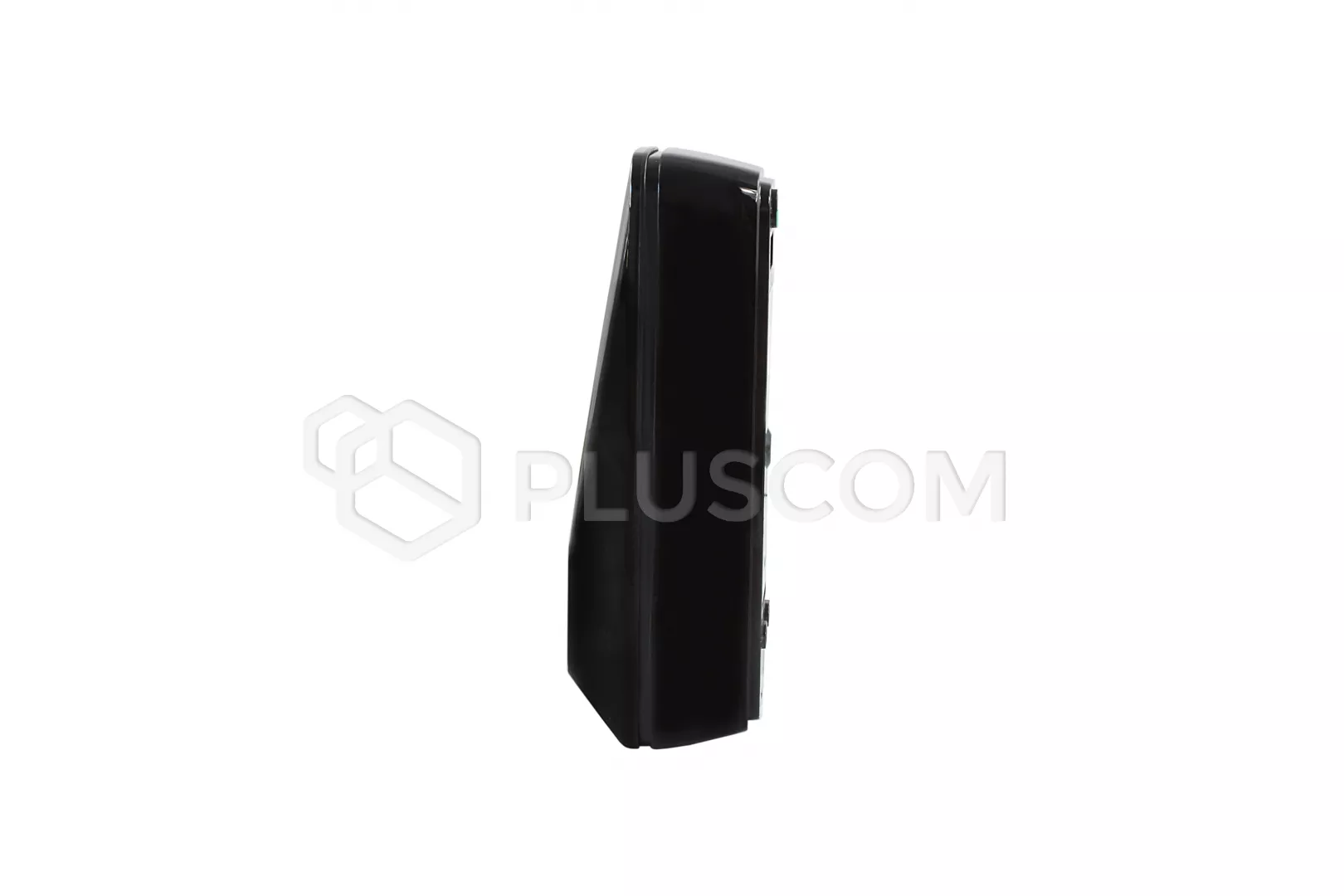

Photocell FAAC XP 20BD


ACCURATE AND RELIABLE ADJUSTMENT

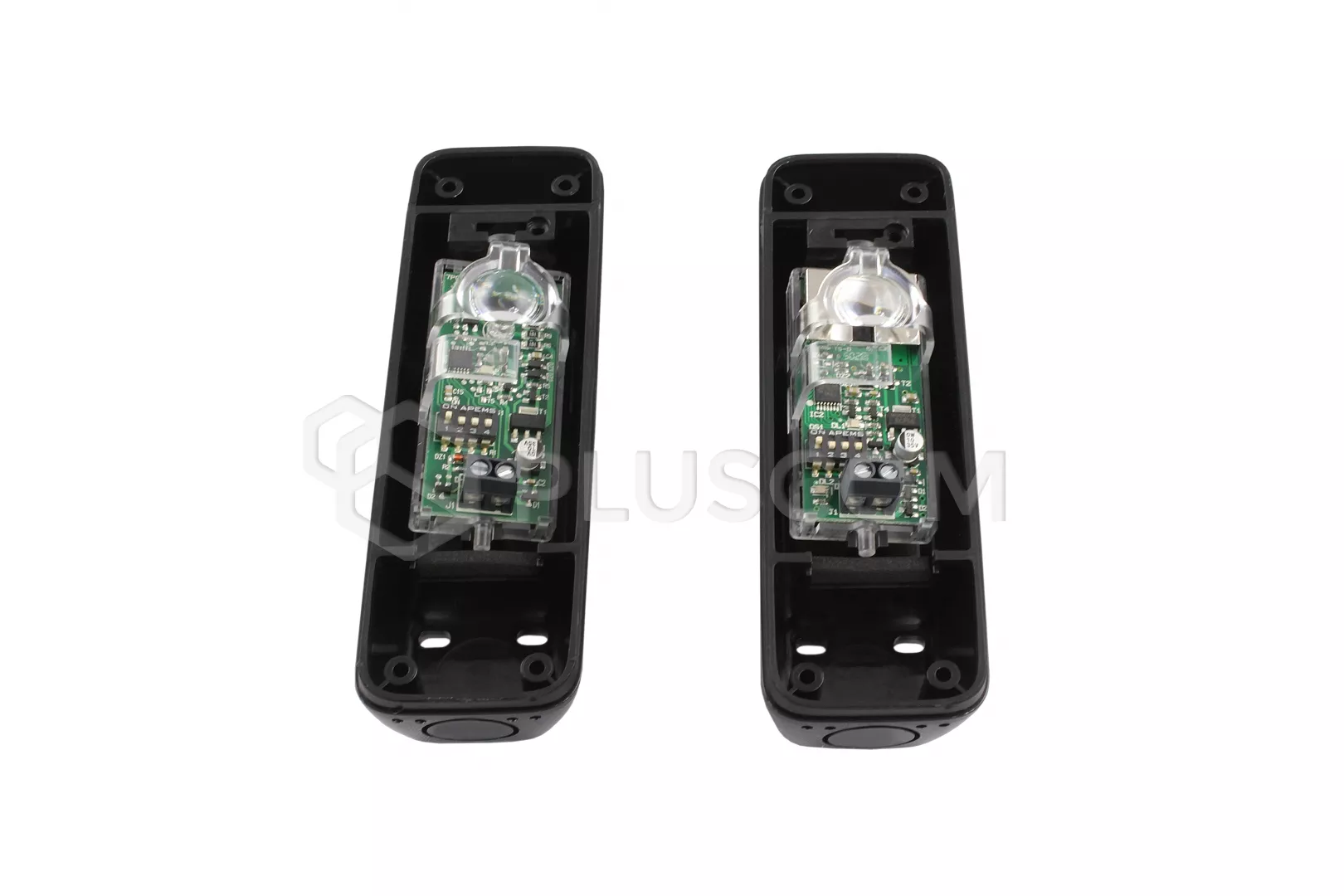

The photocell was placed on a support skid, equipped with the highest class lenses, designed to optimize beam performance falling from different angles. The photocells can be mounted both on the wall and on the bracket, and the blockade of the housing fixing prevents the risk of disassembly or improper installation of the photocell. Thanks to the lock, we also have a guarantee compliance with the requirements of the IP54 protection class.

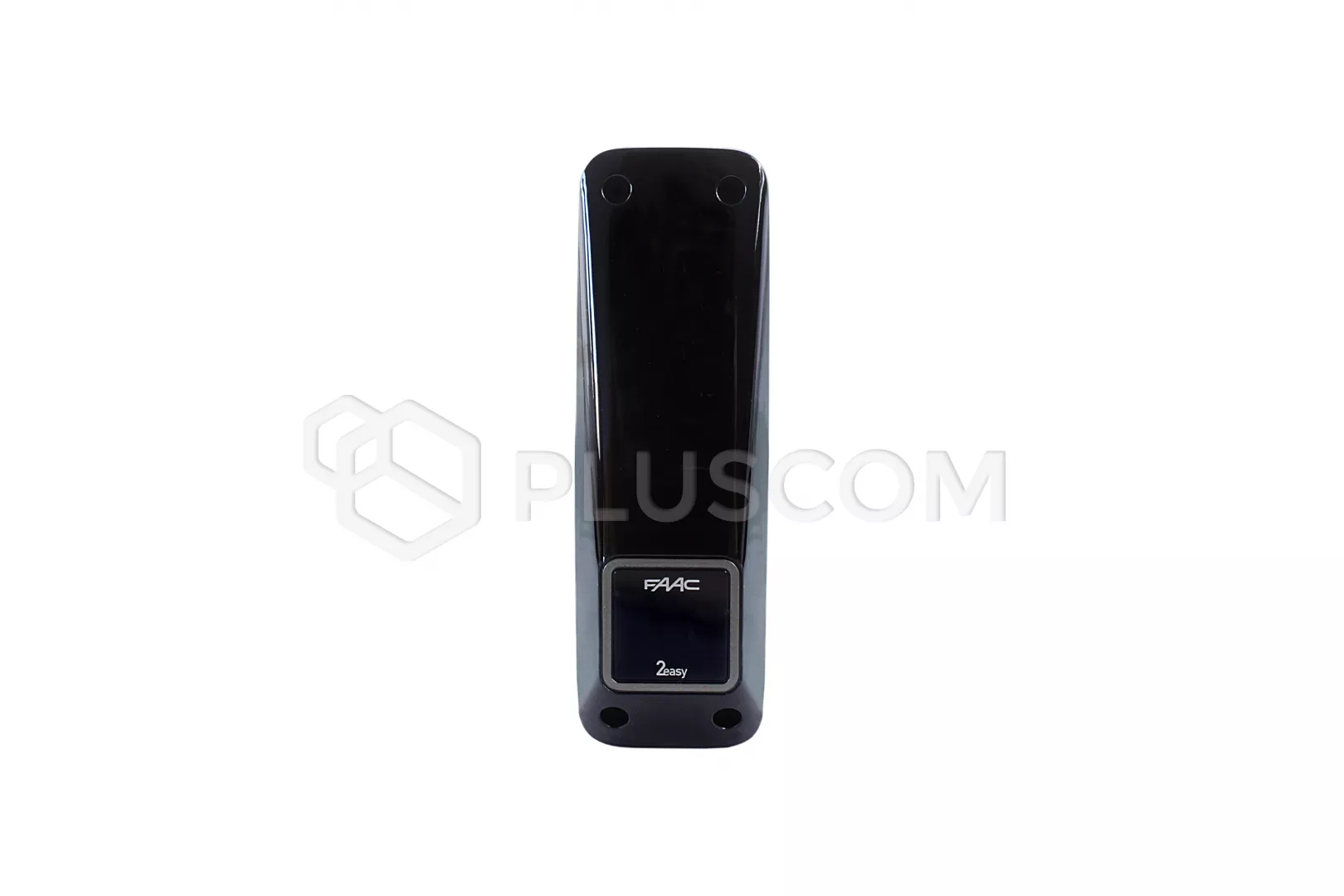

Photocell FAAC XP 20BD

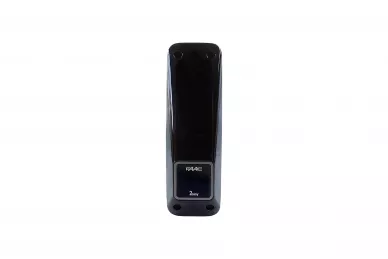

Photocell FAAC XP 20BD


The photocell is equipped with a system with a POWER BUS - only two cables without polarity, where we can install up to 16 pairs to the system photocells.

The XP 20BD is protected against interference emitted by external sources lights (for example, vehicle headlamps).

SPECIFICATION
  • installation type: Wall or column mount
  • supply voltage: 2easy bus, two 24V cables without polarization
  • current consumption: Rx (10mA) + Tx (10mA)
  • horizontal adjustment angle: -90 ° + 90 °
  • self-adjustment angle: ± 7 ° (20m) ± 13.5 ° (5m)
  • obstacle detection time: 20ms
  • nominal range: 20 m
  • protection class: IP54
  • working temperature: -20 ° C ÷ + 55 ° C
  • dimensions: 41 x 130 x 42 mm
