Faac ENERGY Kit for swing gates up to 2.5m/300kg per leaf
Complete swing gate kit, suitable for swing gates up to 2 meters long (or 2.5
meters with an electromagnetic lock). The maximum weight of a single swing gate
should not exceed 300 kg.
The Energy 392 kit is an ideal solution for wide gate posts, allowing operating
a gate with a clear opening width of up to 5 meters.
|

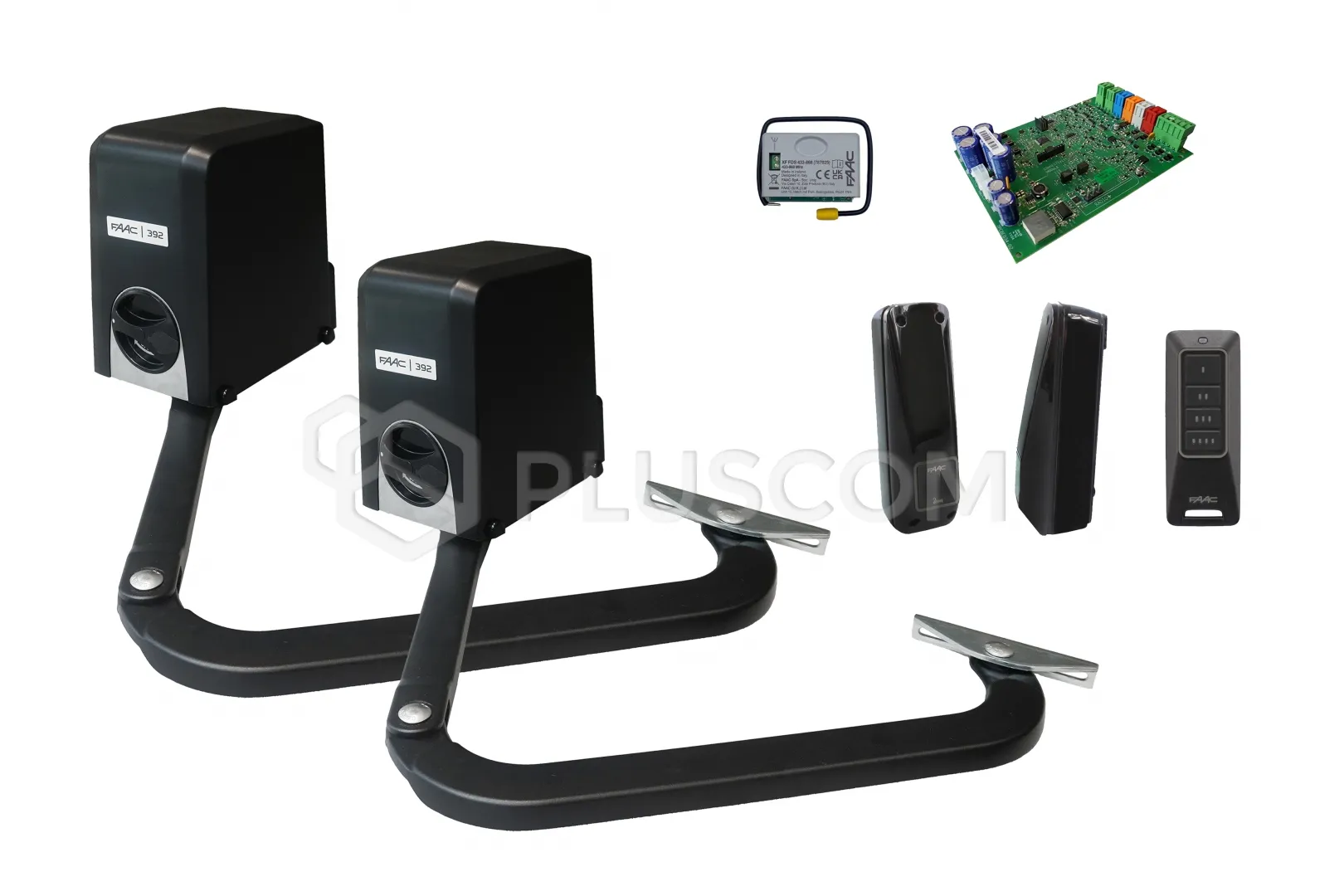

KIT INCLUDES:
|
Faac ENERGY kit for swing gates up to 2.5 m per leaf
|
Electromechanical operator with an articulated arm for swing gates, for gates
up to 2.5 meters long and a maximum single-leaf weight of 300 kg. This is an
ideal solution for wide gate posts, allowing for gates with a clear opening of
up to 5 meters.
The actuator is equipped with an easy-to-use, secure release system that allows
you to use a private key to open or close the gate leaves in the event of a
power outage or actuator failure.
Key features:
- Compact, elegant design. Width – the most important dimension – does not
exceed 185 mm
- Easy installation. The articulated arm provides great flexibility,
allowing installation on wide posts as well
- Thanks to the self-locking drive, there is no need to install
electromagnetic locks. In the event of a power failure, an easy-to-use
release system (with a personalized key) allows you to open and/or close the
gate
- Built-in mechanical locks: no mechanical opening or closing locks
required
- New E034S control unit with a wide range of capabilities
To ensure proper operation, ensure that the distance between the gate
hinge and any wall or fence end exceeds 725 mm.
The E034 built-in control unit features an intuitive user
interface, featuring a display and programming buttons that significantly
simplify installation and maintenance. This allows installers to reduce
intervention time and improve operational efficiency. Thanks to its advanced
programmability, the control unit allows for the configuration of numerous
parameters and logic, allowing it to be adapted to various types of gates. A
convenient display and LEDs provide intelligent diagnostics. For even more
precise management, the Simply Connect platform enables full remote control.
E034 Control Unit FUNCTIONS:
- Display
- BUS bus
- STOP input
- Lamp output (24V)
- Electric lock output
- 3-pin OMNIDEC receiver input
- Programmable output (OUT 1)
- Number of operating logics: 7
- Force adjustment: range: 1-50, individually adjustable for each leaf
- Opening/closing speed adjustment: range: 1-10, uniform in both directions
for both leaves
- Manual actuator operation (N1, N2)
- Opening slowdown distance: range: 0-99, individually adjustable for each
leaf.
- Closing slowdown distance: range: 0-99, individually adjustable for each
leaf.
- Opening delay adjustment (Od): range: 00 - 1.3
- Closing delay adjustment (Cd): range: 00 - 1.3
- Soft touch
- Soft start
- OPEN A pause time adjustment (PA): range: 00 - 9.5
- OPEN B pause time adjustment (Pb): range: 00 - 9.5
- Pedestrian function
- Obstacle detection sensitivity adjustment (EC): range: 01 - 10
- Auto setup function
- XLC low power module
- FDS compatible (via OMNIDEC)
- Simply Connect compatible
The FAAC XT4 FDS 433-868 SLH LR remote control enables
convenient and effective control of automation systems. Thanks to advanced
technology, the remote control features a rolling code, ensuring a high level
of security and protection against unauthorized access. It is characterized by
maximum anti-cloning protection. This is ensured by an advanced security scheme
based on Secure Vault hardware technology (PSA level 3 certification) and
TrustZone, a state-of-the-art method for securing digital financial
transactions and IoT High Security devices/networks. FDS is a frequency
modulation-based radio protocol with the highest performance in terms of range
and battery life; radio transmission is secured by an AES-128 symmetric
encryption algorithm with a 128-bit key. The authenticity of the remote
controls is verified using a chain of personalized FAAC security certificates.
The modern XP 20B D photocell with a 180° horizontal viewing
angle is equipped with a vertical optical self-adjustment function,
particularly useful when the monitored area is not completely flat.
The device is equipped with a BUS power supply system – only two non-polarized
wires, allowing up to 16 pairs of photocells to be connected.
The XP 20BD is protected against interference from external light sources
(e.g., vehicle headlights).
TECHNICAL DATA:
- Power supply voltage: 220-240 V AC 50/60 Hz
- Motor type: Brushed, 24 V DC
- Max. thrust force: 300 Nm
- Max. angular speed: 8.5°/sec.
- Max. Leaf opening angle: 120°
- Use frequency: continuous
- Ambient operating temperature: -20°C ÷ + 55°C
- Protection rating: IP44
- Dimensions: 183 x 256 x 304 mm
- Weight: 11.7 kg
