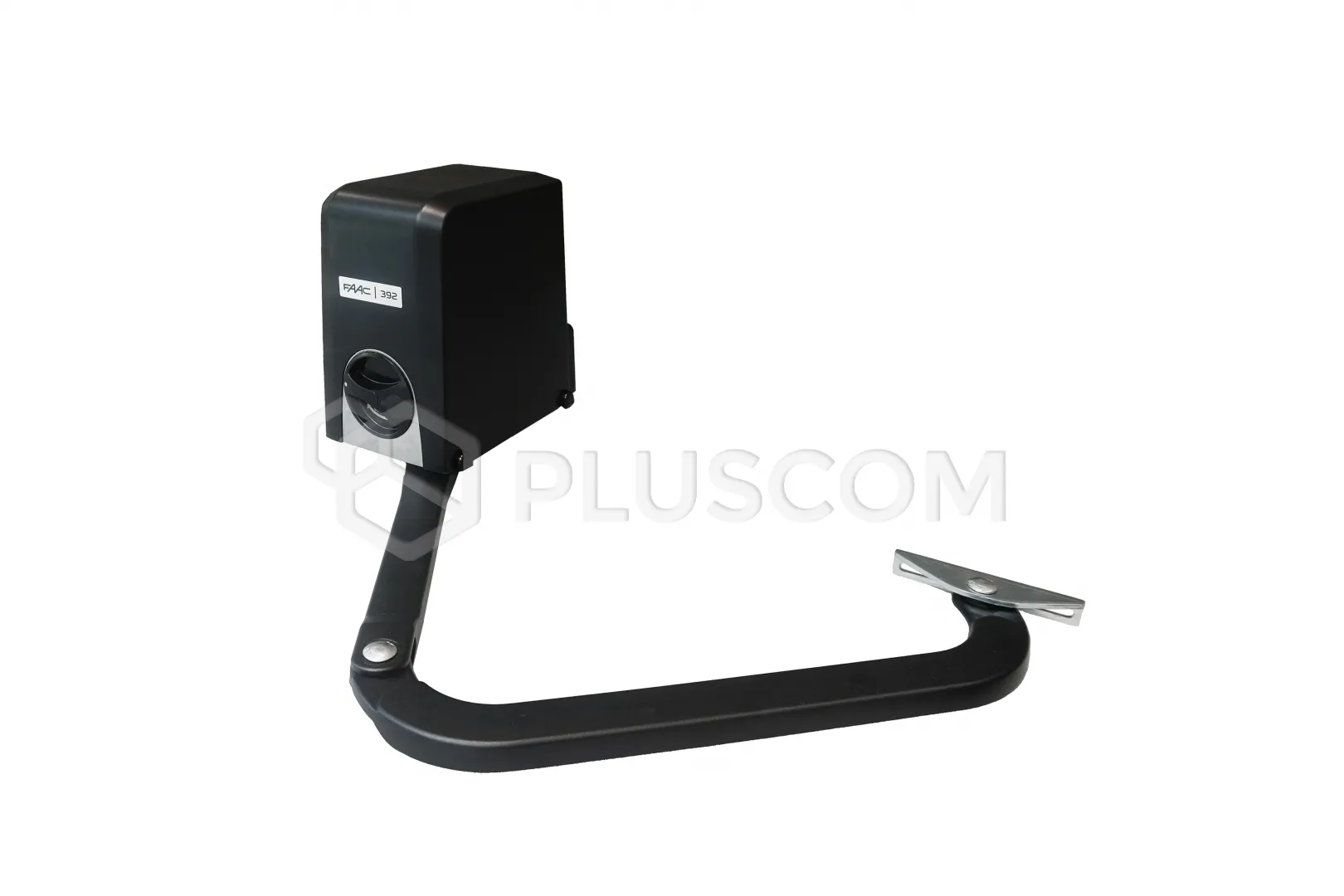

Faac ENERGY 392C actuator with built-in control unit for gate leaves up to
2.5 m/300 kg
Electromechanical operator with an articulated arm for swing gates, for gates
up to 2.5 meters long and a maximum single-leaf weight of 300 kg. This is an
ideal solution for wide gate posts, allowing for gates with a clear opening of
up to 5 meters.
The actuator is equipped with an easy-to-use, secure release system that allows
you to use a private key to open or close the gate leaves in the event of a
power outage or actuator failure.
Key features:
- Compact, elegant design. Width – the most important dimension – does not
exceed 185 mm
- Easy installation. The articulated arm provides great flexibility,
allowing installation on wide posts as well
- Thanks to the self-locking drive, there is no need to install
electromagnetic locks. In the event of a power failure, an easy-to-use
release system (with a personalized key) allows you to open and/or close the
gate
- Built-in mechanical locks: no mechanical opening or closing locks
required
- New E034S control unit with a wide range of capabilities
To ensure proper operation, ensure that the distance between the gate
hinge and any wall or fence end exceeds 725 mm.
The actuator features a built-in E034 control unit, which
features an intuitive user interface, equipped with a display and programming
buttons that significantly simplify installation and maintenance. This allows
installers to reduce intervention time, improving operational efficiency.
Thanks to its advanced programmability, the control unit allows for the
configuration of numerous parameters and logic, allowing it to be adapted to
various types of gates. A convenient display and LEDs provide intelligent
diagnostics. For even more precise management, the Simply Connect platform
enables full remote control.
E034 Control Unit FUNCTIONS:
- Display
- BUS bus
- STOP input
- Lamp output (24V)
- Electric lock output
- 3-pin OMNIDEC receiver input
- Programmable output (OUT 1)
- Number of operating logics: 7
- Force adjustment: range: 1-50, individually adjustable for each leaf
- Opening/closing speed adjustment: range: 1-10, uniform in both directions
for both leaves
- Manual actuator operation (N1, N2)
- Opening slowdown distance: range: 0-99 adjustable individually for each
leaf.
- Closing slowdown distance: range: 0-99 adjustable individually for each
leaf.
- Opening delay adjustment (Od): range: 00 - 1.3
- Closing delay adjustment (Cd): range: 00 - 1.3
- Soft touch
- Soft start
- OPEN A pause time adjustment (PA): range: 00 - 9.5
- OPEN B pause time adjustment (Pb): range: 00 - 9.5
- Pedestrian function
- Obstacle detection sensitivity adjustment (EC): range: 01 - 10
- Auto setup function
- Low energy consumption module XLC
- FDS compatible (via OMNIDEC)
- Simply Connect compatible
TECHNICAL DATA:
- Power supply voltage: 220-240 V AC 50/60 Hz
- Motor type: Brushed, 24 V DC
- Max. thrust force: 300 Nm
- Max. angular speed: 8.5°/sec.
- Max. Leaf opening angle: 120°
- Use frequency: continuous
- Ambient operating temperature: -20°C ÷ + 55°C
- Protection rating: IP44
- Dimensions: 183 x 256 x 304 mm
- Weight: 11.7 kg
