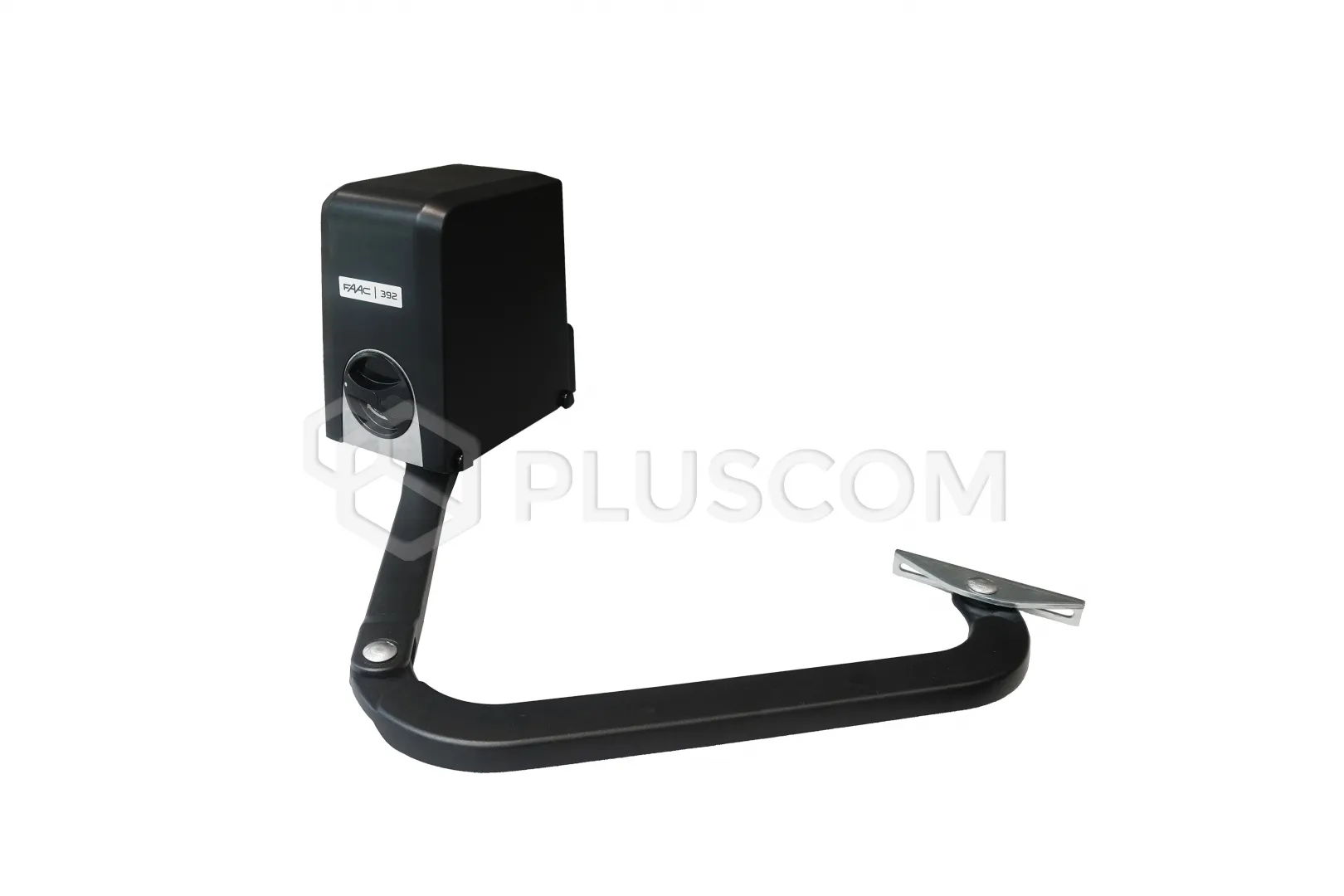

Faac ENERGY 392 actuator without control unit for gate leaves up to 2.5 m

Faac ENERGY 392 actuator without control unit, for gate leaves up to 2.5 m/300 kg

Electromechanical operator with an articulated arm for swing gates, for gates up to 2.5 meters long and a maximum single-leaf weight of 300 kg. This is an ideal solution for wide gate posts, allowing for gates with a clear opening of up to 5 meters.
The actuator is equipped with an easy-to-use, secure release system that allows you to use a private key to open or close the gate leaves in the event of a power outage or actuator failure.

Key features:

• Compact, elegant design. Width – the most important dimension – does not exceed 185 mm
• Easy installation. The articulated arm provides great flexibility, allowing installation on wide posts as well
• Thanks to the self-locking drive, there is no need to install electromagnetic locks. In the event of a power failure, an easy-to-use release system (with a personalized key) allows you to open and/or close the gate
• Built-in mechanical locks: no mechanical opening or closing locks required
• New E034S control unit with a wide range of capabilities

To ensure proper operation, ensure that the distance between the gate hinge and any wall or fence end exceeds 725 mm.

The actuator does not have a built-in control unit.

TECHNICAL DATA:

• Power supply voltage: 220-240 V AC 50/60 Hz
• Motor type: Brushed, 24 V DC
• Max. thrust force: 300 Nm
• Max. angular speed: 8.5°/sec.
• Max. Leaf opening angle: 120°
• Use frequency: continuous
• Ambient operating temperature: -20°C ÷ + 55°C
• Protection rating: IP44
• Dimensions: 183 x 256 x 304 mm
• Weight: 11.7 kg
