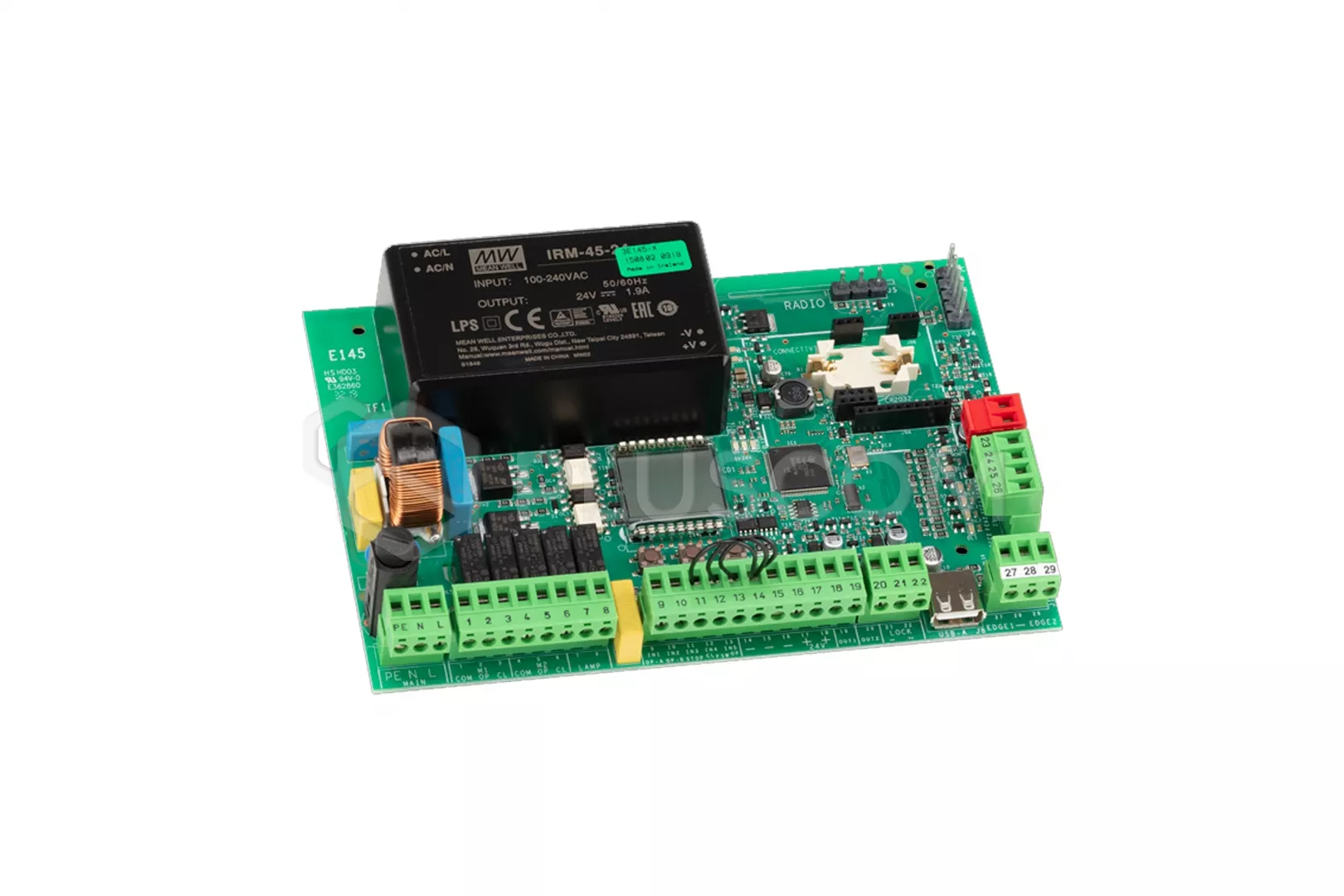

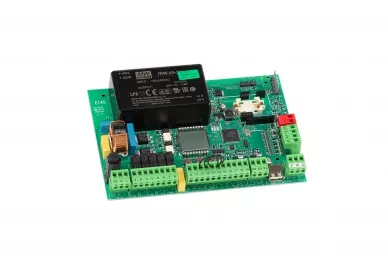

Faac E145S Electronic control unit
The E145S control unit can control one or two swing gate drives, one sliding
gate drive or mixed tilt and slide installations. Dedicated primarily to FAAC
390, 400, 402, 412, 413, 414, 414 LONG, 415, 422 and underground 770N drives,
as well as as an alternative control unit for the FAAC 844 E R actuator for
sliding gates.
Thanks to the use of new technologies, it is only compatible with XF 433/868
frequency modules (equipped with 3-pin quick connector) and with XP 20B D
photocells (BUS 2easy connection). For connection traditional relay photocells
(e.g. XP 20 D) should be used XIB interface.
FUNCTIONS:
Work logic:
- semi-automatic (E)
- semi-automatic progressive (EP)
- automatic (A)
- automatic gradual (AP)
- automatic 1 (A1)
- automatic safe (S)
- safety automatic 2 (SA)
- automatic safe progressive (SP)
- automatic with timer (At)
- semi-automatic with "Open" and "Close" input (b)
- mixed - impulse opening, dead-man closing (bC)
- “dead-man” (C)
Automatic gate closing: programmable (from 0 to 9 min 50 s)
Actuator force: adjustable, 50 levels for each motor separately
Limit switch: the limiter operates independently when opening and
closing
Leaf delay: programmable (from 0 to 1 min 30 s)
Learning features:
- easy memorization of the wing (max. 4 min 10 s)
- automatic storage of the operating and release times of the leaves in one
complete operating cycle via the SAFEcoder encoder
- remembers opening / closing / releasing
Deceleration of leaf movement: programmable (from 0% to 99%)
Anti-crushing protection: programmable (10 levels) - if an encoder is
used
Mechanical bump detection: programmable - if an encoder is used
Programming OUTPUT 1 and 2: independently programmable (17 statuses for
each)
Inspection request: selectable - after reaching the programmed number of
cycles, the system turns on the warning light for approx. 8 s before making any
movement
Management via USB-A:
- updating the control panel software
- updating the control panel configuration
- timer update
- updating the list of pilots
- downloading configuration to the control panel
- downloading control panel timer configuration
- downloading the list of remote controls
Inputs:
- full opening
- opening the pedestrian route (gate)
- STOP (emergency stop)
- BUS 2easy
- safe opening
- secure closure
- power + ground
- opening and closing limiters
Outputs:
- warning lamp
- engine power
- 24V DC power supply for accessories
- two electric locks (electric locks)
Quick connectors:
- 3-pin for XF 433/868 modules (radio module for OMNIDEC)
- 5-pin connector for RP and DECODER radio receivers
- USB-A
- SIMPLY CONNECT for modules allowing remote control of automation
Panel programming: LCD display + buttons | from PC/MAC via USB-B |
via SIMPLY CONNECT communication module (remote)
Status indication: LCD and LED display
TECHNICAL SPECIFICATIONS:
- Supply voltage: 90-260V AC 50/60 Hz
- Max. power consumption: 4 W (2 W - standby)
- Max. motor power: 800 W
- Accessory power supply: 24V DC 500 mA | BUS 2easy 500 mA
- Electric lock power supply: FAAC lock 12V AC - 24V DC | without blocking
FAAC 24V DC 500 mA
- Operating temperature range: -20°C to +55°C
- Fuses: F1=10 A
