Faac Special Set 400 CBAC

3021,48 EUR including 19.00% VAT
Product code: #26722
Manufacturer: Faac
  • Leaf length up to 2.2m
  • Motor power supply: 230V
  • Motor type: asynchronous, single-phase
  • Usable working stroke 390 mm
  • Max. thrust force: 6200 N
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac Model E housing for the control unit Faac 490043 Mechanical travel stop for the Long version Faac 720118 Model L housing for control unit Faac Lock for unlocking the drive with a key Faac 710010 RTA connector Faac 490042 Mechanical travel stop Faac Mounting base for embedding Faac Encoder for 414 actuator Faac E045S control unit Faac E145S control unit

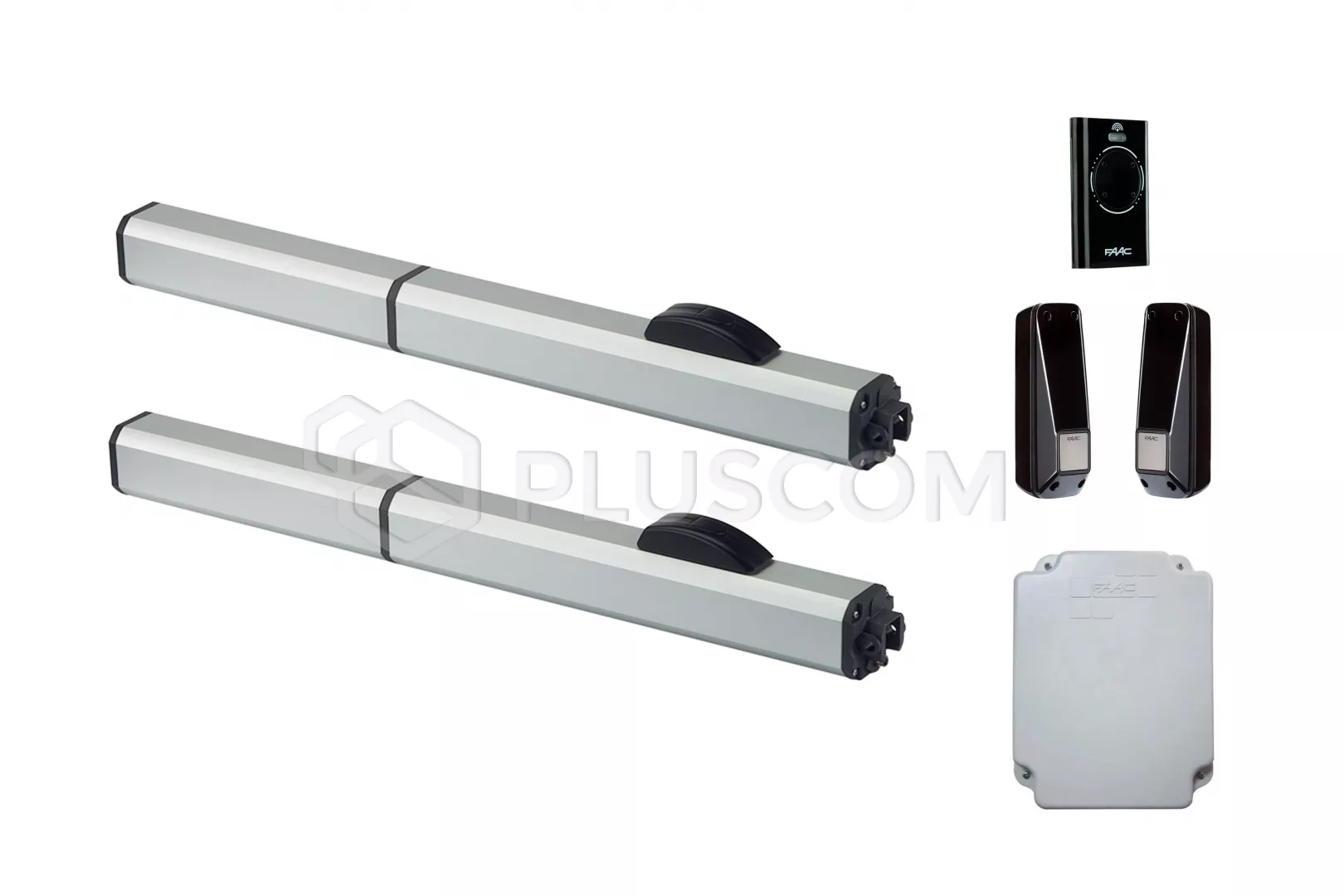

Faac Special set 400 CBAC for swing gates up to 2.2m


SET CONTAINS:
  • 2 x 400 CBAC actuator
  • E045S control unit
  • XF 868 radio module
  • 1 x remote control XT4 868 SLH LR black (868MHz)
  • pair of XP 20B D photocells
  • assembly accessories
Faac Special Set 400 CBAC

Faac Special Set 400 CBAC
Hydraulic drive with a 230V motor for swing gates, consisting of an electric pump and hydraulic piston. It is equipped with a hydraulic lock and does not require installation electric lock, guaranteeing mechanical locking of the leaf.
The distinguishing features of the drive are:
  • wide and versatile range for heavy or intensively used gates
  • quiet operation of the drive
  • easy-to-access drive unlocking, secured with a personalized key
Technical data:
  • Power supply: 230V (+/-6% - 10%) 50 (60)Hz
  • Power consumption: 220W
  • Current consumption: 1A
  • Feed speed: 1 cm/s
  • Pump capacity: 1l/min
  • Thrust force: 6200N
  • Frequency of use: 70 cycles/hour
  • The depth of the hinge from the inner edge of the post to 5 cm
  • Oil type: FAAC HP OIL
  • Protection class: IP 55
  • Operating temperature range: -20°C to +55°C
  • Thermal protection on the motor winding: 120°C
  • Weight: 8.6kg
  • Dimensions: 1031 x 113 x 85mm
Download
Manual 0.89 MB
