Faac Alfa - 414 Starter Set

1105,36 EUR including 23.00% VAT
Product code: #32817
Manufacturer: Faac
  • Maximum leaf length 3m
  • Maximum leaf weight 200kg
  • Power supply/Motor 230V/230V
  • Thermal protection on the motor winding
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac XLED Flashing signal ligh Faac Encoder for 414 actuator Faac Mounting base for embedding

Faac ALFA 414 starter kit for swing gates up to 200kg

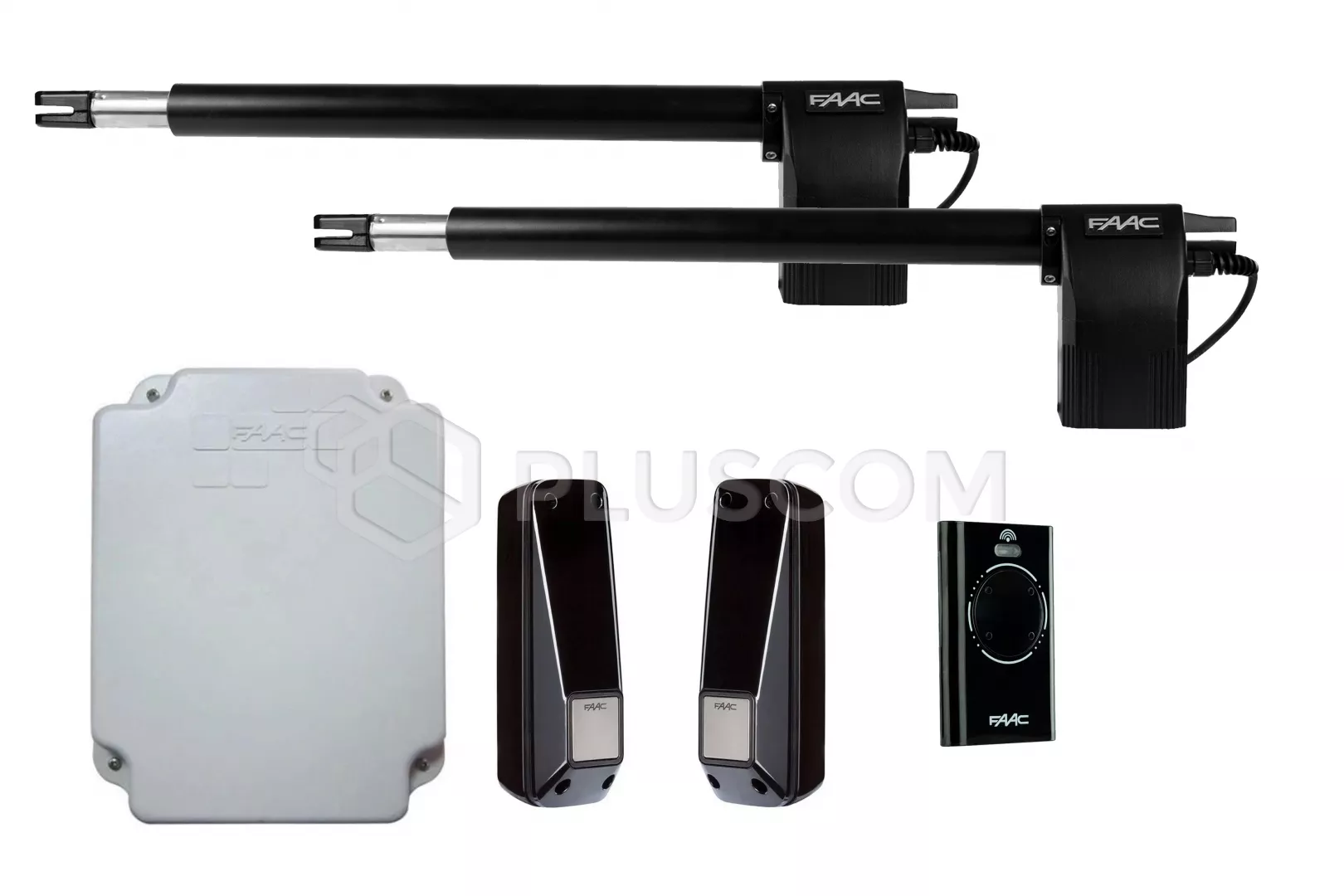

SET CONTAINS:
  • 2 x electromechanical actuator 414
  • E045S control panel
  • XF 868 radio module (868MHz)
  • 1 x remote control XT4 868 SLH LR black (868MHz)
  • pair of XP 20B D photocells
  • assembly accessories
Set of two 414 electromechanical actuators for use backyard. It is a self-locking drive with a mechanical lock when the engine is not running. Once automated, the gate is locked in each gate stop position and therefore there is no need for additional locks.

The most important advantages of the drive and set include:
  • quick and simple installation thanks to the built-in central unit (E045)
  • suits to any type of posts
  • self-locking drive - does not require the use of an electromagnetic lock even in the event of a power failure
  • In the event of a power failure, a keyed unlocking device enables manual opening and closing of the gate
TECHNICAL DATA:
  • Power supply: 230 V
  • Maximum leaf length: 3m
  • Maximum leaf weight: 200 kg
  • Current consumption: 1.2 A
  • Power consumption: 280 W
  • Drive rotation speed: 1400 g/min
  • Gate drive: screw
  • Feed speed: 1.5 cm/sec
  • Maximum thrust force: 3500 N
  • Thermal protection: 140ºC
  • Weight: 6.5 kg
  • Protection class: IP44
  • Operating temperature: -20ºC / +55ºC
