Faac Special Set 390

Faac Special set 390 - for swing gates up to 3m

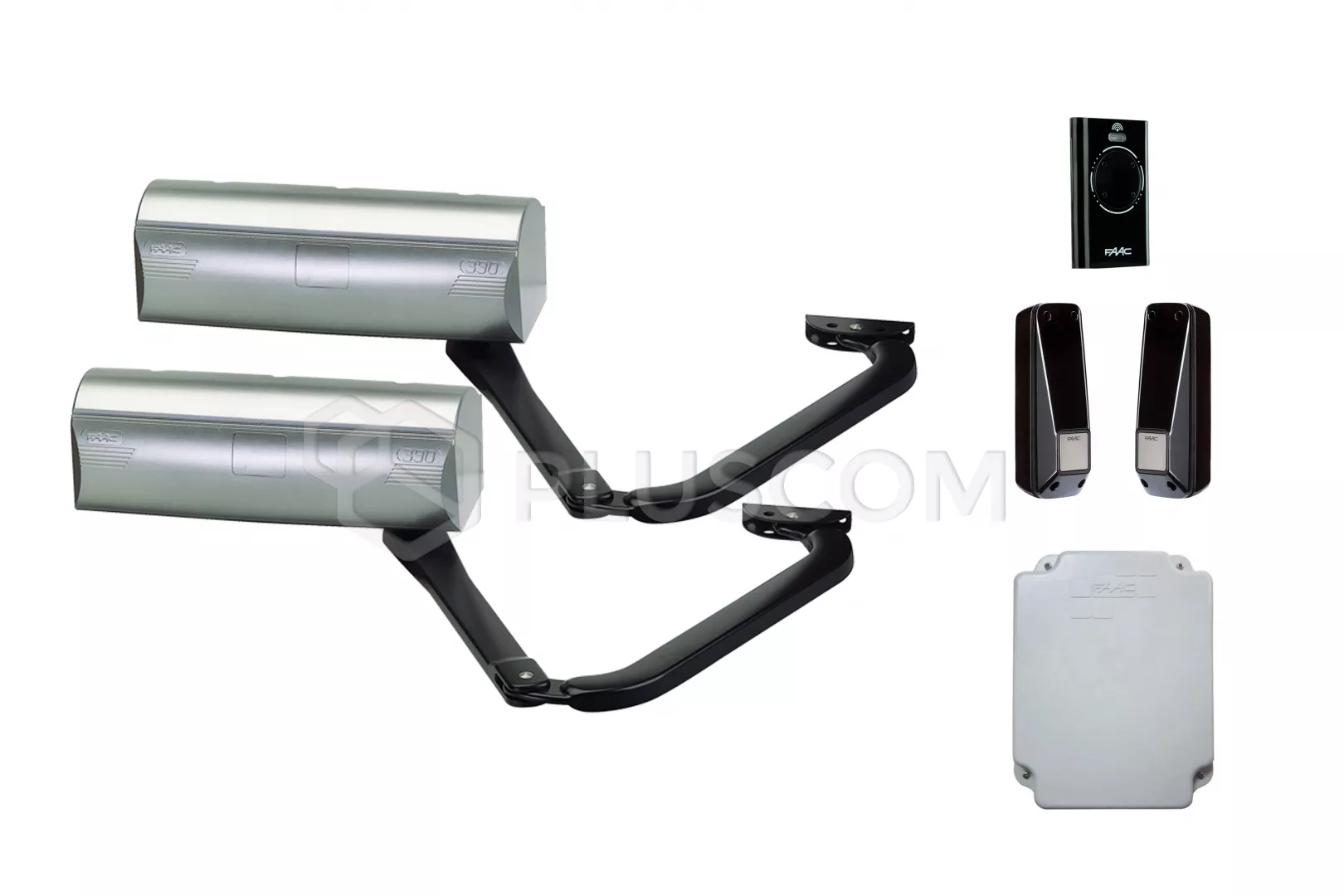

SET CONTAINS: 2 x 390 cylinder with articulated arm 2 x articulated arms for 390 drive E045S control panel XF 868 radio module pair of XP 20B D photocells XT4 868 SLH LR remote control black assembly accessories

Faac Special Set 390

A set of automation for swing gates for a leaf length of 1.8 m (3 m with electromagnetic lock).
Electromechanical drive with articulated arm and 230V motor self-locking, does not require the use of an electromagnetic lock. It has maximum anti-crushing protection. In case of failure or blackout power supply, the actuator's unlocking mechanism allows the leaves to be unlocked gates and manual operation. Due to its compact design, the 390 drive is quick and easy to install without the need for expensive modifications adopters.

390 230 V drives can be equipped with optional limit switches opening and closing. To be able to use optional switches limit switches in the 390 230 V drive, use the E145S control unit
The depth of the hinge from the inner edge of the post is up to 30 cm.

Technical data:

• Power supply: 220-240 V AC 50/60 Hz
• Motor type: Asynchronous, single-phase
• Power consumption: 280W
• Current consumption: 1.2A
• Engine speed: 960 rpm
• Reduction factor: 1:700
• Angular velocity: 8°/s
• Frequency of use: S3 - 30%
• Max. torque: 250Nm
• Max. leaf opening angle: 120°
• Max. leaf width: 1.8 m (3 m with electromagnetic lock)
• The depth of the hinge from the inner edge of the post is up to 30 cm.
• Thermal protection of the motor winding: 140°C
• Protection class: IP44
• Temperature operating range: -20°C to +55°C
• Weight: 11.5kg
• Dimensions: 412 x 133 x 134mm
