Faac Kit 415 LLS

1632,74 EUR including 19.00% VAT
Product code: #26726
Manufacturer: Faac
  • Leaf length up to 4m
  • Motor power supply: 230V
  • Motor type: asynchronous, single-phase
  • Usable working stroke 400 mm
  • Max. thrust force: 3000 N
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac Housing model LM for the control unit Faac Model E housing for the control unit Faac 720118 Model L housing for control unit Faac Mounting base for embedding Faac 727525 Aluminum Arm Cover Faac Encoder for 414 actuator Faac Interface BUS XIB

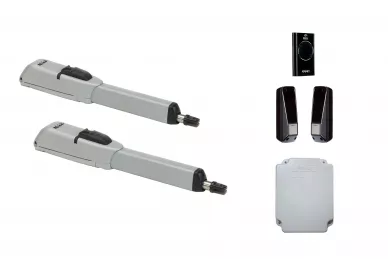

Faac Special set 415 LLS for swing gates up to 4m


SET CONTAINS:
  • 2 x 415 L LS actuator
  • E045S control unit
  • XF 868 radio module
  • 1 x remote control XT4 868 SLH LR black (868MHz)
  • pair of XP 20B D photocells
  • assembly accessories
Faac Kit 415 LLS

Faac Kit 415 LLS
Electromechanical drive used for swing gates, equipped with opening and closing limit switches. In case of failure or not If the drive operates correctly, the gate leaf and the system are blocked security control and unlocking system allows manual operation of the gate.

FEATURES:
  • aluminum body protected with a double protective coating, guaranteeing higher resistance to weather conditions
  • in the event of e.g. power failure, simple unlocking mechanism gearbox (secured with a personalized key) allows operation manual gate
  • cables (with chokes) run horizontally, which allows for mounting the drive very close to the earth's surface
Technical data:
  • Power supply: 230V
  • Power consumption: 300W
  • Current consumption: 1.3A
  • Speed: 1.6 cm/s
  • Thrust force: 3000N
  • Frequency of use: S3 - 30%
  • Protection class: IP 54
  • Operating temperature range: -20°C to +55°C
  • Weight: 8kg
  • Dimensions: 940x148x105mm
Download
Manual 2.36 MB
