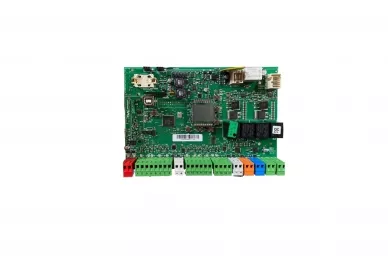

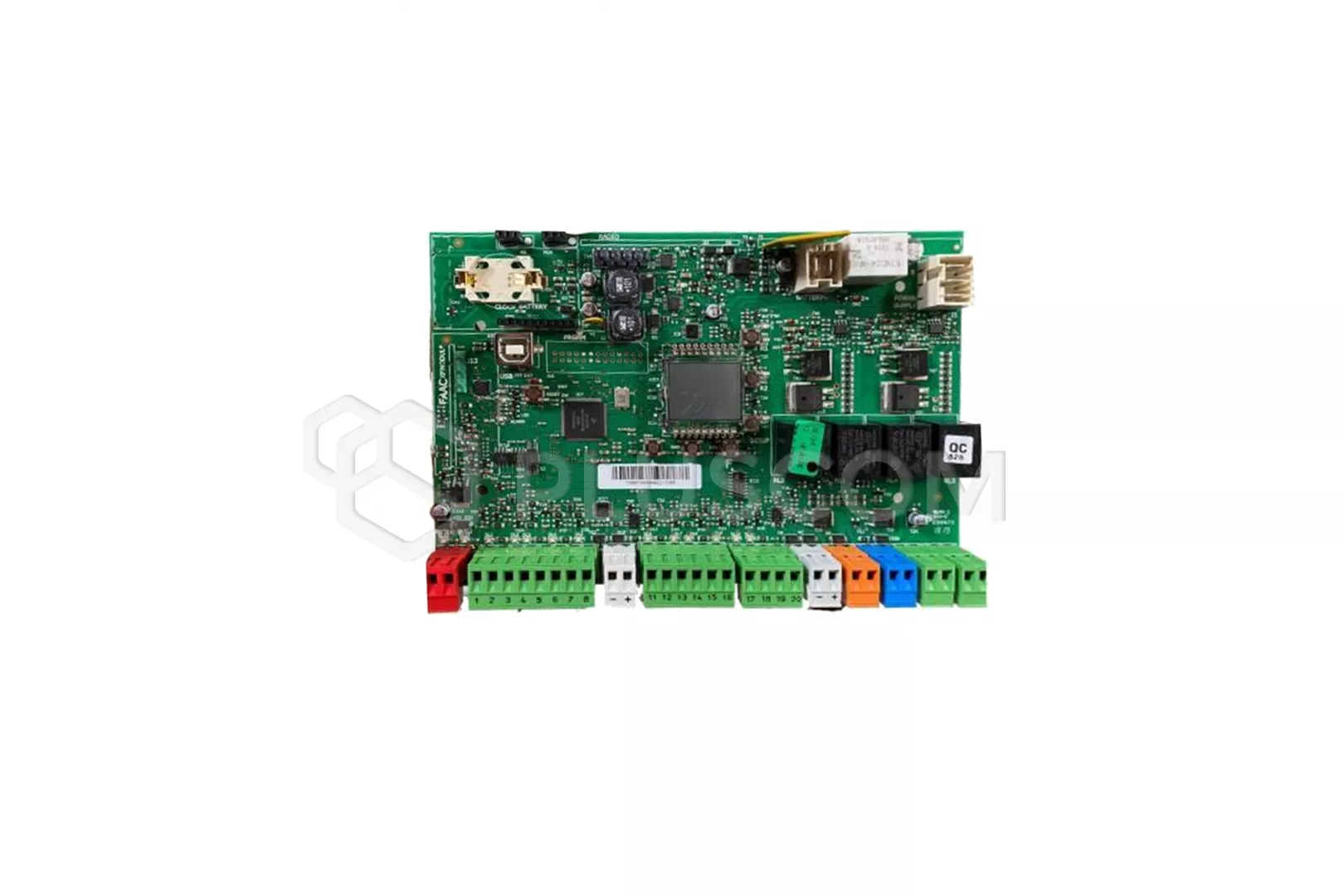

Faac E124 control unit

487,29 EUR including 23.00% VAT
Product code: #20638
Manufacturer: FAAC
  • to two 24V gearmotor
  • BUS 2easy connection
  • switching power supply with voltage switch
  • programming OUTPUT
  • integrated, 2-channel OmniDEC decoding system
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 10675301 Underground actuator 770N 24V Faac Kit 415 LLS 24V Faac HANDY 24V - S418 starter kit Faac ENERGY 24V - 391starter kit

Faac E124 Electronic control unit


The E124 control unit can control one or two drives with a 24V brush motor. Dedicated primarily to FAAC 391, 415, S418, S450H drives and underground 770N and S800H ENC drives. Comes with a housing for outdoor installation.

PROGRAMMABLE CONTROL UNIT FUNCTIONS:
  • work logic
  • pause time
  • thrust force
  • speed
  • slow speed and distance
  • wing delay
  • max. thrust force at the beginning of the movement
  • wind protection
  • opening and closing stroke
  • initial jump
  • jump back
  • gentle closure
  • speed slow
  • fail-safe
  • BUS 2easy devices
  • encoder sensitivity
  • review request
  • energy saving
  • battery charging timer
  • warning lamp pre-lighting time
  • clock
  • emergency power supply
Work logic:
  • semi-automatic (E)
  • semi-automatic progressive (EP)
  • automatic (A)
  • automatic gradual (AP)
  • automatic 1 (A1)
  • automatic safe (S)
  • safety automatic 2 (SA)
  • automatic safe progressive (SP)
  • automatic with timer (At)
  • semi-automatic with "Open" and "Close" input (b)
  • mixed - impulse opening, dead-man closing (bC)
  • “dead-man” (C)
  • custom - via SIMPLY CONNECT (CU)
Working time: programmable (from 0 to 10 min)
Automatic gate closing: programmable (from 0 to 10 min)
Thrust force: adjustable at 50 levels
Speed: adjustable in 10 levels

Inputs:
  • BUS 2easy
  • inputs fully programmable from PC (opening, closing, opening priority, closing priority, emergency opening, emergency closing, emergency opening, STOP, opening protection, closing protection)
  • inputs for 4 limit switches (opening, closing, motor 1, motor 2)
Outputs: 2 programmable multi-function outputs

Quick connectors:
  • 3-pin for XF 433/868 modules (radio module for OMNIDEC)
  • 5-pin connector for RP and DECODER radio receivers
  • SIMPLY CONNECT for modules allowing remote control of automation

TECHNICAL SPECIFICATIONS:
  • Supply voltage: 230V (+6% -10%) 50/60 Hz
  • Max. power consumption: 400 W (4 W in standby mode)
  • Max. motor power: 70 W x 2
  • Accessory power supply: 24V DC 500 mA | BUS 2easy 500 mA
  • Operating temperature range: -20°C to +55°C
  • Fuses: self-reset
