Faac 10675301 Underground actuator 770N 24V

856,55 EUR including 20.00% VAT
Product code: #26792
Manufacturer: Faac
  • Power supply: 230V AC
  • Engine power supply: 24V
  • Max. leaf width: 2 m (3.5 m with opening set)
  • Max. gate leaf weight: 500 kg
  • Max. sash opening angle 110°
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,75 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac E145S control unit Faac Interface BUS XIB FAAC 722122 Mechanical closing limiter Faac 90926 Emergency battery base FAAC 722121 Mechanical opening limiter Faac XBAT 24 emergency battery Faac 712104001-10 Drive release lock with key Faac 490111 Optional kit for opening the door to 180 degrees Faac 490110 Stainless steel foundation box with unlocking Faac 490065 Foundation box with unlocking

Faac 10675301 Underground actuator 770N 24 V

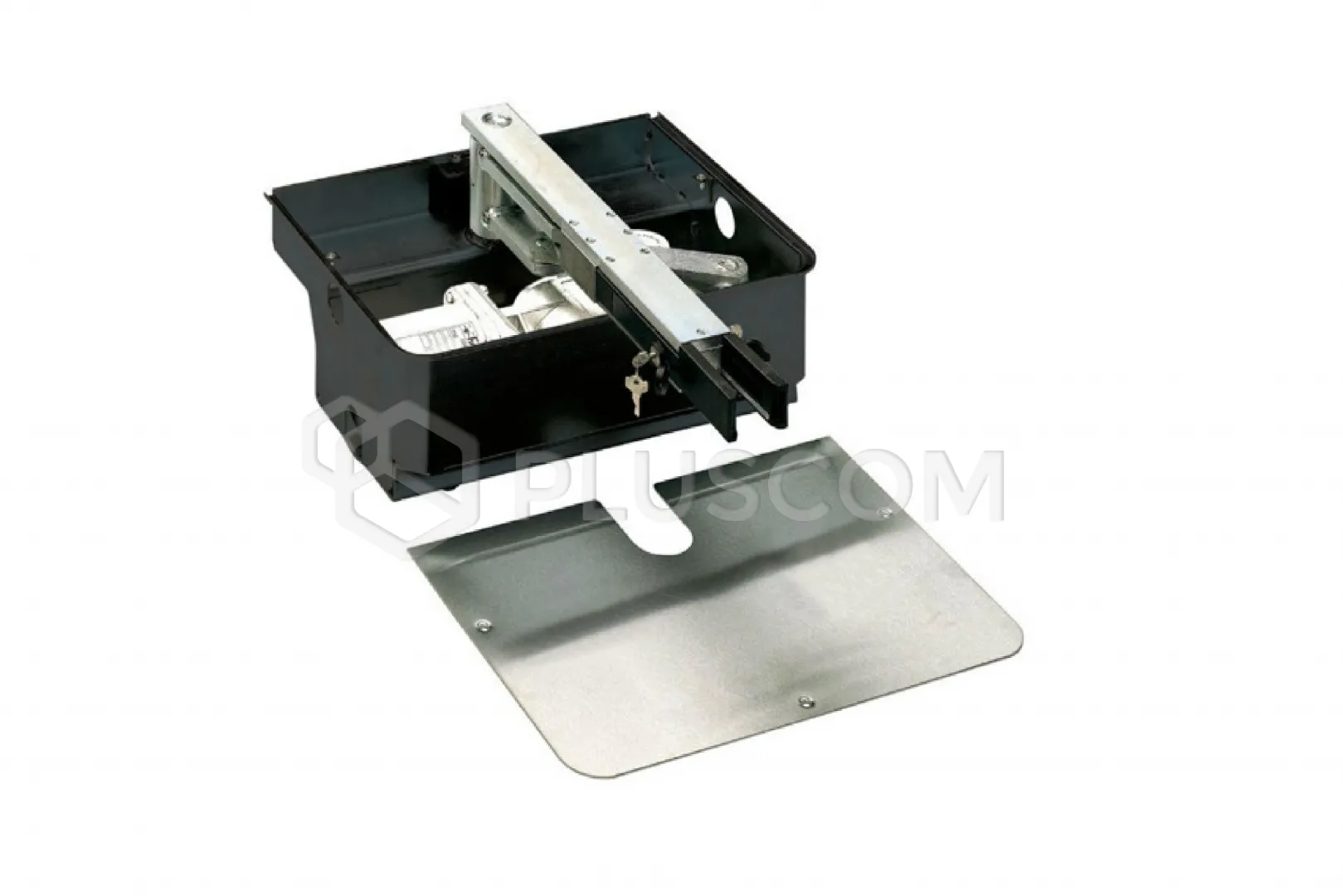

Underground electromechanical drive 24V for residential swing gates with a maximum leaf length of 3.5 m and a weight of 500 kg.

FEATURES:

  • Drive hidden under the ground surface - does not spoil the aesthetics of the gate
  • Access to the drive without removing the leaf
  • Manual release of the drive with a double lever accessible from both the inside and outside of the property (patented)
  • Emergency battery in the event of a power outage (optional)
Included: drive, mounting accessories, two keys to release the drive.

Technical data:

  • Supply voltage - 220-240 V AC 50/60 Hz
  • Motor type Brush - 24 V DC
  • Max. power consumption - 70 W
  • Max. torque - 330 Nm
  • Max. angular speed - 6°/sec.
  • Max. gate leaf weight - 500 kg (see figure A)
  • Max. leaf opening angle - 110° (140° and 180° with optional kit)
  • Ambient temperature during operation - -20°C ÷ + 55°C
  • Protection class - IP67
  • Device weight - 12 kg (with housing 14 kg)
  • Use frequency - 100%
  • Max. leaf width - 2 m (3.5 m with opening set)
  • Device dimensions (WxHxD) - 362x153x127 (with housing 430x307.5x214) mm
  • Control unit - none
