Faac HANDY 24V - S418 starter kit

Faac HANDY 24 V starter kit - S418 for swing gates up to 2.3 - 2.7m

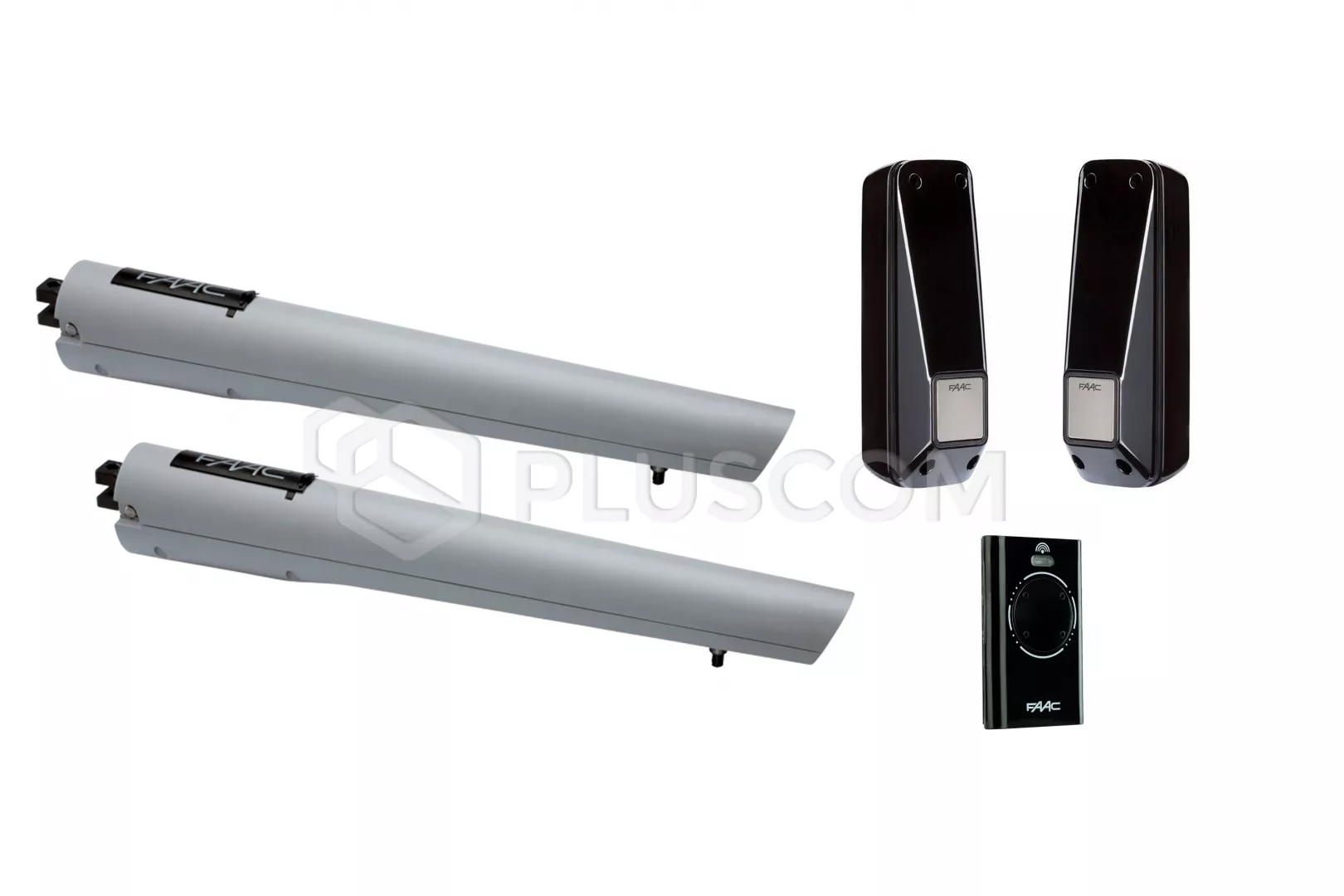

SET CONTAINS: 2 x S418 24V electromechanical actuator E024S control panel XF 868 radio module (868MHz) 1 x remote control XT4 868 SLH LR black (868MHz) pair of XP 20B D photocells assembly accessories

Faac HANDY 24V - S418 starter kit

S418 24V is an electromechanical swing gate actuator for use home for a leaf up to 2.3 m long or 2.7 m when using electromagnetic lock.
The S418 actuator is standardly equipped with a mechanical one opening and closing switches. They can be used instead mechanical locks of the leaf (installed in the ground).

The most important advantages of the drive and set include:

• built mechanical opening and closing stops
• useful working stroke 350 mm
• new multi-position mounting brackets for installation without welding

TECHNICAL DATA:

• Supply voltage: 220-240 V AC 50/60 Hz
• Motor power supply: 24 V DC
• Max. power consumption: 35 W
• Max. thrust force: 1800 N
• Max. linear speed (lead nut): 37 mm/sec. (with E124 exchange)
• Useful working stroke: 350 mm (390 mm without mechanical travel stops)
• Max. leaf opening angle: 110°
• Usage frequency: 100%
• Max. leaf width: 2.3 m (2.7 m with electromagnetic lock)
• Ambient temperature during operation: -20°C ÷ + 55°C
• Protection rating: IP54
• Weight: 6 kg
• Dimensions: 823x104x137 mm
