Faac Kit 415 LLS 24V

Faac Special kit 415 LLS 24 V for swing gates up to 4m

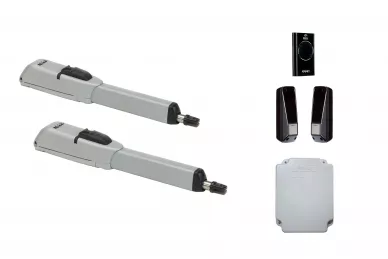

SET CONTAINS: 2 x Actuator 415 L LS 24 V E124 control unit with housing XF 868 radio module 1 x remote control XT4 868 SLH LR black (868MHz) pair of XP 20B D photocells assembly accessories

Faac Kit 415 LLS 24V

Electromechanical drive used for swing gates, equipped with opening and closing limit switches. In the event of a failure or incorrect operation of the drive, the gate leaf is blocked and the control system is blocked security and unlocking system allows manual operation of the gate.

FEATURES:

• aluminum body protected with a double protective coating, ensuring higher resistance to weather conditions
• in the event of e.g. power failure, a simple gear unlocking mechanism (secured personalized key) allows manual operation of the gate
• cables (with chokes) run horizontally, which allows the drive to be mounted very close Earth's surface
• optional emergency battery ensuring operation in the event of a power failure (option for mod. 24 V

Technical data:

• Power supply: 24V DC
• Power consumption: 70W
• Current consumption: 3A
• Speed: 1.6 cm/s
• Thrust force: 2800N
• Usage frequency: 100%
• Protection class: IP 55
• Operating temperature range: -20°C to +55°C
• Weight: 8kg
• Dimensions: 940x148x105mm
