Faac ENERGY 24V - 391starter kit

Faac ENERGY 24V starter kit - 391 for swing gates up to 2.5m

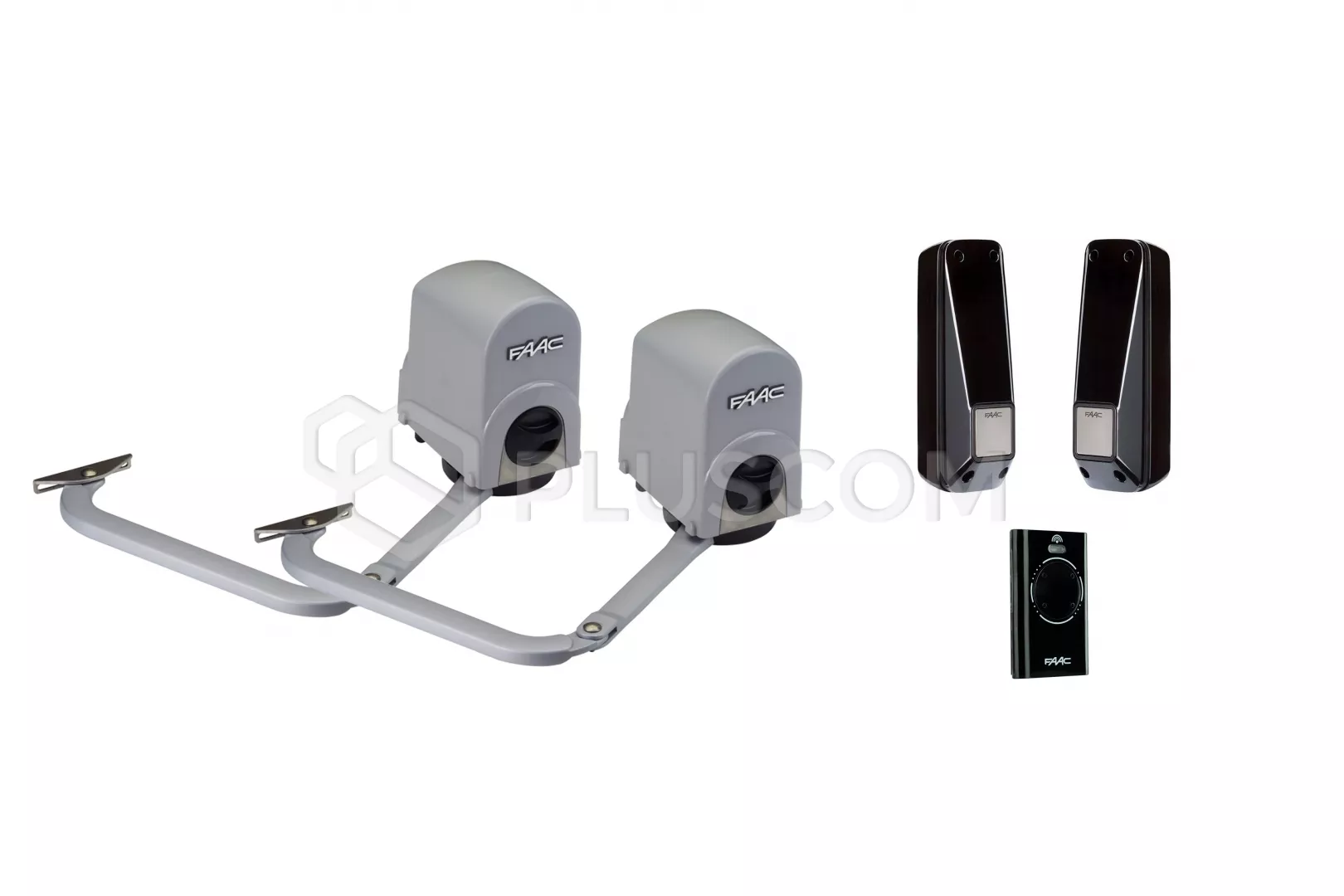

SET CONTAINS: Electromechanical actuator 391 E with a built-in control unit E024S electromechanical actuator 391 XF 868 radio module (868MHz) 1 x remote control XT4 868 SLH LR black (868MHz) pair of XP 20B D photocells assembly accessories

Faac ENERGY 24V - 391starter kit

Set with an electromechanical drive with a 24 V motor and an arm articulated for gates with a maximum leaf length of 2m or 2.5m at using an electromagnetic lock.
The actuators are equipped with an easy-to-use, safe release system, thanks to which you can use the key to open and/or close the leaf or gate leaf in the event of a power failure or actuator failure.

The most important advantages of the drive and set include:

• Compact, elegant design. Width – the most important dimension – does not exceed 185 mm
• straight installation. The articulated arm ensures great flexibility of use, enabling installation also on wide posts
• Built-in mechanical movement limiters - no installation required mechanical stops in the driveway surface

The actuator is standardly equipped with mechanical opening limiters and closing the gate. These limiters are intended to facilitate installation devices because they eliminate the need to create other components limiting the opening and closing movement of the gate.

TECHNICAL DATA:

• Supply voltage: 220-240 V AC 50/60 Hz
• Motor type: brush, 24 V DC
• Max. power consumption:
• • 391E actuator: 120W
  • actuator 391: 40W
• Max. torque: 250 Nm
• Max. angular velocity: 13°/sec
• Max. gate leaf weight: 350kg
• Max. leaf opening angle: 120°
• Ambient temperature during operation: -20°C ÷ +55°C
• Protection rating: IP44
• Weight of the device:
• • 391E actuator: 8.7 kg
  • 391 actuator: 7 kg
• Frequency of use: 80 cycles/day
• Max. leaf width: 2 m (2.5 m with electromagnetic lock)
• Dimensions: 185x260x310 mm
