CAME ZF1N Control unit for double-leaf gates

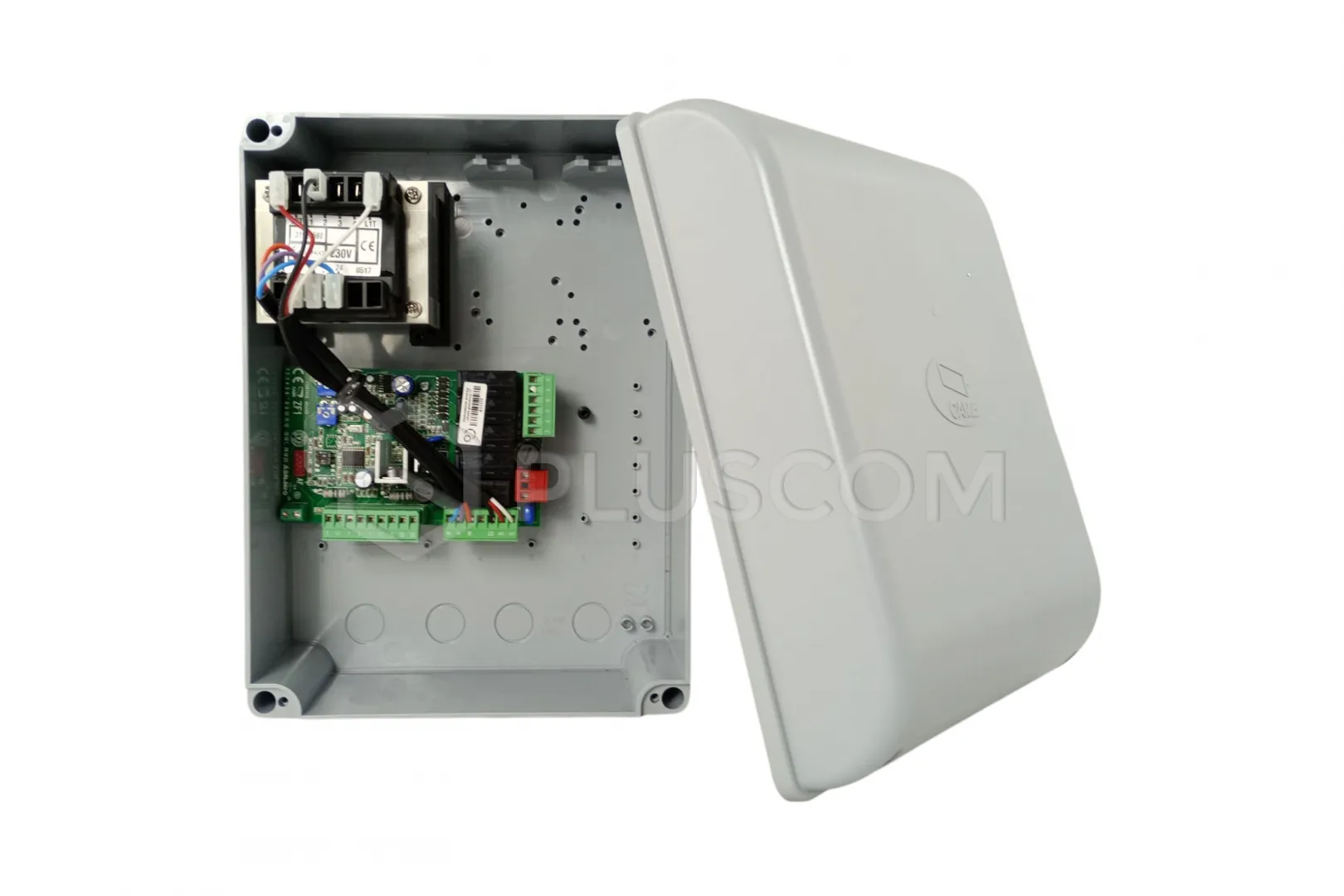

The ZF1N control panel for double-leaf gates provides a number of solutions and functions tailored to the specific requirements of the user. It is equipped with two-channel radio decoder and is supplied with 230V AC.
It enables the extension of the installation with the necessary control accessories and safety devices such as photocells, flashing light, electric lock, card frequencies, antenna or remote controls. The total power of the accessories must not exceed 20 W.

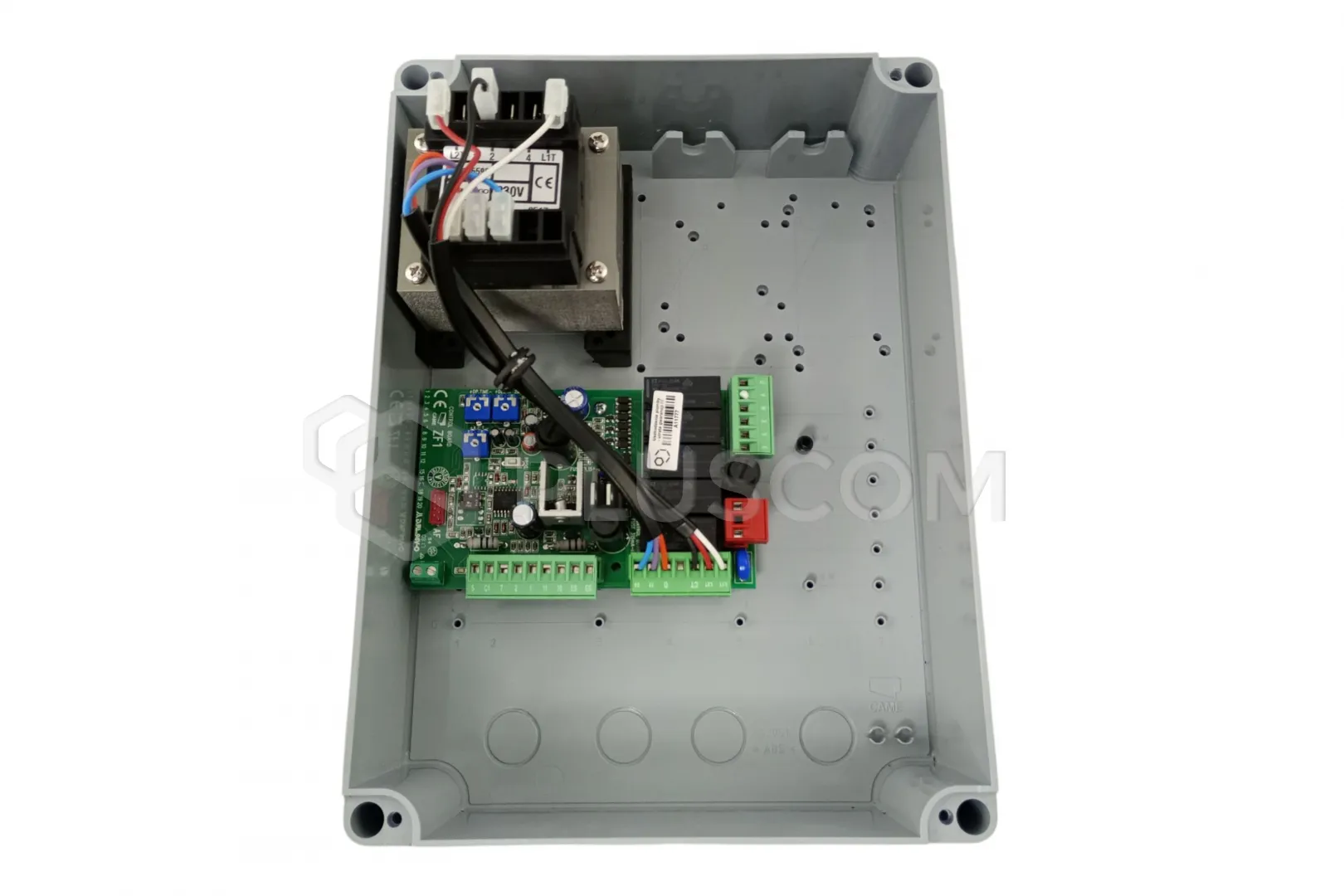

The ZF1N has an input for one line of photocells and an output for an electric lock. All connections are protected by fuses.

Supports FAST, FERNI, ATI, KRONO, AMICO, AXO series actuators.

Control panel characteristics:

• Force control by changing the input voltage on the transformer (4 levels)
• Multiple modes of operation including step-by-step, automatic shutdown after set time
• Control input for connecting a button or intercom to control the gate
• Movement of the leaves on closing when the gate is closing locks one leaf against the other (the so-called overlap) - the control panel allows shifting the closing time of the second leaf (fine adjustment potentiometer)
• Built-in quick coupler for connection of radio control, e.g. series CAME TOP or CAME SPACE (all CAME radio cards with red connector)

TECHNICAL DATA

• Power supply: 230 V 50/60 Hz
• Maximum power: 320 W
• Standby current consumption: 40 mA
• Maximum total power of 24V accessories: 20W
• Fuses:
• • Electronic board (mains powered): 5A
  • Controls and accessories: 3.15A
• Housing material: ABS
• Degree of protection: IP54
• Working temperature: -20 ° C ~ 55 ° C

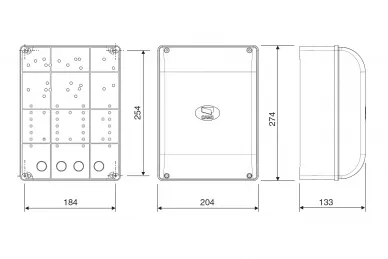

• Case dimensions: 204 × 274 × 133 mm
