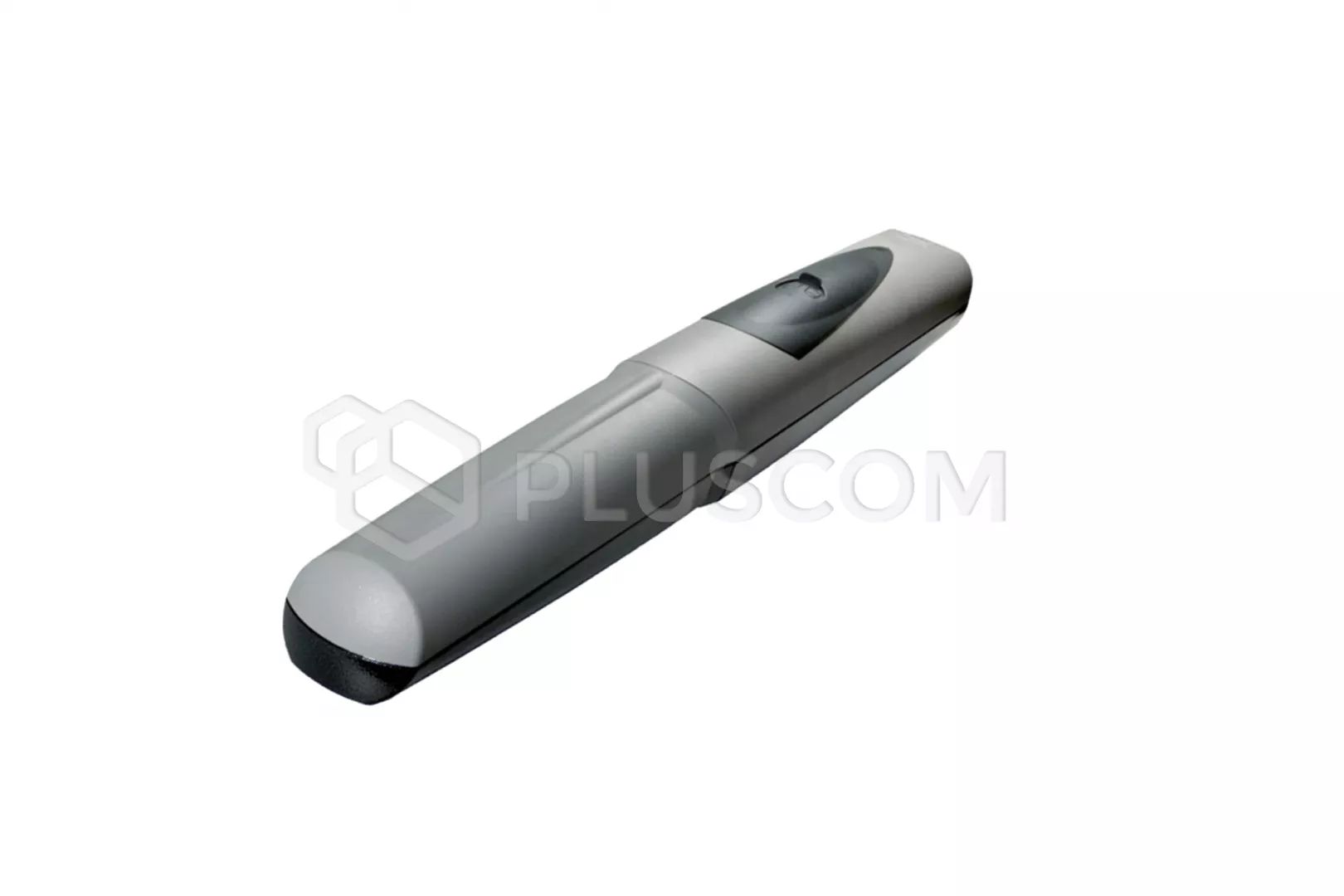

Came AX402306 Actuator 230V, leaf up to 4m/300kg

554,24 EUR including 23.00% VAT
Product code: #26009
Manufacturer: CAME
  • Gate weight: up to 300 kg, length up to 4m
  • Motor power supply: 230V
  • Opening time (up to 90 °): 28s
  • Controlled deceleration speed of the gearmotor
  • The impact forces comply with the standards established by European Standards

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came TOP-432EE Two-channel remote control Came RLB Card for supplying the system with batteries Came TTS44FKS 4-channel fixed code remote Came SELR1BDG 125 kHz proximity reader Came SELB1SDG2 Bluetooth reader 50 users Came SELT1W4G 433.92MHz surface-mounted radio keyboard Came ZM3E Control unit for double-leaf gates Came DIR20 photocells synchronized up to 20m Came ZF1N Control unit for double-leaf gates Came 806TF-0070 DLX30CIP photocells with synchronization

CAME AX402306 Gearmotor for single or double-leaf gates up to 4m


The self-locking electromechanical actuator is designed for automation swing gates used in residential buildings of medium and large size dimensions, with a maximum leaf length of up to 4m and 300kg. Provides maximum durability and security.

Application range:
  • 4m / 300kg
  • 3m / 500kg
  • 2.5m / 600kg
  • 2m / 800kg
It is compulsory to install the gate more than 2.5m per leaf interlocking electric lock
The actuator has a built-in encoder that controls the speed of decelerations geared motor, which allows you to control the generated force. Impact forces generated during the movement, the gates comply with the standards established by the Standards European.

PRODUCT ADVANTAGES
  • motor power supply: 230V
  • unlocking system with unlocking key
  • ability to manage gate movement and braking
  • safe and reliable operation
  • technology EN Tested
  • built-in encoder
  • leaf opening time to 90 °: 28s
  • programmable for partial gate opening
  • test of the safety devices before each gate movement
  • 2-start auger eliminates pull-sleeve wear
  • motor thermal protection

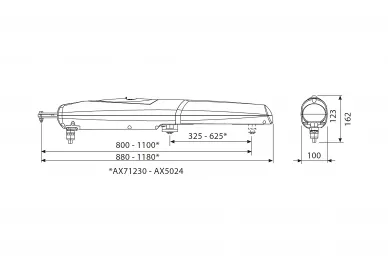

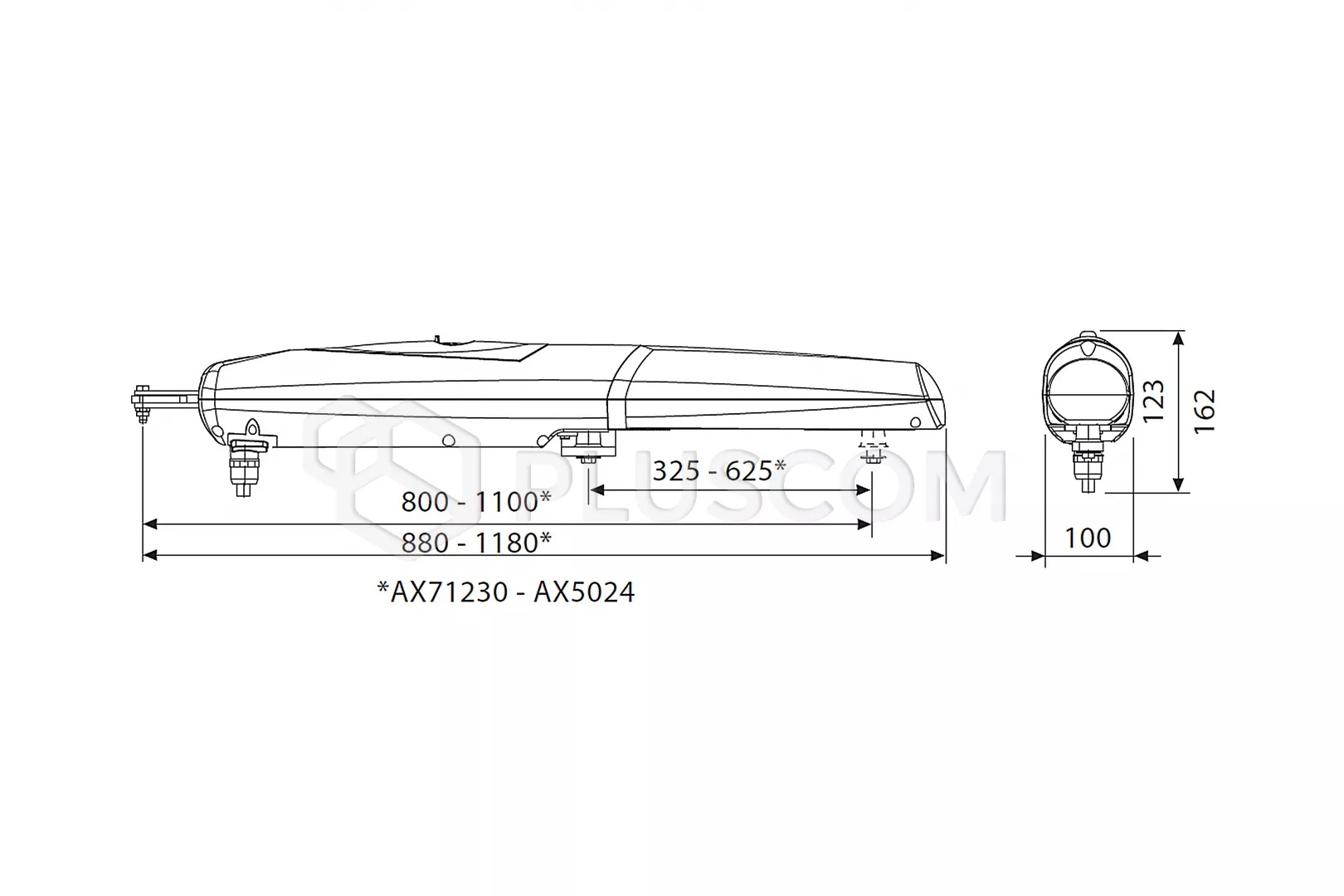

Dimnsions:

Dimnsions:


TECHNICAL PARAMETERS:
  • power supply: 230V 50/60 Hz
  • motor power supply: 230V
  • motor current consumption: 1.5A
  • maximum power: 175W
  • duty cycle: 30%
  • thrust: 500 ÷ 4500 N
  • opening time (up to 90 °): 28s
  • degree of protection: IP44
