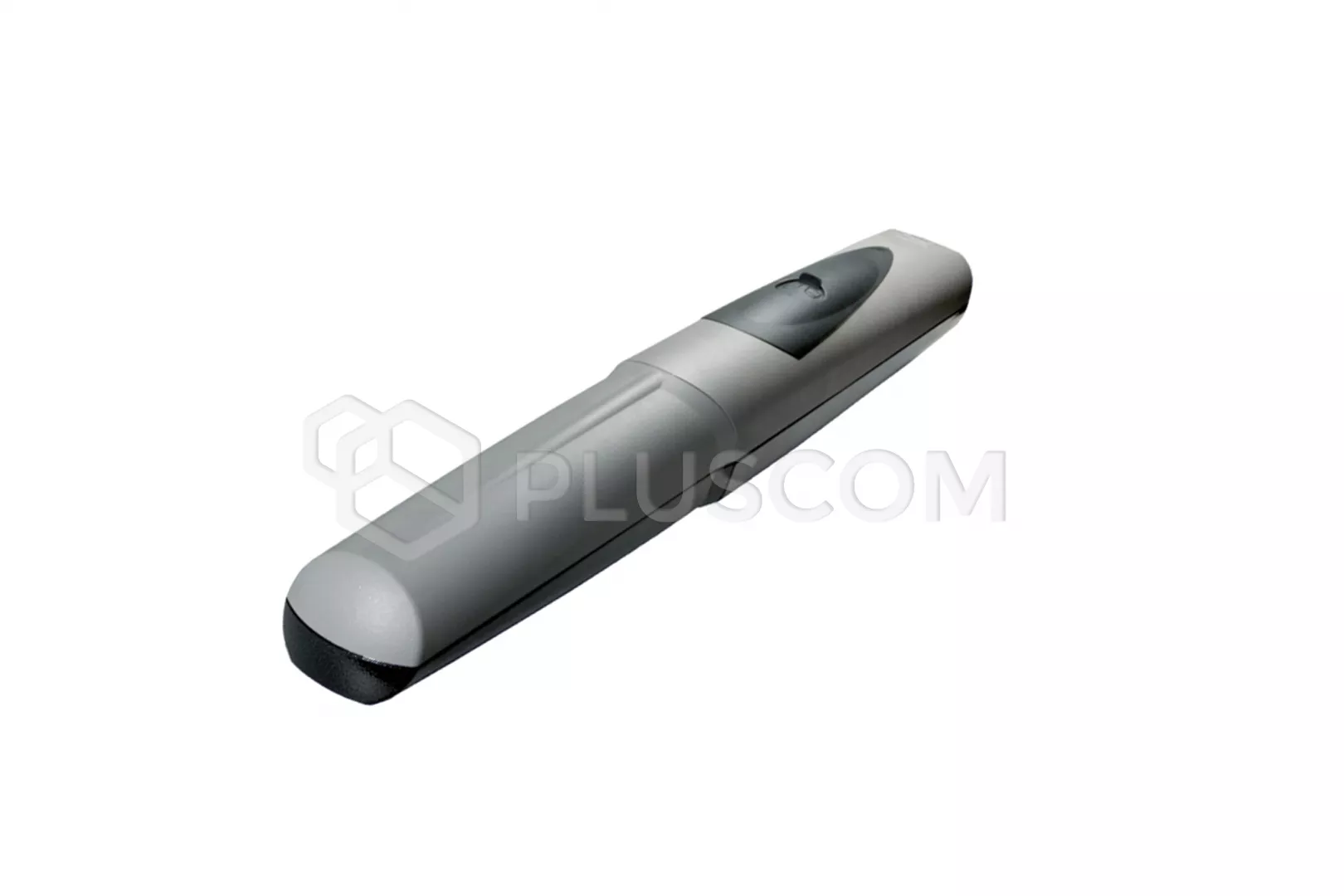

Came AX302304 Actuator 230V leaf up to 3m / 500kg

543,76 EUR including 20.00% VAT
Product code: #26008
Manufacturer: CAME
  • Gate weight: up to 500 kg, length up to 3 m
  • Motor power supply: 230V
  • Opening time (up to 90 °): 20s
  • Controlled deceleration speed of the gearmotor
  • The impact forces comply with the standards established by European Standards

Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came KRX1FXSO Orange 24 / 230V warning lamp Came RLB Card for supplying the system with batteries Came TOP-434EE Two-channel remote control Came SELR2BDG 125 kHz proximity reader Came SELB1SDG1 Bluetooth reader 15 users Came SELT1W4G 433.92MHz surface-mounted radio keyboard Came ZM3E Control unit for double-leaf gates Came TTSD4RKS 4-channel rolling code remote Came ZF1N Control unit for double-leaf gates Came DIR10 photocells synchronized up to 10m

CAME AX302304 Gearmotor for single or double-leaf gates up to 3m


The self-locking electromechanical actuator is intended for the automation of swing gates used in buildings medium and large-sized residential units with max. length wings up to 3m and 500kg. Provides maximum durability and safety.

Application range:
  • 3m / 500kg
  • 2.5m / 600kg
  • 2m / 800kg
With a gate greater than 2.5m per wing, it is mandatory to install an electric interlocking lock
The actuator has a built-in encoder that controls the deceleration speed of the gearmotor which allows you to control the generated force. Impact forces generated the gates comply with the standards during the movement established by European Standards.

PRODUCT ADVANTAGES
  • motor power supply: 230V
  • unlocking system with unlocking key
  • ability to manage gate movement and braking
  • safe and reliable operation
  • technology EN Tested
  • built-in encoder
  • leaf opening time to 90 °: 20s
  • programmable for partial gate opening
  • test of the safety devices before each gate movement
  • 2-start auger eliminates pull-sleeve wear
  • motor thermal protection

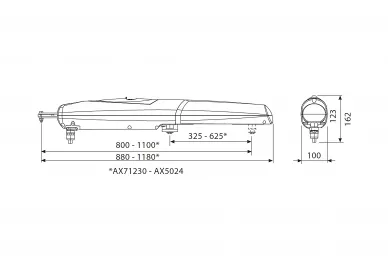

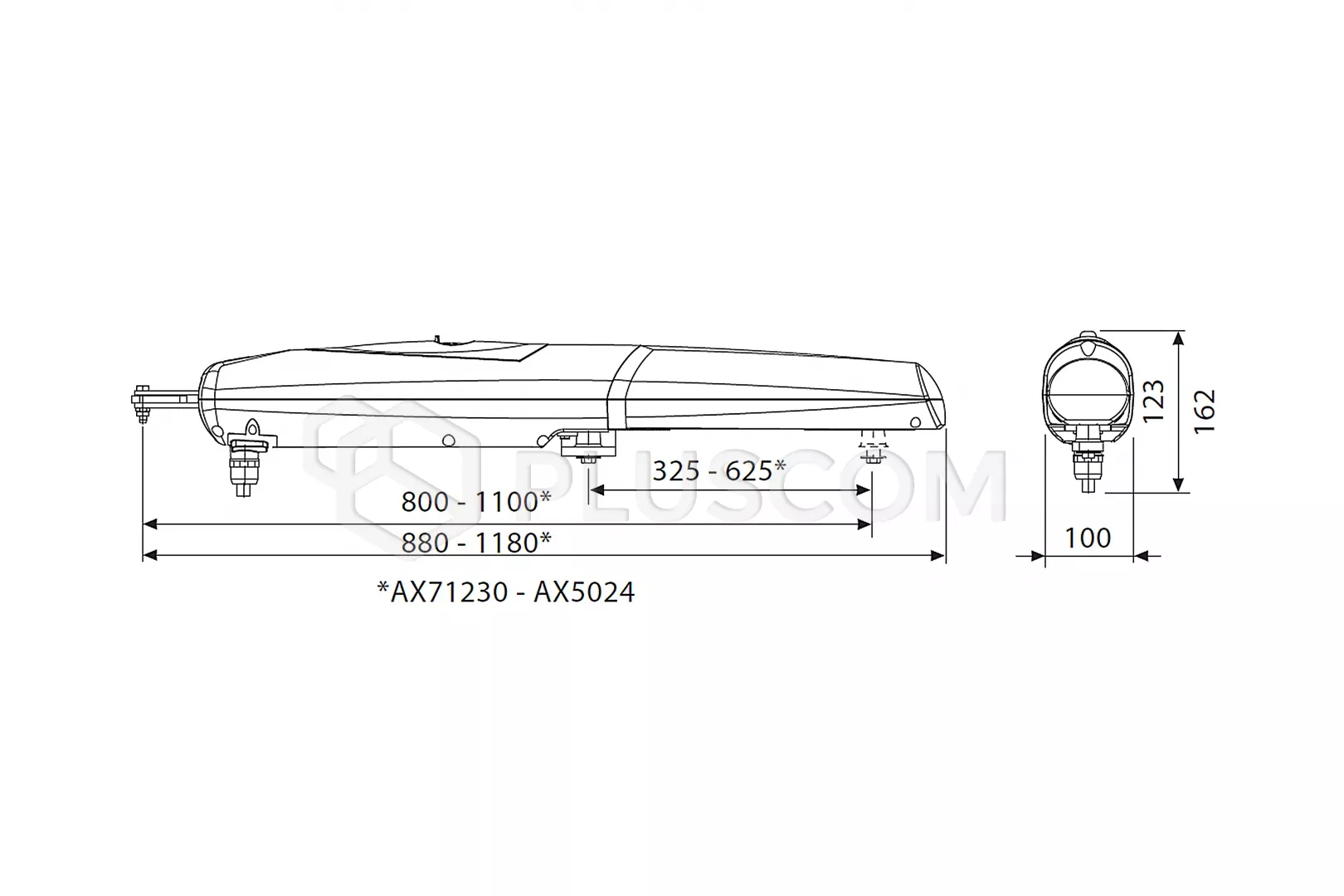

Dimnsions:

Dimnsions:


TECHNICAL PARAMETERS:
  • power supply: 230V 50/60 Hz
  • motor power: 230V
  • motor current consumption: 1.5A
  • maximum power: 175W
  • duty cycle: 50%
  • thrust: 500 ÷ 4500 N
  • opening time (up to 90 °): 20s
  • degree of protection: IP44
