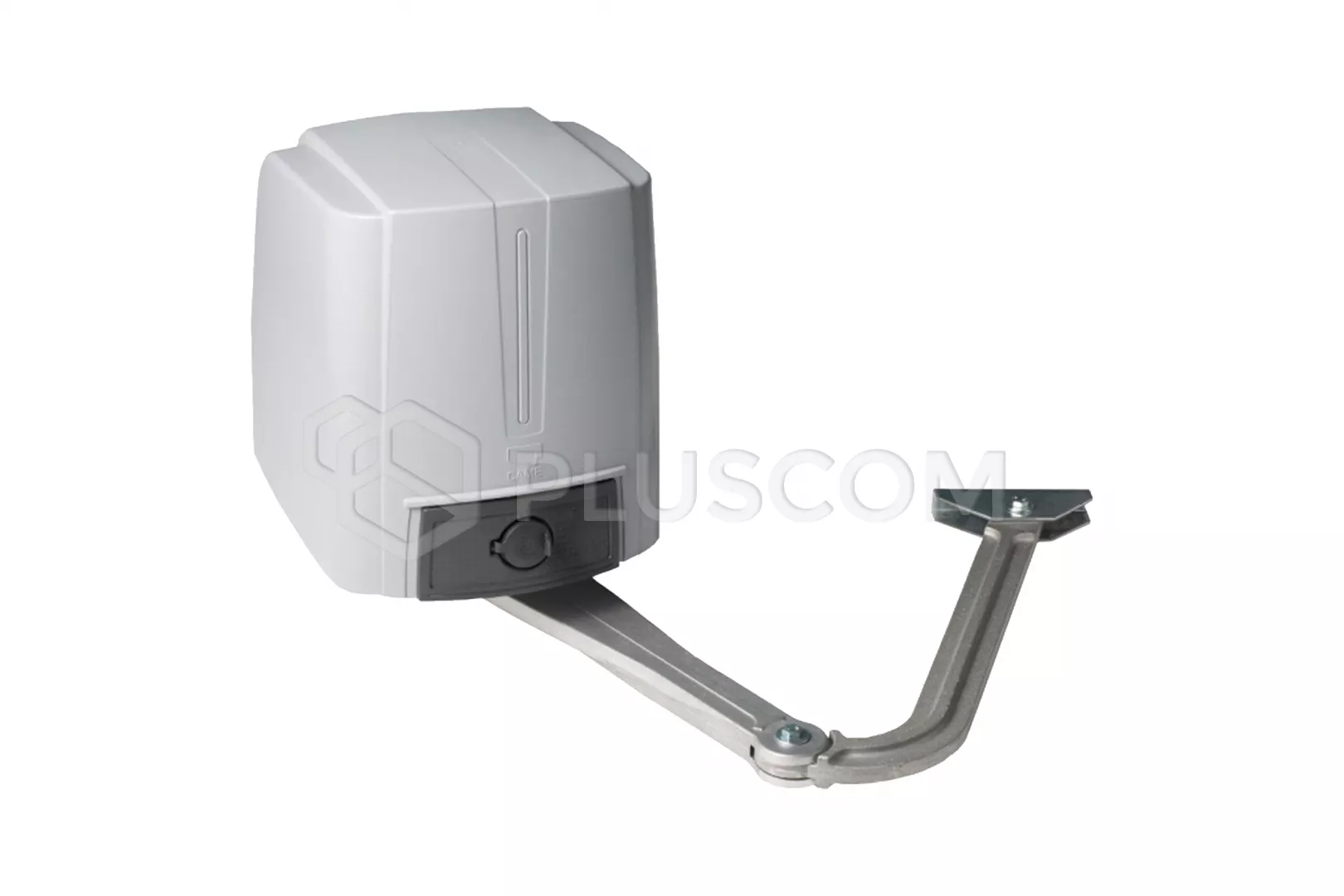

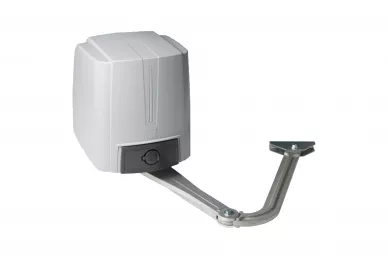

Came FA70230CB 230V actuator with control panel

685,01 EUR including 23.00% VAT
Product code: #26062
Manufacturer: CAME
  • Maximum leaf width 2.3m
  • Maximum leaf weight 200kg
  • Power supply/Motor 230V/230V
  • Open time 15 s to 90 °
  • Built-in control unit
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came DIR10 photocells synchronized up to 10m Came AF43S 433.92 MHz frequency card Came STYLO-BD Straight arm Came LOCK82 Two-cylinder electromagnetic lock 12V Came LOCK81 One-cylinder electromagnetic lock 12V Came RLB Card for supplying the system with batteries Came RGP1 Module limiting power consumption Came RSE RS485 communication card Came R800 Interface Came DIR30 photocells synchronized up to 30m

CAME FA70230CB - actuator for swing gates 2.3m/200kg

DRIVE PURPOSE

The CAME FA70230CB folding arm actuator is designed for automation gates with leaf length and weight:
  • 1m / 300kg
  • 1.5m / 250kg
  • 2m / 215kg
  • 2.3m / 200kg
Suitable for mounting on posts with a width of 20 cm.

It is equipped with a multifunctional control unit that can be connected all possible safety and control devices.
The construction of the actuator and the broken arm make the actuator a perfect match with architect of the gate, and above all, it does not require any modifications to the posts. Actuator has limit switches, no stops are required to be mounted in backing either on the opening or on the closure. The actuator has been designed to to be ready for operation even in critical weather conditions.

Actuator features:
  • limit switches built into the actuators enable quick and easy precise regulation of the opening and closing points of the sash
  • possibility of automatic gate closing
  • gate stop with remote control
  • fixed gate protection, open / close commands are ignored if there is an obstacle in the gate clearance
Fast requires very little space and is easy to install on the gate posts. In the event of a power failure, the actuators are equipped with a convenient mechanism disengaging.

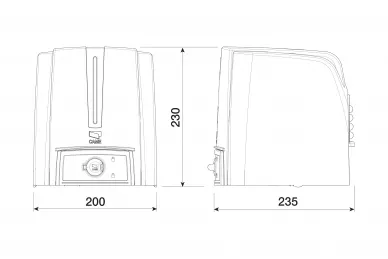

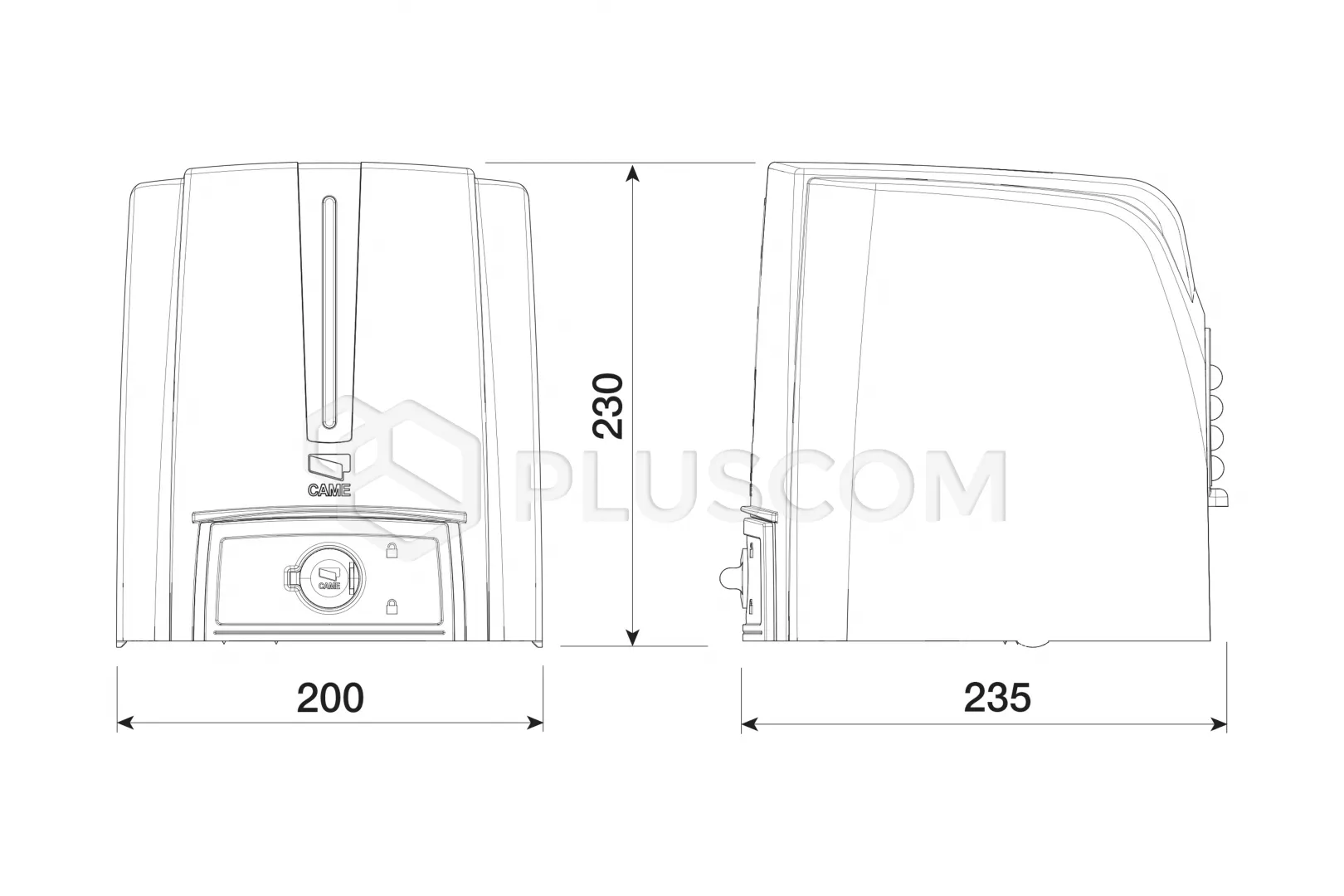

Dimensions:

Dimensions:


TECHNICAL PARAMETERS:
  • power supply: 230V 50/60 Hz
  • motor power supply: 230V AC
  • motor current consumption: 1.4A
  • maximum engine power: 160W
  • opening time (up to 90 °): 15s
  • working temperature: -20 ° C ~ 55 ° C
  • degree of protection: IP54
  • dimensions: 200x230x235mm
  • weight: 12.7kg

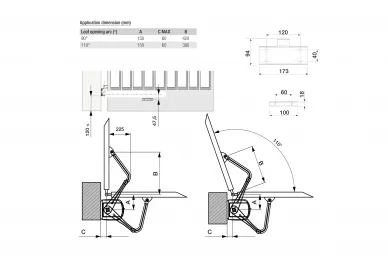

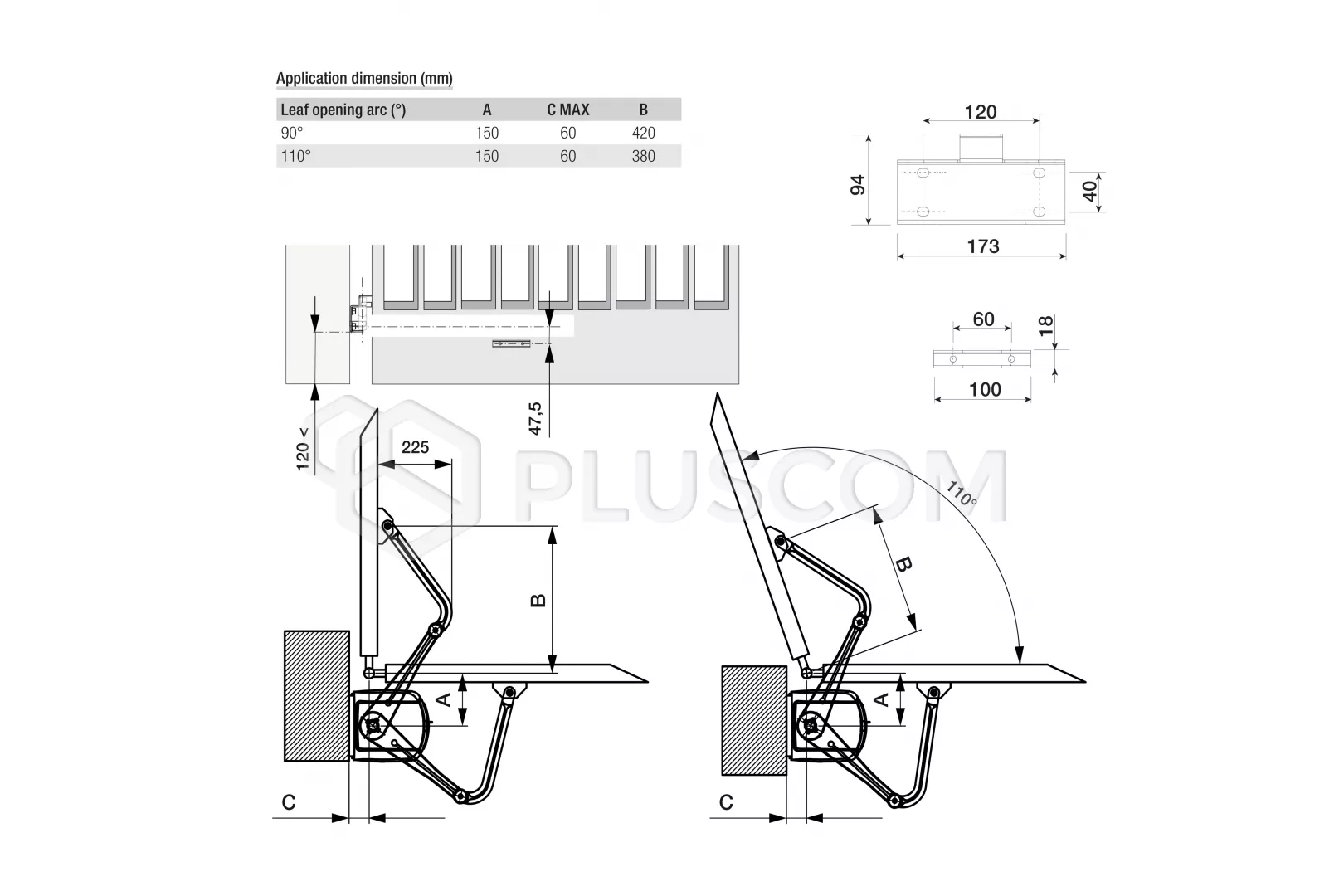

Determining the assembly dimensions:

Determining the assembly dimensions:
