Came A18230 230V actuator wing up to 2.2m /200kg

509,58 EUR including 22.00% VAT
Product code: #26004
Manufacturer: CAME
  • Gate weight up to 200kg, lenght up to 2.2m
  • Motor power supply: 230V
  • Opening time (up to 90 °): 19s
  • The structure is made of aluminum
  • Connection of gearmotors via one 3-wire or 4-wire cable
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came DIR30 photocells synchronized up to 30m Came DIR20 photocells synchronized up to 20m Came DIR10 photocells synchronized up to 10m Came AT04EV 4-channel remote control ATOMO series Came TOP-A433N Antenna Came AF43S 433.92 MHz frequency card Came ZF1N Control unit for double-leaf gates Came ZA3P Control unit for double-leaf gates Came DIR-LN Column for DIR photocells 0.5m black Came DIR-L Column for DIR photocells 0.5m silver

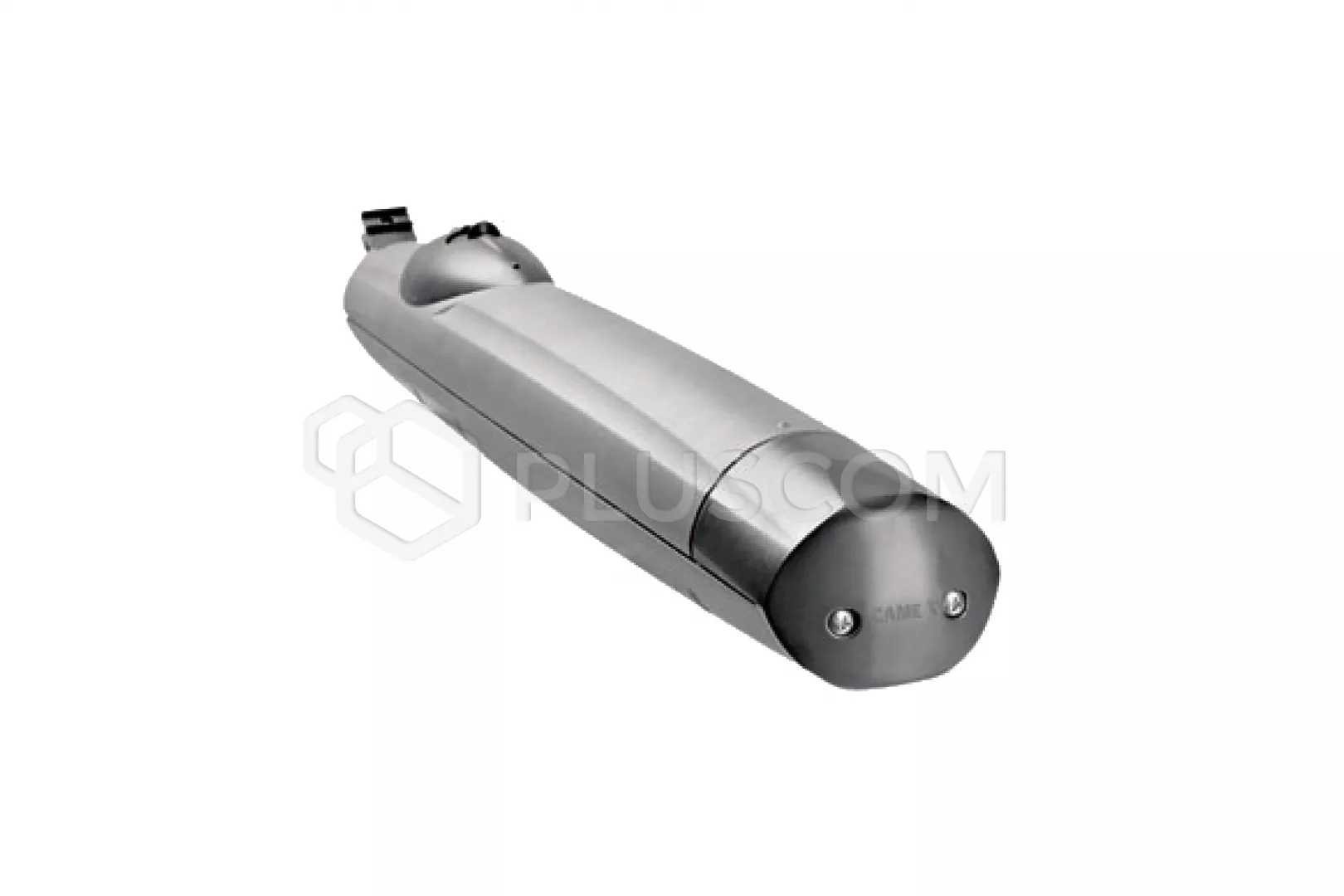

CAME A18230 Gearmotor for single or double-leaf gates up to 2.2m


Self-locking electromechanical actuator designed for gates with a leaf length of up to 2.2 m and 200 kg. Actuator has an easier connection, because one three-wire or four-wire cable is enough to connect the gearmotors.
The drive combines innovative technical solutions with the most modern electronics.

PRODUCT ADVANTAGES
  • motor power supply: 230V
  • unlocking system with unlocking key
  • easier connection of gearmotors, one three-wire cable is enough
  • structure made of aluminum
  • worm screw protected by dedicated cover
  • emergency operation in case of power failure
  • self-diagnosis of security devices

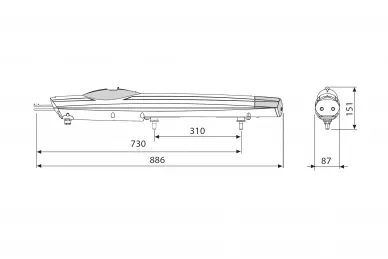

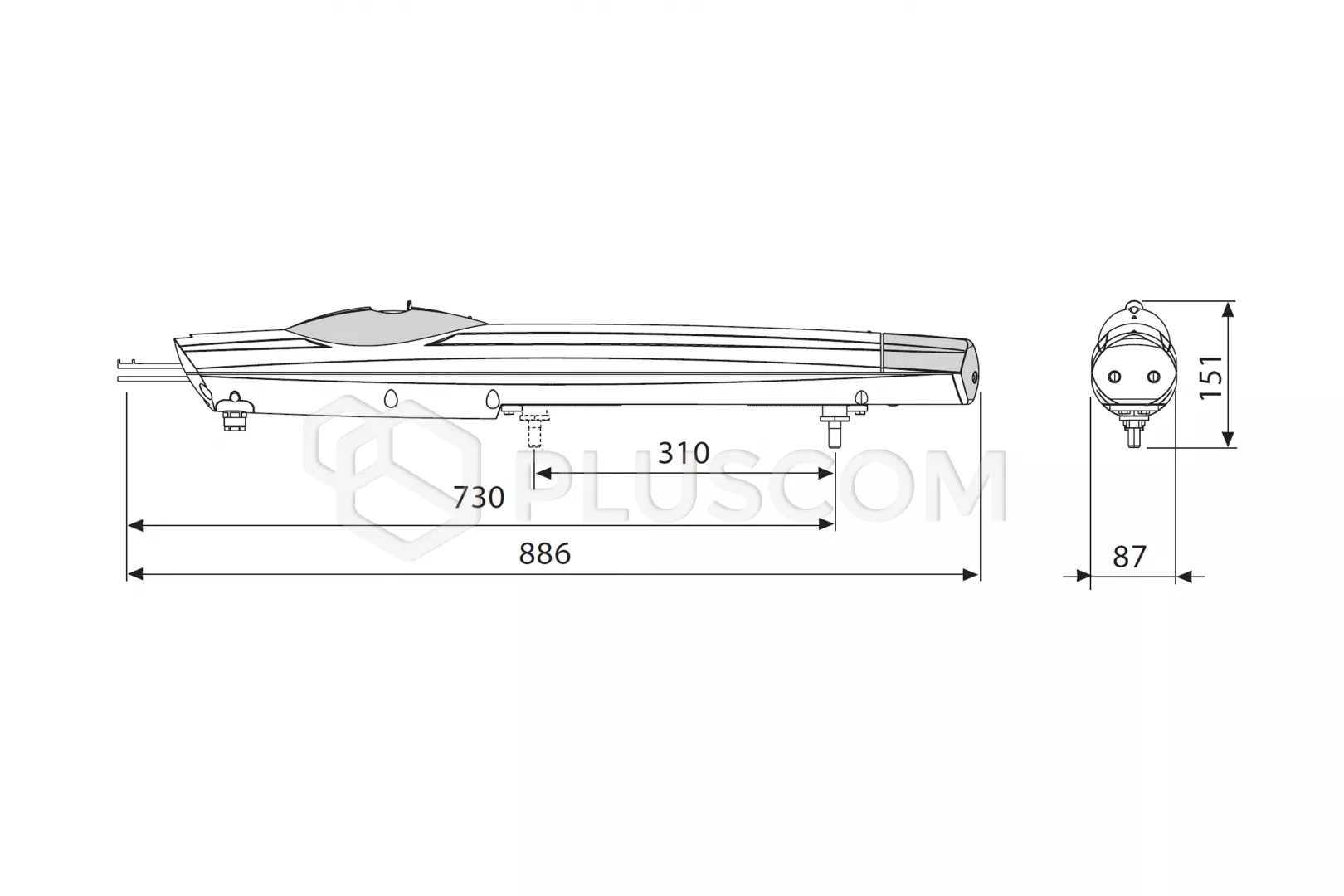

Dimensions:

Dimensions:


TECHNICAL PARAMETERS:
  • power supply: 230V 50/60 Hz
  • motor power supply: 230V
  • motor current consumption: 1.2A
  • maximum power: 80W
  • duty cycle: 50%
  • thrust: 400 ÷ 2000 N
  • opening time (up to 90 °): 19s
  • degree of protection: IP44
  • dimensions: 886x151x87mm
