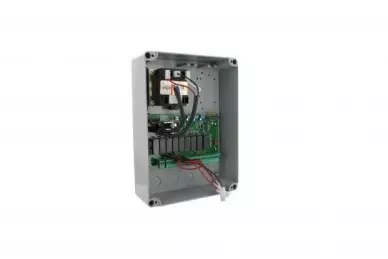

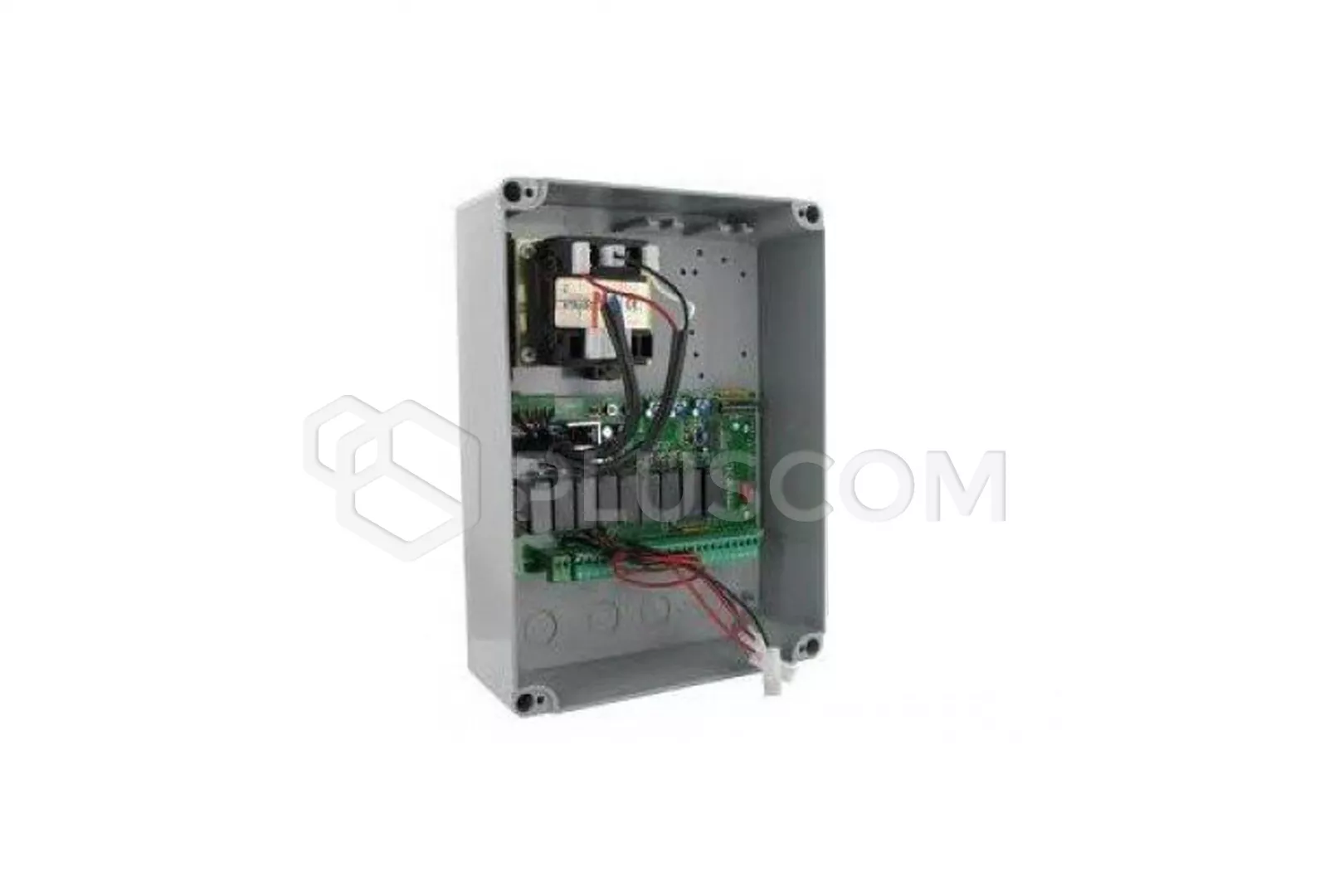

CAME ZA3P Control unit for double-leaf gates

The ZA3P control unit for double-leaf gates provides a number of solutions and functions tailored to the specific requirements of the user. It is equipped with two-channel radio decoder and is supplied with 230V AC.
It enables the extension of the installation with the necessary control accessories and safety devices such as photocells, flashing light, electric lock, card frequencies, antenna, frequency card or remote controls. The total power of accessories must not exceed 20 W.
ZA3P has an input for two lines of photocells and an output for an electric lock. All connections are protected by fuses.
It has the function of managing limit switches and speed regulation braking.

It supports ATI, FAST, FERNI, FROG and KRONO series actuators.

The control board offers control and use of the following function:

• auto close on command to open
• warning light pre-flashing
• obstacle detection with the gate stopped in any location
• motor torque adjustment
• reverse movement in initial opening phase
• braking in 10 seconds with adjustable speed
• management of limit switches
• control functions:
• • open / close
  • opening / closing in TOTMAN mode (present operator)
  • partial opening (WICKET function)
  • STOP STOP
• Regulations:
• • auto close time
  • M2 actuator closing delay
  • working time

TECHNICAL DATA

• Power supply: 230 V 50/60 Hz
• Maximum power: 600 W
• Standby current consumption: 60 mA
• Maximum total power of 24V accessories: 20W
• Fuses:
• • Electronic board (mains powered): 5A
  • Controls and accessories: 1A
  • Accessories: 1.6A
  • Electric lock: 3.15A
• Housing material: ABS
• Degree of protection: IP54
• Working temperature: -20 ° C ~ 55 ° C

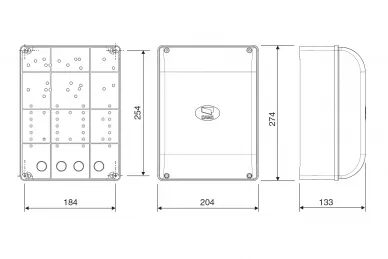

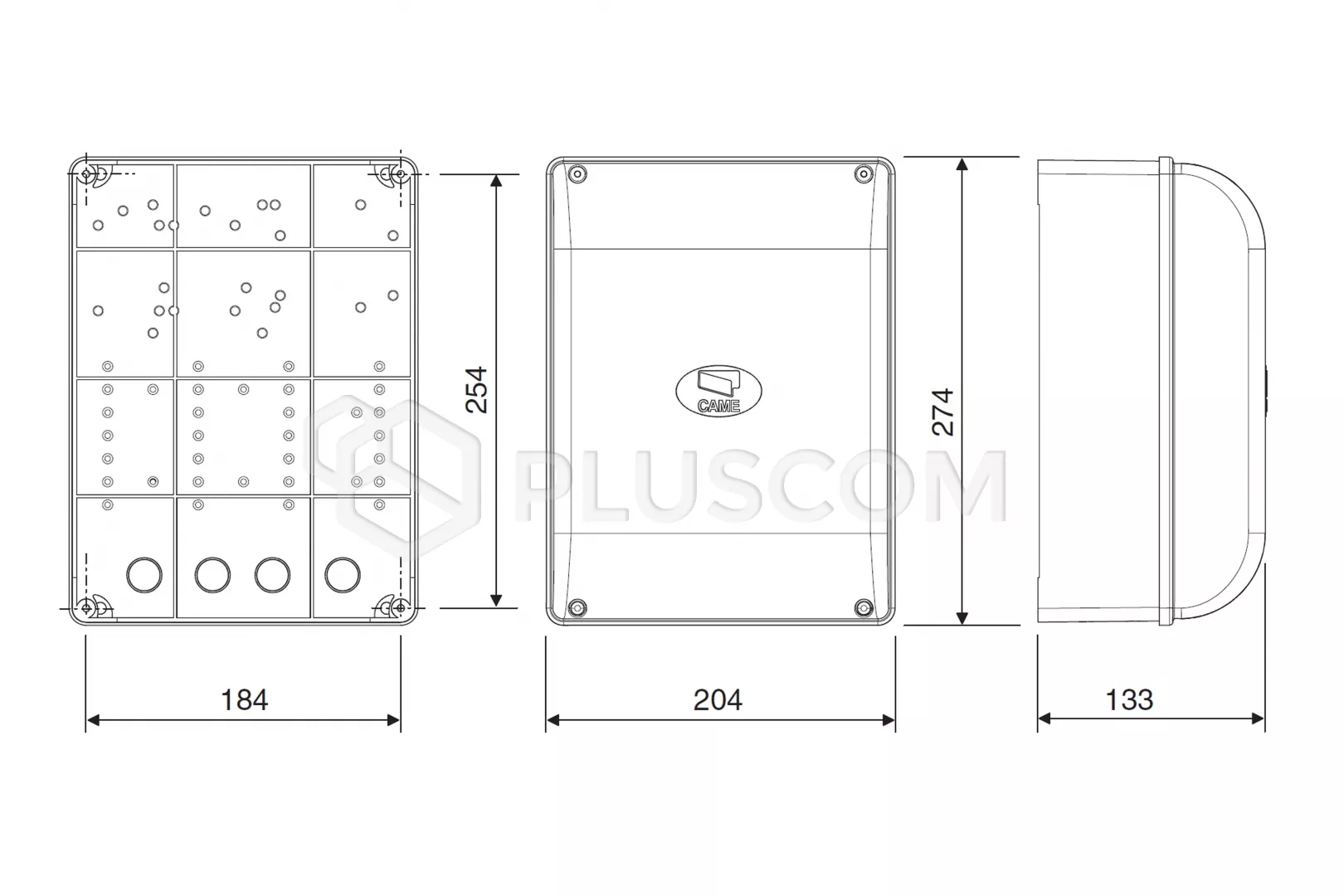

• Case dimensions: 204 × 274 × 133 mm
