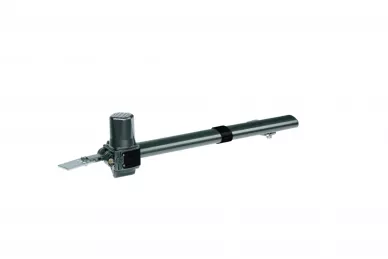

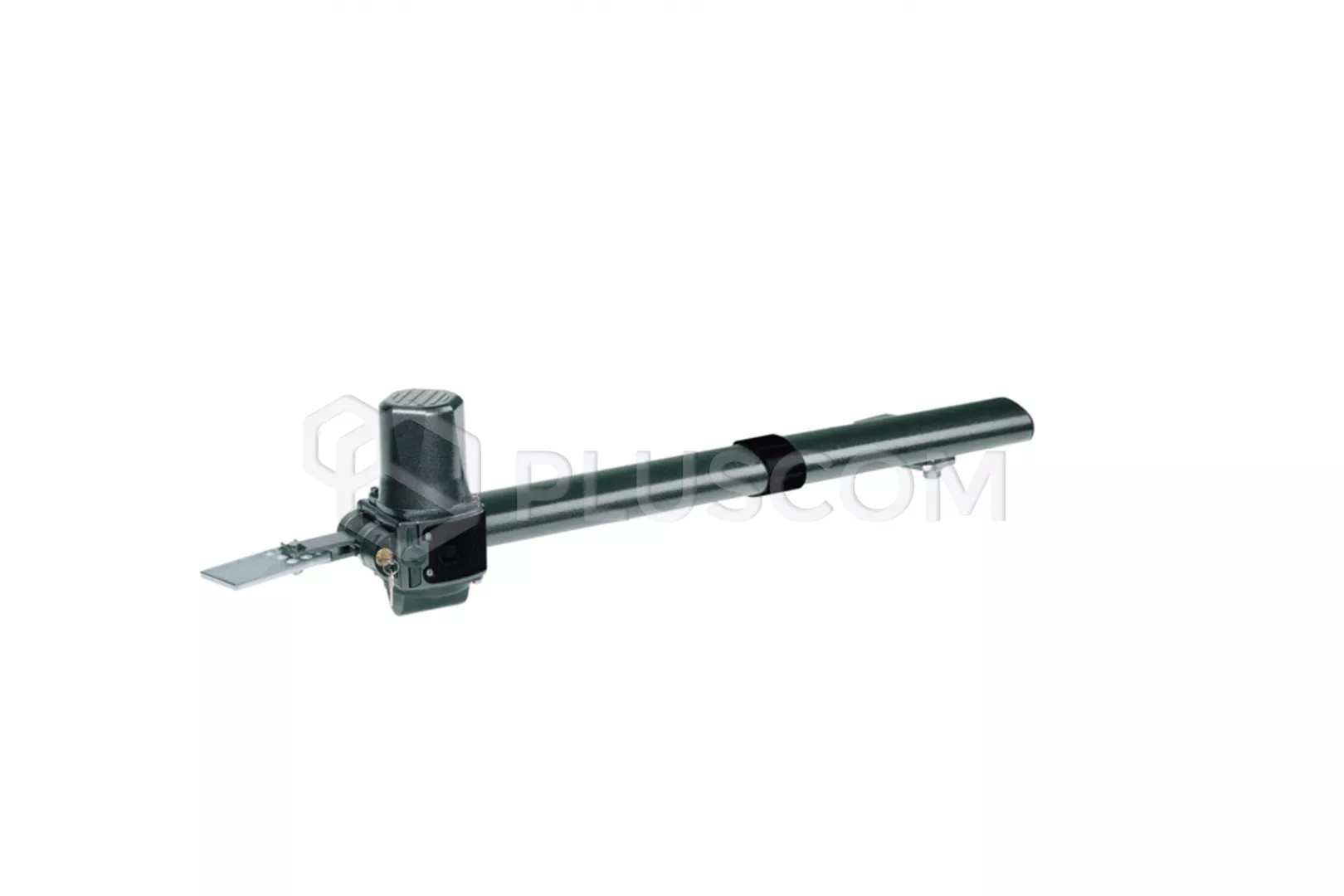

Came KR512S 230V actuator wing up to 5m/400kg

CAME KR512S Gearmotor for single or double-leaf gates up to 5m

Self-locking left-hand electromechanical actuator with built-in limit switches.
Thanks to its form and special finish, KRONO adapts to many architectural solutions, also the most sophisticated and exclusive. The special aluminum structure ensures durability and long life operation.

Application range:

• 5m / 400kg
• 4m / 500kg
• 3m / 600kg
• 2.5m / 800kg
• 2m / 1000kg

The electromechanical motor does not require periodic lubrication and has been designed to be ready for operation even in critical conditions weather.

LOCKING LOCK
In the event of a power cut, the drive ensures that the door is locked. If There is no electricity when the leaf is in motion or when the gate is open, practical a key-secured unlocking knob allows manual movement wing.

OPENING UNDER CONTROL

• the gate can be stopped by pressing the remote control
• function of partial opening of the gate to allow passage pedestrians
• Signaling display for function programming and self-diagnosis safety devices connected to the installation (only with the ZM3 control unit) before each move

TECHNICAL PARAMETERS:

• power supply: 230V 50/60 Hz
• motor power supply: 230V
• power consumption: 1.1A
• maximum power: 130W
• duty cycle: 30%
• thrust: 400 ÷ 3000 N
• opening time (up to 90 °): 30s
• degree of protection: IP54
• working temperature: -20 ° C ~ 55 ° C

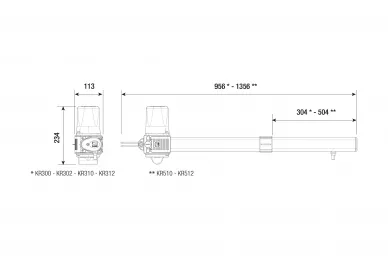

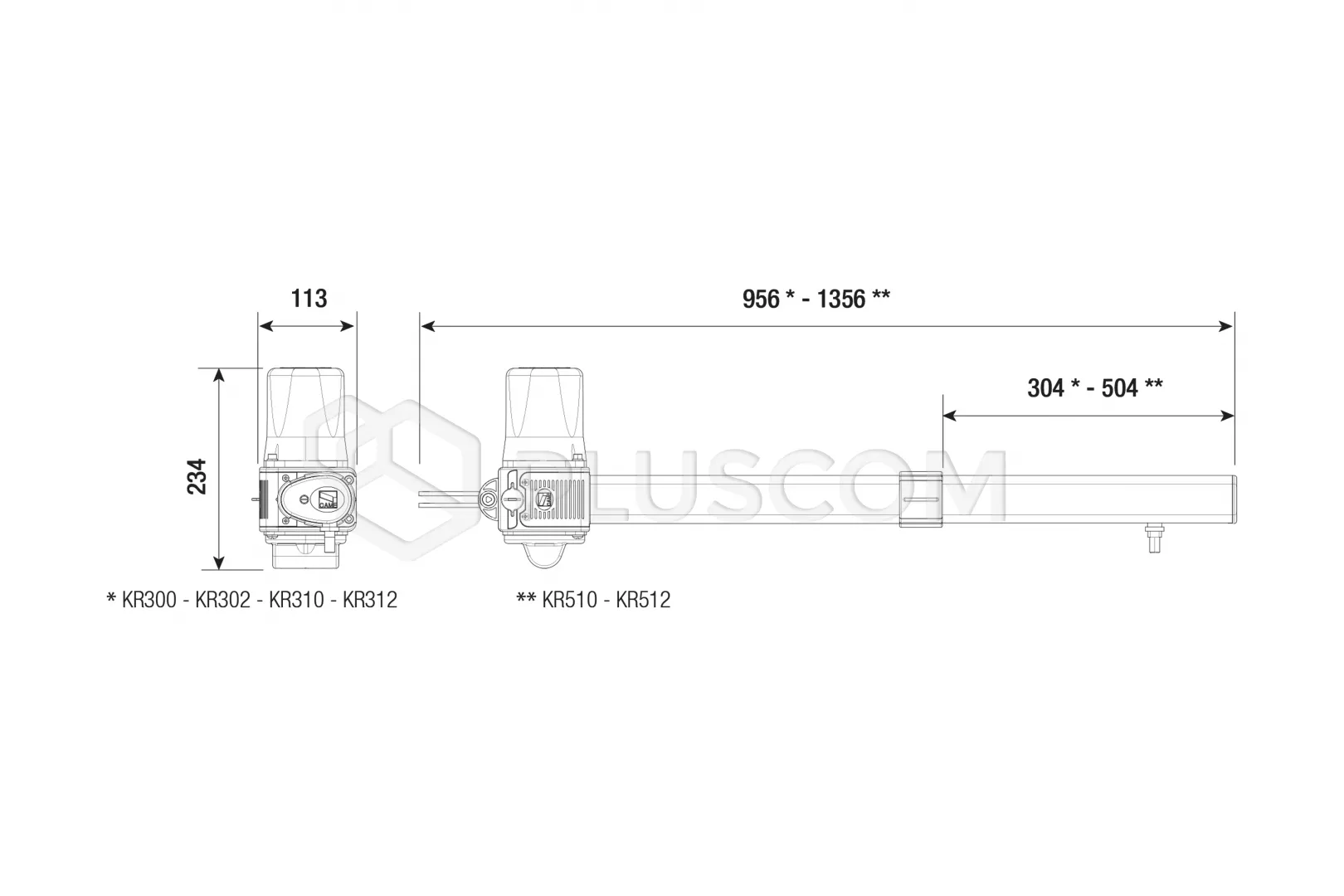

• dimensions: 1356x234x113mm
• weight: 12kg
