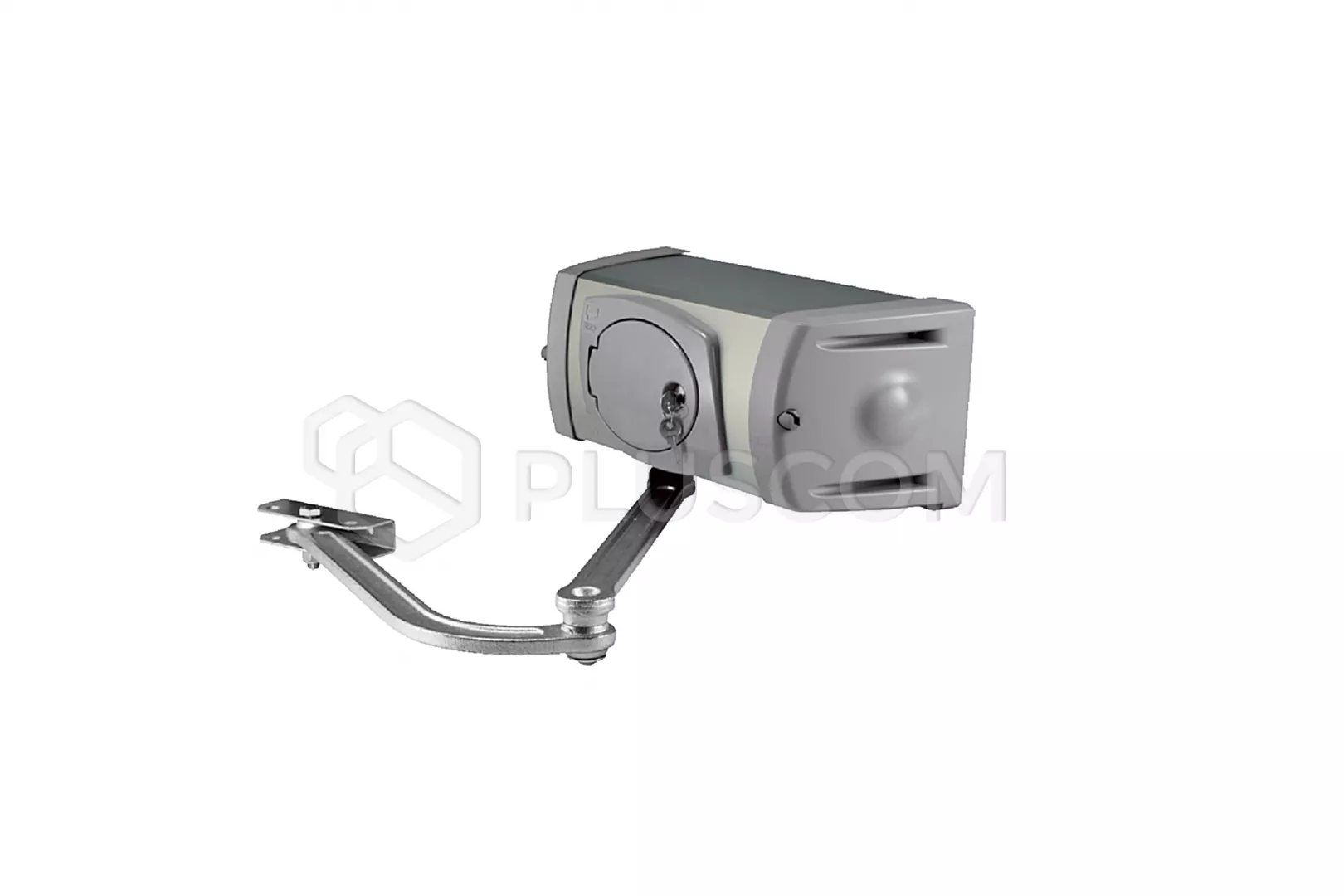

Came FE40230 230V actuator without control panel

CAME FE40230 swing gate actuator for 4m per wing

PURPOSE OF THE DRIVE
The CAME FE40230 folding arm actuator is designed for automation gates with leaf length and weight:

• 2m/800kg
• 2.5m/600kg
• 3m/500kg
• 4m/400kg

The FERNI drive is designed for installation on gate leaves up to 4 m long is located between large columns, and the clearance between the face of the column and the gate hinge is quite large and is up to 30 cm.

Installation does not require any construction or removal work wings, offering maximum customization for everyone installation needs. The solution is provided standard with articulated arm, but also available special straight arm for installation in case of presence walls or fences near the gate.

FEATURES:

• Elegant and modern housing made of durable anodized aluminum
• Increased resistance to unfavorable weather conditions
• Declutch mechanism door
• Safe management of leaf movement and deceleration stages thanks to encoder technology that precisely detects the presence of possible obstacles along the movement path
• Double face limit switch system

SIMPLIED INSTALLATION

The extreme versatility and special properties of it automation system ensures simplicity and practicality and precision at every stage of installation work, mainly in the case of existing structures:

• Just one cable with four wires for power management and slowdown
• Storing remote controls with different codes (up to 250 users)
• Control panel equipped with a display for programming functions where provided

TECHNICAL DATA:

• Power supply: 230V 50/60Hz
• Motor power supply: 230V 50/60Hz
• Motor current consumption: 1.2A
• Maximum engine power: 140W
• Duty cycle: 30%
• Thrust force: 540Nm
• Thermal protection engine: 150°C
• Opening time (up to 90°): 34s
• Operating temperature: - 20°C ~ 55°C
• Protection rating: IP44
• Dimensions: 160x391x185mm
• Weight: 13.7kg
